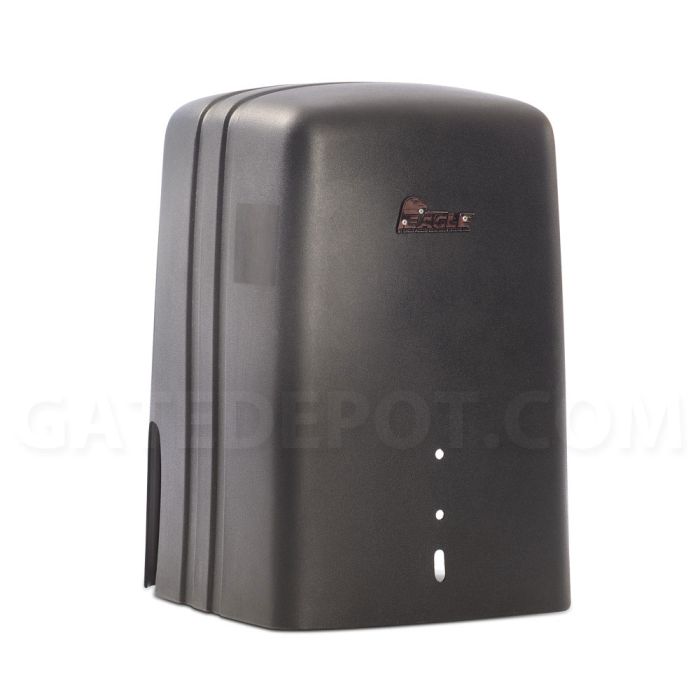

Eagle 2000 APT Slide Gate Operator
Choose 1 HP, 2 HP or Dual Motors
• 50' x 2,500 Lbs / 50' x 3,500 Lbs w/ 2HP
• 115VAC Power Source / 115VAC Operating Voltage
• Opens ~ 12" per Second
• Continuous Duty
• Includes Photo Eye & Receiver
• 5-Year Commercial/7-Year Residential Limited Manufacturer Warranty
• MADE IN USA
From $1,984.00
To $7,449.00
SKU
EGL-2000-apt-bundle
Product Details

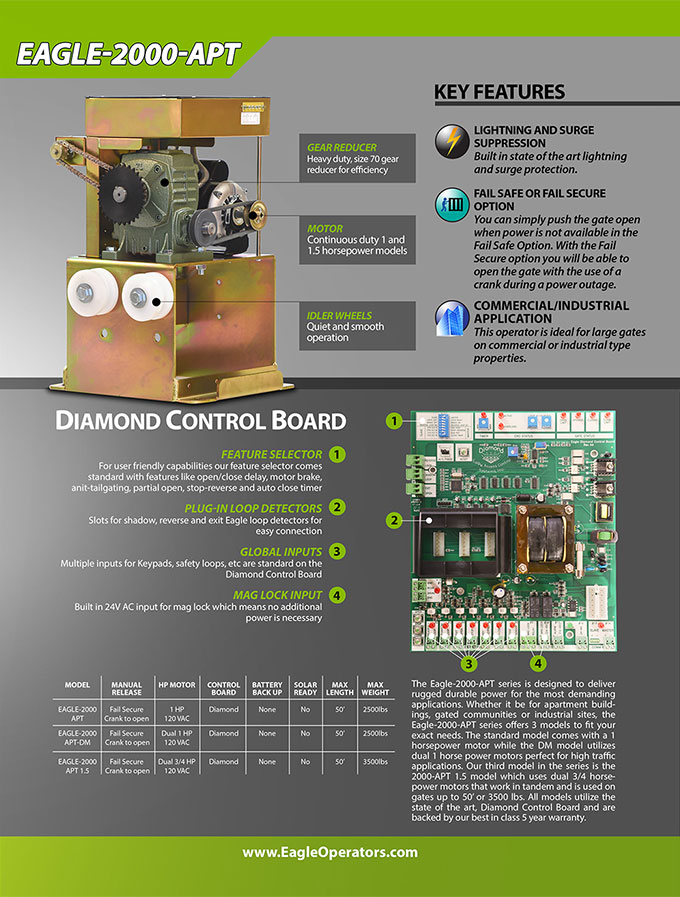

The Eagle-2000-APT series is designed to deliver rugged durable power for the most demanding applications. Whether it be for apartment buildings, gated communities or industrial sites the Eagle-2000-APT series offers 3 models to fit your exact needs. It uses the state of the art Diamond control board, the most feature packed and installer friendly control board in the industry. It also comes equipped with 20 feet of nickel plated chain and a no weld chain kit for easy installation. All models are backed with our best in class 5 year Manufacturer Warranty.
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.
Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- One Pass (No Tailgate)
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Partial Open
- Stop-Reverse
- Auto-Close Timer (1-60 sec.)
- UL 325 and UL 991
- ETL Listed
- Class I, II, III & IV
- 5-Year Limited Manufacturer Warranty (Commercial)
- 7-Year Limited Manufacturer Warranty (Residential)
- Drive Chain: #40 Nickel Plated (20')
- Gear Reducer: Size 50
- Cover: All-Weather/UV Resistant (HDPE)
- Chassis: 1/4" Zinc Plated Steel to Resist Corrosion
- Auxiliary 120 VAC Power Outlet (2)
- Eagle-2000-APT 1 HP Continuous Duty AC 115 VAC @ 60 HZ 10.5 AMP
- Eagle 2000-APT-1.5HP Dual 3/4 HP Continuous Duty AC Synchronized Operation 115 VAC @ 60 HZ 16.6 AMP
- Eagle 2000-APT-DM Dual 1 HP Continuous Duty AC /Motor 1 to Open / Motor 2 to Close 115 VAC @ 60 HZ 10.5 AMP
- Optional Power II (1HP) Battery Backup - Provides up to 40-80 Cycles
- No-Weld Chain Brackets
- UHMW Silent Idler Wheels
- Audio Alarm
- Pre-Wired Receiver Terminal
- Maximum Gate for 2000-APT and 2000-APT-DM: 50 ft & 2500 lbs
- Maximum Gate for 2000-APT-1.5: 50 ft & 3500 lbs
- 12" per second travel
- Rated Continuous Duty
- Dimensions: 26" (h) x 18" (w) x 17" (d)
- MADE IN USA
