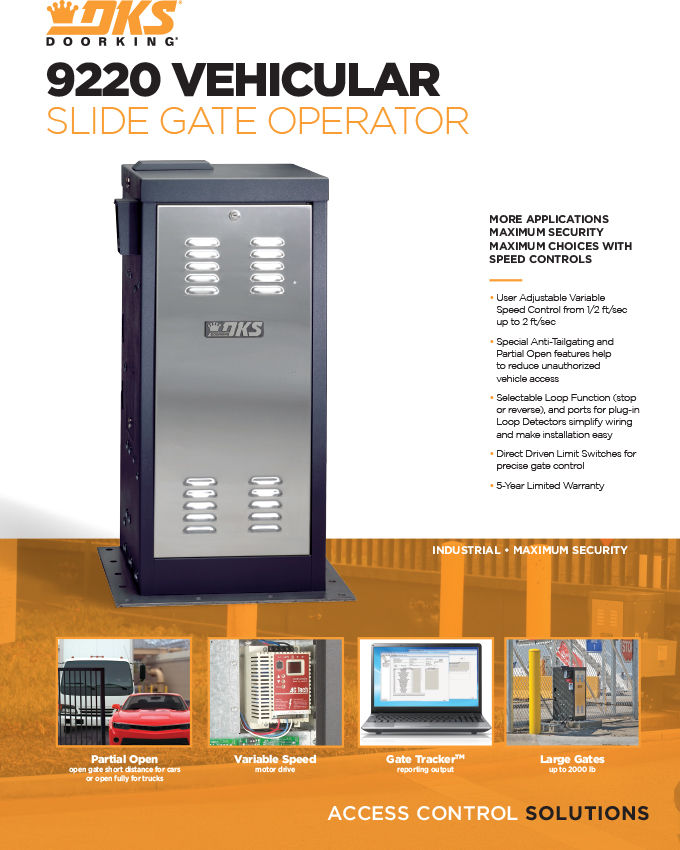

DoorKing 9220 Variable Speed Slide Gate Operator - #60 Chain
From $5,781.00
To $30,525.15
Product Details
DoorKing's Maximum Security operators are designed to operate vehicular slide gates in limited (Class III) and restricted (Class IV) applications only — such as industrial locations, loading docks, factories, airport security areas, sea ports, etc.; these operators must never be used in applications serving the general public. Because of the need to prioritize security in these applications, these operators are designed for fail-secure operation and require manual operation to open the gate in the event of a power outage. These operators are designed so that they can easily be mounted in the front, center or rear of the gate without any costly and time consuming field modifications; center mounting the operator requires the pedestal mounting base (optional on 9210, 9220). To enhance security, these operators feature an anti-tailgating circuit and an adjustable partial open feature to help prevent unauthorized vehicle access. In addition, speed controller options (except 9210) allow the user to adjust the gate speed from 1/2 ft/sec up to 4 ft/sec. and provides slow-start and slow-stop funcitons as well. An Emergency Close feature is available on some models which will close the gate at 4 ft/sec. This assures your security gate is open the absolute minimum amount of time necessary.
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

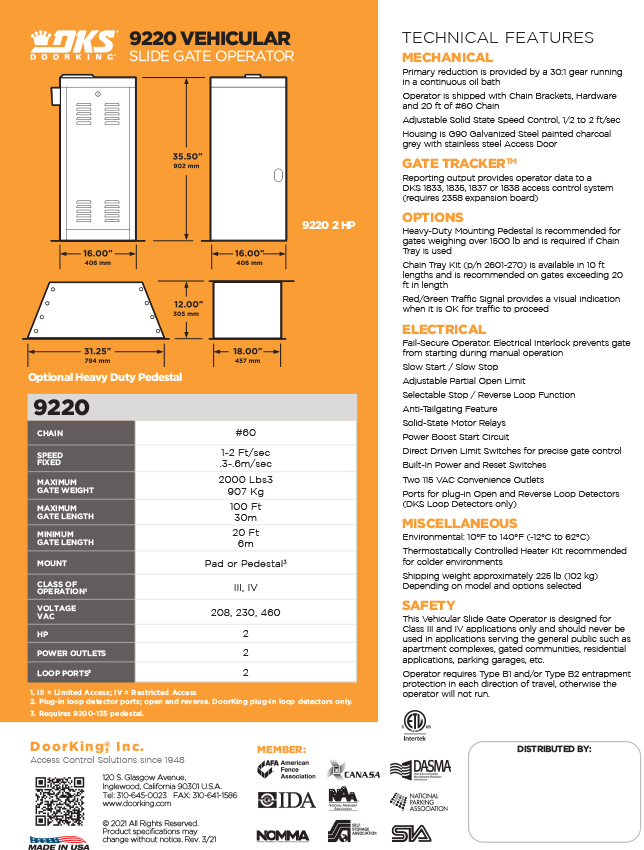

Features

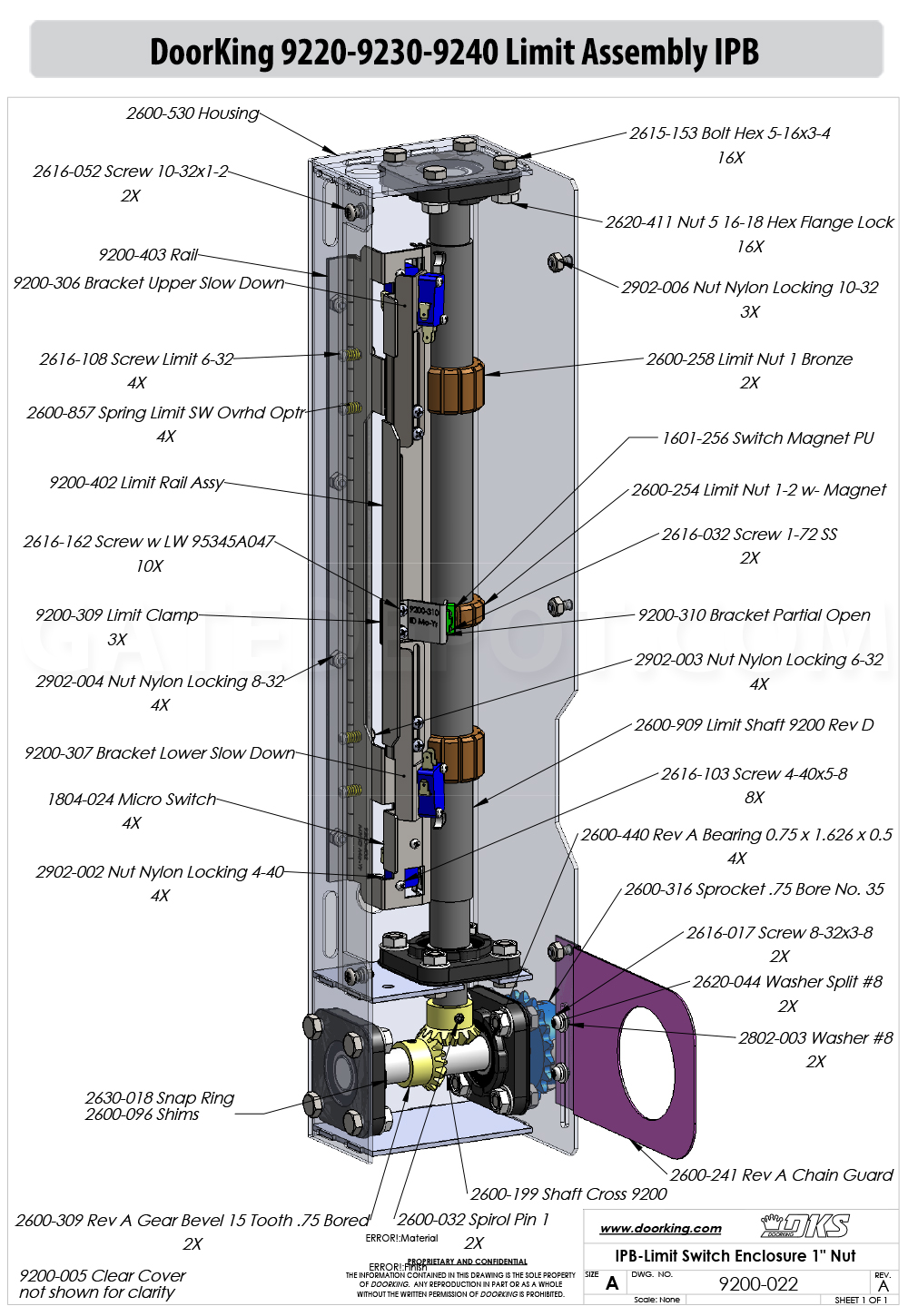

- Direct driven limit nuts
- Anti-tailgating feature
- Adjustable mid-stop
- Gate tracker reporting output
- Ports for plug-in loop detectors
- Two convenience outlets
- Fail-secure operation includes crank for manual operation
- Programming switches
- Built-in reset switch
- Built-in power On/Off switch
- Maximum gate length 75-feet
- Maximum gate weight 2000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
- Adjustable solid state speed control, 1/2 to 2 Ft./sec
- Slow start / slow stop function
- 30:1 gear reduction running in a continuous oil bath
- 2 HP continuous-duty motor
- 208, 230 VAC single or three-phase
- Operator is shipped with chain brackets and 20-feet of #60 chain
- Class III and IV applications only
- ETL Listed
- Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator
- MADE IN USA
Options
- Heavy-duty pedestal mounting stand, 9210, 9220. (Recommended for gates over 30-feet to allow use of a chain support rail)
- Stop - Go traffic signal
- Plug-in loop detectors
- Heater kit for cold environments
- Surge suppressors
