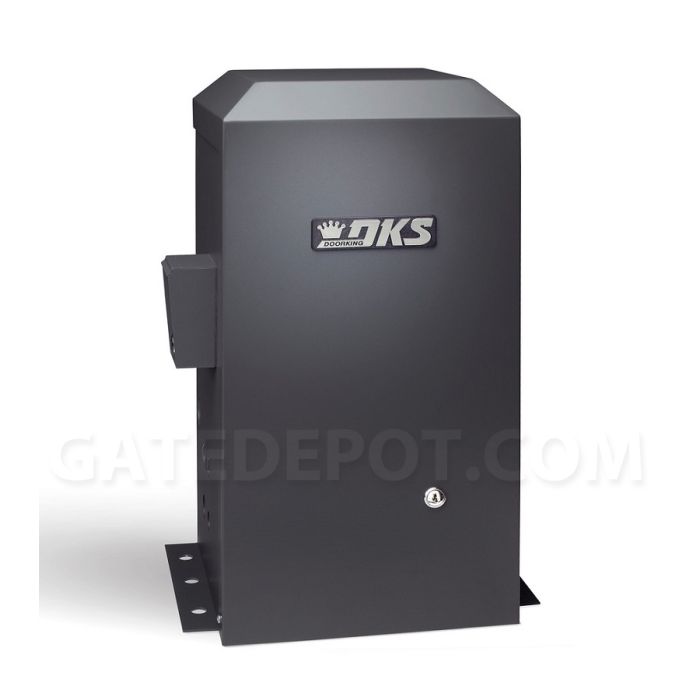

DoorKing 9100 Slide Gate Operator

Be the first to review this product

Choose Poly or Metal Cover • 30' x 1,000 Lbs • 115VAC Power Source / 115VAC Operating Voltage • Opens ~ 10" per Second • Continuous Duty • Poly Cover Model includes Receiver & (1) Transmitter • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time

From $1,975.00

To $4,812.15

SKU

DKS-9100-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize DoorKing 9100 Slide Gate Operator

DoorKing 9100 Slide Gate Operator

For Bi-Parting Gates, Order 2 Operators

DoorKing 9100-380 Slide Gate Operator - Metal Cover $1,975.00

• Metal Cover • 30' x 1,000 Lbs • 115VAC Power Source / 115VAC Operating Voltage • Opens ~ 10" per Second • Continuous Duty • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time

GD# DKS-9100-380 MFR# 9100-380

Quantity

DoorKing 9100-385 Slide Gate Operator - Poly Cover w/ Receiver & Transmitter $1,975.00

• Poly Cover w/ Receiver & (1) Transmitter • 30' x 1,000 Lbs • 115VAC Power Source / 115VAC Operating Voltage • Opens ~ 10" per Second • Continuous Duty • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time

GD# DKS-9100-385 MFR# 9100-385

Quantity

Secondary Entrapment Prevention Devices - 2 REQUIRED

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached - 2 REQUIRED
See Accessories for more Sensing Edge options

Seco-Larm E-931-S50RRGQ Enforcer IR Reflective Photo Eye - 50' $77.15

• 50 Ft. Range • 12-30V AC/DC • Weatherproof IP55 Housing • ETL UL325-2016 Compliant • Includes Hooded Reflector • 1-Year Manufacturer Warranty

GD# SCL-e-931-s50rrgq MFR# E-931-S50RRGQ

Quantity

Remotes

LiftMaster 850LM-MC Receiver - 3 Channel / Universal $68.50

• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty

GD# LFM-850lm-mc MFR# 850LM-MC

Quantity

LiftMaster 811LMX-MC Transmitter - 1 Button $17.50

• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch

GD# LFM-811lmx-mc MFR# 811LMX-MC

Quantity

Liftmaster 893MAX-MC Transmitter - 3 Button $41.75

• 3-Button • Universal DIP Style • 315/390 MHz • Security+ 315/390 / Security+ 2.0

GD# LFM-893max-mc MFR# 893MAX-MC

Quantity

Wireless Keypad

Liftmaster KPW5-MC Wireless Keypad $144.75

• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys

GD# LFM-kpw5-mc MFR# KPW5-MC

Quantity

Liftmaster KPW250-MC Wireless Keypad - Universal $243.25

• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys

GD# LFM-kpw250-mc MFR# KPW250-MC

Quantity

Exit Wand

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead $138.75

• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA

GD# EMX-2805-1 MFR# EMX-2805-1

Quantity

Additional Chain

DoorKing 2600-442 Chain - #40 / Nickel Plated 20' $130.50

• #40 Chain • 20' • Nickel Plated • Includes Two Master Links • 3-5 Day Lead Time

GD# DKS-2600-442 MFR# 2600-442

Quantity

* Required Fields

Your Customization

DoorKing 9100 Slide Gate Operator

In stock

Qty

$1,975.00

Summary

Overview

Product Details

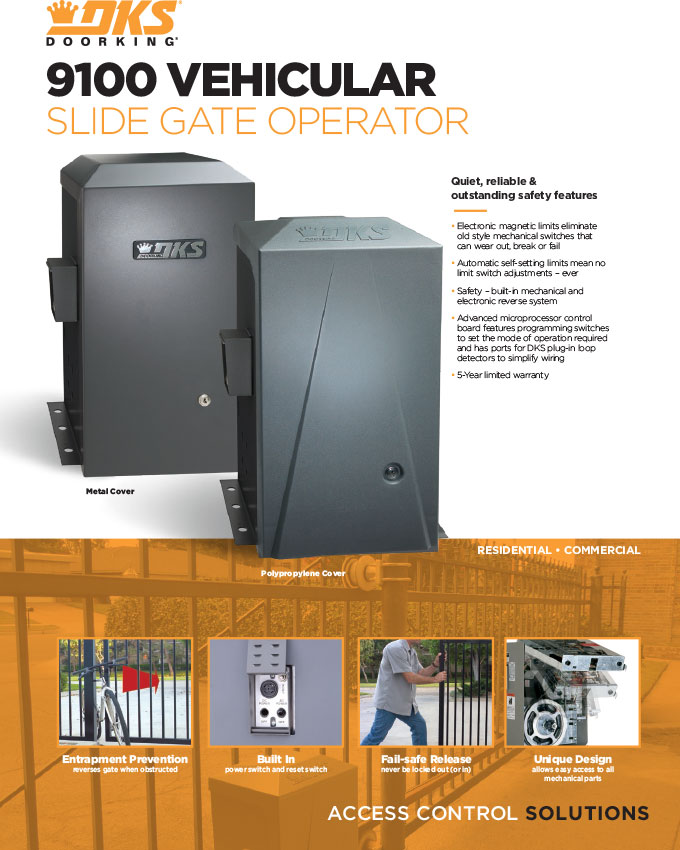

DKS 9100 Slide Gate Operator provides durability through high-cycle usage, all in a solid design. The innovative fail-safe design of these Operators significantly reduces the chance of injury or entrapment and makes these Operators the safest residential Slide Gate Operator in the market today. Designed with versatility in mind, the 9100 Operators can be configured for front, center or rear drive applications and can be pad or post mounted. They are available with a metal or polypropylene (Poly) cover. Operators with the Poly Cover include a MicroPlus RF Kit (1 TX + 1 REC).

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

Features

Self-adjusting, no maintenance magnetic limits
Partial-open feature
Anti-tailgating feature
Gate tracker reporting output
Ports for plug-in loop detectors
Two convenience outlets
Fail-safe release (fail-secure optional)
Programming switches
Built-in reset switch
Built-in power On/Off switch

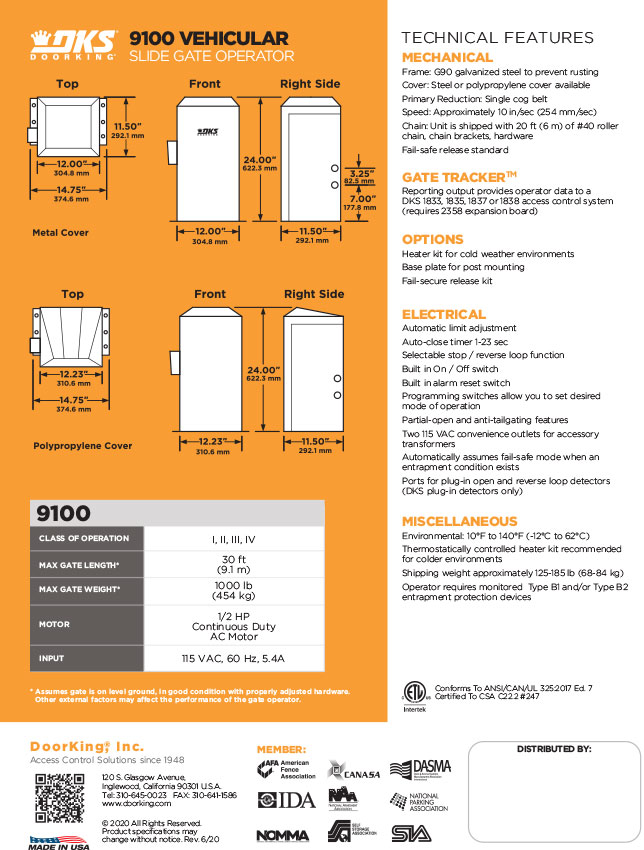

Maximum gate length 30-feet
Maximum gate weight 1000 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
1/2 HP continuous-duty motor
115 VAC, 5.4 Amps
Operator is shipped with chain brackets and 20-feet of #40 chain
Class I, II, III and IV applications
Compliant with UL 325 and 991. ETL Listed.
Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator
MADE IN USA

Options

Nickel plated chain
Plug-in loop detectors
Heater kit for cold environments
Base plate to post mount this operator (does not include posts)
Surge suppressors

Specification

Specifiction
Brand	Doorking

Accessories

Showcased Accessories

Manuals & Resources

Replacement Parts

Duragate FUSE-10 Fuse w/ Fuse Holder - 10 Amp

GD# DGT-fuse-10 MFR# FUSE-10

• 10 Amp Fuse and Fuse Holder
• For Dual Gate Operators, Install in the Master Unit
See More Details

$6.00
Duragate FUSE-7.5 Fuse w/ Fuse Holder - 7.5 Amp

GD# DGT-fuse-7.5 MFR# FUSE-7.5

• 7.5 Amp Fuse and Fuse Holder
• For 1/2 HP Single Gate Operators
See More Details

$6.00
DoorKing 1200-028 Outlet

GD# DKS-1200-028 MFR# 1200-028

• Outlet, Snap-In
• 3-5 Day Lead Time
See More Details

$13.00
DoorKing 1506-071 Entrapment Alarm Buzzer

GD# DKS-1506-071 MFR# 1506-071

• Tone Generator
• 3-5 Day Lead Time
See More Details

$53.50
DoorKing 1601-041 Toggle Switch - SPST 2 Pos

GD# DKS-1601-041 MFR# 1601-041

• Toggle Switch - SPST 2 Position
• 3-5 Day Lead Time
See More Details

$20.75
DoorKing 1702-503 Cam - 1-1/4"

GD# DKS-1702-503 MFR# 1702-503

• Cam 1.1/4
• 3-5 Day Lead Time
See More Details

$7.80
DoorKing 1812-005 Switch Push Button

GD# DKS-1812-005 MFR# 1812-005

• Switch Push Button N.O.
• 3-5 Day Lead Time
See More Details

$36.00
DoorKing 2599-100 Warning Sign

GD# DKS-2599-100 MFR# 2599-100

• Sign Warning
• 3-5 Day Lead Time
See More Details

$23.00
DoorKing 2600-053 Bearing - Thrust - 3/4" ID

GD# DKS-2600-053 MFR# 2600-053

• Bearing - Thrust
• 3/4" ID
• 3-5 Day Lead Time
See More Details

$26.50
DoorKing 2600-102 Motor Capacitor

GD# DKS-2600-102 MFR# 2600-102

• Replacement Motor Capacitor
• For 6050 / 6100
• 3-5 Day Lead Time
See More Details

$77.00
DoorKing 2600-129 Motor Assembly - 1/2 HP

GD# DKS-2600-129 MFR# 2600-129

• Motor Assembly - 1/2 HP
• For 6100 / 9100
• 3-5 Day Lead Time
See More Details

$266.00
DoorKing 2600-271 Chain Stop - #40 / #41

GD# DKS-2600-271 MFR# 2600-271

• Replacement Chain Stop - #40 & #41 Chain
• 3-5 Day Lead Time
See More Details

$32.50
DoorKing 2600-342 Clutch Pad - 4" OD

GD# DKS-2600-342 MFR# 2600-342

• Clutch Pad - 4" OD
• 3-5 Day Lead Time
See More Details

$18.25
DoorKing 2600-344 Washer - 1-1/8" OD x 3/4" ID

GD# DKS-2600-344 MFR# 2600-344

• Washer - 1-1/8" OD x 3/4" ID
• 3-5 Day Lead Time
See More Details

$8.15
DoorKing 2600-345 Washer - Hardened / 1-1/4" x 3/4" ID

GD# DKS-2600-345 MFR# 2600-345

• Washer - Hardened 1-1/4 x 3/4 ID
• 3-5 Day Lead Time
See More Details

$8.25
DoorKing 2600-429 Belt - Cogged - AX35

GD# DKS-2600-429 MFR# 2600-429

• Belt - Cogged - AX35
• 3-5 Day Lead Time
See More Details

$39.25
DoorKing 2600-439 Washer Cup - Brass

GD# DKS-2600-439 MFR# 2600-439

• Washer Cup - Brass
• 3-5 Day Lead Time
See More Details

$8.60
DoorKing 2600-446 Spring - Compression

GD# DKS-2600-446 MFR# 2600-446

• Spring - Compression
• 3-5 Day Lead Time
See More Details

$9.40
DoorKing 2600-487 Bracket - Solenoid Support

GD# DKS-2600-487 MFR# 2600-487

• Bracket - Solenoid Support
• 3-5 Day Lead Time
See More Details

$12.50
DoorKing 2600-533 Cover - Switch

GD# DKS-2600-533 MFR# 2600-533

• Lockable Switch Cover
• 3-5 Day Lead Time
See More Details

$46.75
DoorKing 2600-731 Cover - Gasket Switch

GD# DKS-2600-731 MFR# 2600-731

• Gasket Switch Cover
• 3-5 Day Lead Time
See More Details

$6.25
DoorKing 2600-732 Nameplate - Plastic DKS

GD# DKS-2600-732 MFR# 2600-732

• Nameplate - Plastic
• 3-5 Day Lead Time
See More Details

$11.25
DoorKing 2600-749 Wire Connector - STA-KON RC6

GD# DKS-2600-749 MFR# 2600-749

• Wire Connector - STA-KON RC6
• 3-5 Day Lead Time
See More Details

$6.55
DoorKing 2600-810 Bushing - 7/8" Poke Thru Flaps

GD# DKS-2600-810 MFR# 2600-810

• Bushing - 7/8" Poke Thru Flaps
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2600-840 Ring Tongue Jumper - #8 Screw

GD# DKS-2600-840 MFR# 2600-840

• Ring Tongue Jumper - #8 Screw
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2600-848 Resistor - 1 Ohm / 30 Watt

GD# DKS-2600-848 MFR# 2600-848

• Resistor - Power 1 Ohm / 30 Watt
• 3-5 Day Lead Time
See More Details

$26.25
DoorKing 2600-852 Chain Kit - #40 / 20'

GD# DKS-2600-852 MFR# 2600-852

• #40 Chain
• 20'
• Two master links
• Chain stop assemblies
• Chain brackets with chain connectors
• 3-5 Day Lead Time
See More Details

$170.50
DoorKing 2600-860 Solenoid Lock Assembly

GD# DKS-2600-860 MFR# 2600-860

• Replacement Lock Assembly
• For 9050 / 9070 / 9100 / 9150
• 3-5 Day Lead Time
See More Details

$85.50
DoorKing 2600-871 Bushing - 1/2" OD x 5/16" ID x 5/16" L

GD# DKS-2600-871 MFR# 2600-871

• Bushing - 1/2" OD x 5/16" ID x 5/16" L
• 3-5 Day Lead Time
See More Details

$7.50
DoorKing 2600-875 Clamp - Capacitor

GD# DKS-2600-875 MFR# 2600-875

• Capacitor Mounting Clamp
• 3-5 Day Lead Time
See More Details

$12.25
DoorKing 2600-880 Plug - 3/8" Plastic

GD# DKS-2600-880 MFR# 2600-880

• Plug - 3/8" Plastic
• 3-5 Day Lead Time
See More Details

$4.70
DoorKing 2600-886 Idler Wheel - UHMW

GD# DKS-2600-886 MFR# 2600-886

• Idler Wheel - UHMW
• 3-5 Day Lead Time
See More Details

$21.75
DoorKing 2600-903 Drive Shaft Assembly Assembly

GD# DKS-2600-903 MFR# 2600-903

• Assembly Includes Drive Shaft, Sprocket and Front Bearing
• For 905 / 907 / 910 / 9050 / 9070 / 9100
• 3-5 Day Lead Time
See More Details

$93.75
DoorKing 2600-917 Jamb Nut - Magnetic Sub-Assembly

GD# DKS-2600-917 MFR# 2600-917

• Jamb Nut - Magnetic Sub-Assembly
• 3-5 Day Lead Time
See More Details

$33.50
DoorKing 2600-922 Bracket - Right Idler

GD# DKS-2600-922 MFR# 2600-922

• Bracket - Right Idler
• 3-5 Day Lead Time
See More Details

$33.25
DoorKing 2600-930 Bracket - Shaft Support

GD# DKS-2600-930 MFR# 2600-930

• Bracket - Shaft Support
• For 910
• 3-5 Day Lead Time
See More Details

$44.25
DoorKing 2600-933 Door

GD# DKS-2600-933 MFR# 2600-933

• Door
• For 9050 / 9070 / 9100
• 3-5 Day Lead Time
See More Details

$391.75
DoorKing 2600-945 Cover - Plastic Insulator

GD# DKS-2600-945 MFR# 2600-945

• Plastic Insulator Cover
• 3-5 Day Lead Time
See More Details

$24.75
DoorKing 2600-957 Pulley Assembly - 10" Aluminum

GD# DKS-2600-957 MFR# 2600-957

• Pulley Assembly - 10" Aluminum
• 3-5 Day Lead Time
See More Details

$110.25
DoorKing 2600-985 Housing

GD# DKS-2600-985 MFR# 2600-985

• Housing
• For 9050, 9070, 9100
• 3-5 Day Lead Time
See More Details

$394.75
DoorKing 2600-988 Wire Set

GD# DKS-2600-988 MFR# 2600-988

• Wire Set
• For 9100
• 3-5 Day Lead Time
See More Details

$63.25
DoorKing 2600-990 Washer - 1.5" x .725" x .125" Neoprene

GD# DKS-2600-990 MFR# 2600-990

• Washer - Neoprene 1.5" x .725" x .125"
• 3-5 Day Lead Time
See More Details

$6.95
DoorKing 2615-153 Bolt - Hex Head - 5/16-18 x 3/4

GD# DKS-2615-153 MFR# 2615-153

• Bolt - Hex Head
• 5/16-18 x 3/4
• 3-5 Day Lead Time
See More Details

$4.70
DoorKing 2615-155 Bolt - Hex Head - 5/16-18 x 1-3/4

GD# DKS-2615-155 MFR# 2615-155

• Bolt - Hex Head
• 5/16-18 x 1 3/4
• 3-5 Day Lead Time
See More Details

$5.15
DoorKing 2616-000 Screw - Phillips Head - 6-32 x 1/4

GD# DKS-2616-000 MFR# 2616-000

• Screw - Phillips Head - 6-32 x 1/4
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8

GD# DKS-2616-001 MFR# 2616-001

• Screw - Phillips Head - 6-32 x 3/8
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-002 Screw - Phillips Head - 6-32 x 1/2

GD# DKS-2616-002 MFR# 2616-002

• Screw - Phillips Head - 6-32 x 1/2
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4

GD# DKS-2616-003 MFR# 2616-003

• Screw - Phillips Head - 6-32 x 3/4
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2616-006 Screw - Phillips Head - 6-32 x 3/16

GD# DKS-2616-006 MFR# 2616-006

• Screw - Phillips Head - 6-32 x 3/16
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-007 Screw - Phillips Head - 6-32 x 5/8

GD# DKS-2616-007 MFR# 2616-007

• Screw - Phillips Head - 6-32 x 5/8
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2616-019 Screw - Phillips Head - 8-32 x 3/4

GD# DKS-2616-019 MFR# 2616-019

• Screw - Phillips Head - 8-32 x 3/4
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-051 Screw - Phillips Head - 10-32 x 3/8

GD# DKS-2616-051 MFR# 2616-051

• Screw - Phillips Head - 10-32 x 3/8
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-052 Screw - Phillips Head - 10-32 x1/2

GD# DKS-2616-052 MFR# 2616-052

• Screw - Phillips Head - 10-32 x1/2
• 3-5 Day Lead Time
See More Details

$4.95
DoorKing 2620-035 Washer - 4" OD x 3/4" ID

GD# DKS-2620-035 MFR# 2620-035

• Washer - 4" OD x 3/4" ID
• 3-5 Day Lead Time
See More Details

$18.00
DoorKing 2620-053 Lockwasher - 5/16"

GD# DKS-2620-053 MFR# 2620-053

• Lockwasher - 5/16"
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2620-409 Nut - Hex Flange Lock - 1/4-20

GD# DKS-2620-409 MFR# 2620-409

• Nut - Hex Flange Lock - 1/4-20
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2620-411 Nut - Hex Flange Lock - 5/16-18

GD# DKS-2620-411 MFR# 2620-411

• Nut - Hex Flange Lock - 5/16-18
• 3-5 Day Lead Time
See More Details

$4.75
DoorKing 2802-040 Clamp - Washer Push On

GD# DKS-2802-040 MFR# 2802-040

• Washer Push on Clamp
• 3-5 Day Lead Time
See More Details

$5.45
DoorKing 2901-002 Terminal - 18-Pin

GD# DKS-2901-002 MFR# 2901-002

• Terminal - 18-Pin
• 3-5 Day Lead Time
See More Details

$60.25
DoorKing 2902-003 Nut - Nylon Lock - 6-32

GD# DKS-2902-003 MFR# 2902-003

• Nut - Nylon Lock - 6-32
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2902-004 Nut - Nylon Lock - 8-32

GD# DKS-2902-004 MFR# 2902-004

• Nut - Nylon Lock - 8-32
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2902-006 Nut - Nylon Lock - 10-32

GD# DKS-2902-006 MFR# 2902-006

• Nut - Nylon Lock - 10-32
• 3-5 Day Lead Time
See More Details

$4.40
DoorKing 2902-010 Nut - Nylon Lock - 8-32 Green

GD# DKS-2902-010 MFR# 2902-010

• Nut - Nylon Lock - 8-32 Green
• 3-5 Day Lead Time
See More Details

$5.65
DoorKing 3004-020 Magnetic Counter Probe

GD# DKS-3004-020 MFR# 3004-020

• Magnetic Counter Probe
• 3-5 Day Lead Time
See More Details

$151.75
DoorKing 3129-005 Cover - Terminal Block 5 Position

GD# DKS-3129-005 MFR# 3129-005

• Terminal Block Cover - 5 Position
• 3-5 Day Lead Time
See More Details

$17.50
DoorKing 4001-035 Lock & Keys

GD# DKS-4001-035 MFR# 4001-035

• Lock N16058BDxSFx2K Key 16120
• Includes Lock & 2 Keys
• 3-5 Day Lead Time
See More Details

$37.00
DoorKing 4602-009 Control Board

GD# DKS-4602-009 MFR# 4602-009

• Replacement Circuit Board
• For 910 / 915 / 920
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$581.00
DoorKing 4602-018 Control Board

GD# DKS-4602-018 MFR# 4602-018

• Replacement Circuit Board
• For 9100 / 9150 Operators
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$581.00
DoorKing 9100-006 Cover - Plastic

GD# DKS-9100-006 MFR# 9100-006

• Cover - Plastic
• For 9100
• 3-5 Day Lead Time
See More Details

$100.75
