DoorKing 9000 Slide Gate Operator - 1/2 HP

Be the first to review this product
• 35' x 1,000 Lbs • 115/208/460VAC Power Source • 115VAC Operational Voltage • Opens ~ 12" per Second • Continuous Duty • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time

From $2,477.00

To $5,881.40

SKU
DKS-9000-1-2-hp-bundle
Add to Wish List Add to Compare

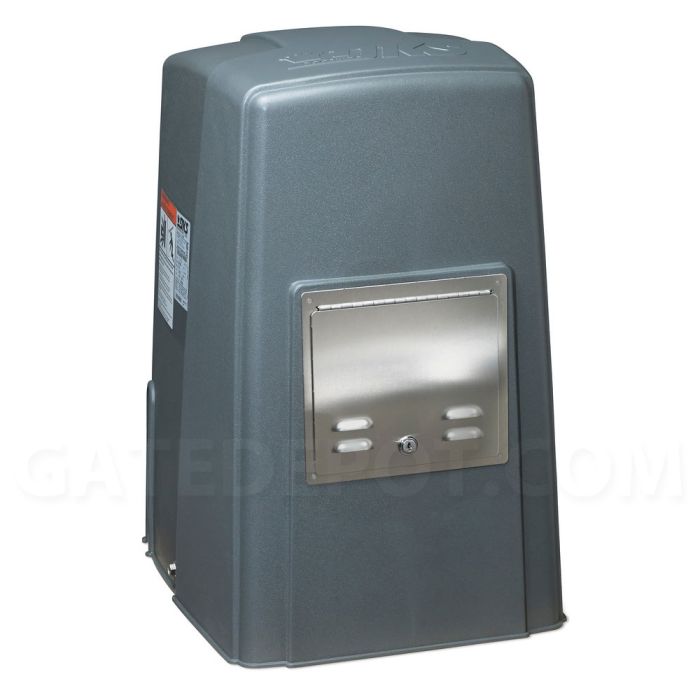

main product photo
VIEW MANUALS, BROCHURES & VIDEOS
Customize DoorKing 9000 Slide Gate Operator - 1/2 HP
• 35' x 1,000 Lbs • 115/208/460VAC Power Source • 115VAC Operational Voltage • Opens ~ 12" per Second • Continuous Duty • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time
DKS-9000-380 9000-380
• Secondary Operator - 1/2 HP • 3-5 Day Lead Time
DKS-9000-381 9000-381

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached - 2 REQUIRED
See Accessories for more Sensing Edge options
• 50 Ft. Range • 12-30V AC/DC • Weatherproof IP55 Housing • ETL UL325-2016 Compliant • Includes Hooded Reflector • 1-Year Manufacturer Warranty
SCL-e-931-s50rrgq E-931-S50RRGQ
Allows the operator to be powered from 208, 230, 460, or 575 voltage source. For dual gate operators, only one kit is needed.
• Required for voltages greater than 115 VAC • 3-5 Day Lead Time
DKS-2600-266 2600-266
• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty
LFM-850lm-mc 850LM-MC
• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch
LFM-811lmx-mc 811LMX-MC
• 3-Button • Universal DIP Style • 315/390 MHz • Security+ 315/390 / Security+ 2.0
LFM-893max-mc 893MAX-MC
• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys
LFM-kpw250-mc KPW250-MC
• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys
LFM-kpw5-mc KPW5-MC
• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA
EMX-2805-1 EMX-2805-1

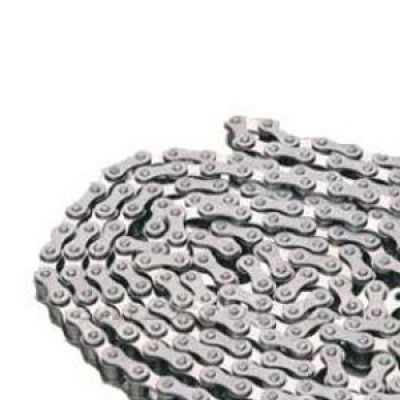

• #40 Chain • 20' • Nickel Plated • Includes Two Master Links • 3-5 Day Lead Time
DKS-2600-442 2600-442

* Required Fields

Your Customization
DoorKing 9000 1/2 HP Slide Gate Operator
DoorKing 9000 Slide Gate Operator - 1/2 HP

In stock

$2,477.00

Summary

    Product Details

    The DKS Model 9000 Slide Gate Operator offers powerful and safe access control in a small, compact design. The steel frame and belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation. The 9000 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, these Operators will fit most slide gate operation requirements. These Operators are ideally used in residential, commercial or industrial high-use applications.

    *Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

    Features

    • Steel frame provides strength and quiet operation
    • "T-Handle" release is easily accessible from front of operator
    • Operator re-connects automatically when handle is released
    • Direct driven limit nuts for precise gate control
    • Auto-close timer 1-30 seconds
    • Ports for plug-in open and reverse loop detectors — DKS detectors only
    • Selectable loop/reverse input function; stop or reverse
    • Anti-tailgating feature helps to control un-authorized traffic
    • Standard normally closed stop circuit
    • Gate Tracker reporting output provides operator data to DKS access control system
    • Convenience outlets for accessory transformers
    • Built-in power switch and alarm reset switch
    • Simple bi-parting gate interface
    • Maximum gate width 35-ft.
    • Maximum gate weight 1000 pounds* (1/2 HP) or 1500 pounds* (1 HP). (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
    • 1/2 or 1 HP continuous-duty motor
    • 115, 230*, 208*, 460* VAC. (*230, 208, and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
    • Class I, II, III and IV applications
    • Compliant with UL 325 and 991, ETL Listed
    • Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator
    • MADE IN USA

    Options

    • Plug-in loop detectors
    • Heater kit for cold environments
    • Secondary entrapment prevention devices
    • Bi-parting gate connection cable
    • Gate operator control stations
    • Postal and Fire Dept lock boxes
    • Surge suppressors, time clocks, traffic signal
    Specification
    Specifiction
    Brand Doorking
    Accessories

    Showcased Accessories

    • Slide Gate Hardware
    • Gate Locks
    • Gate Operator Accessories
    • Stand-Alone Access Control
    • Multiple Unit / Access Point Control Systems
    • Radio Remotes
    • Access Control Accessories
    • Loop Detectors
    • Loops
    • Photo Eyes
    • Safety Edges
    • Power Supplies
    • Wire & Cable
    • All Products
    • Google Feed
    Manuals & Resources

    Product Manuals

    doorking-9000-manual_2020-12_Rev_M (9.95 MB)
    doorking-9000-manual_2018-05_Rev_B (9.77 MB)
    doorking-9000-manual, 2018-02 Rev A.pdf
    doorking-9000-manual, 2017-11 Rev Z.pdf
    doorking-9000-manual, 2014-04 Rev N.pdf
    doorking-9000-manual, 2013-03 Rev M.pdf
    doorking-9000-manual, 2010-03 Rev E.pdf

    Product Brochures

    doorking-9000-9024-9050-9100-6150-brochure_2020-08 (4.80 MB)
    doorking-gate-hardware-brochure_2023-02 (4.08 MB)

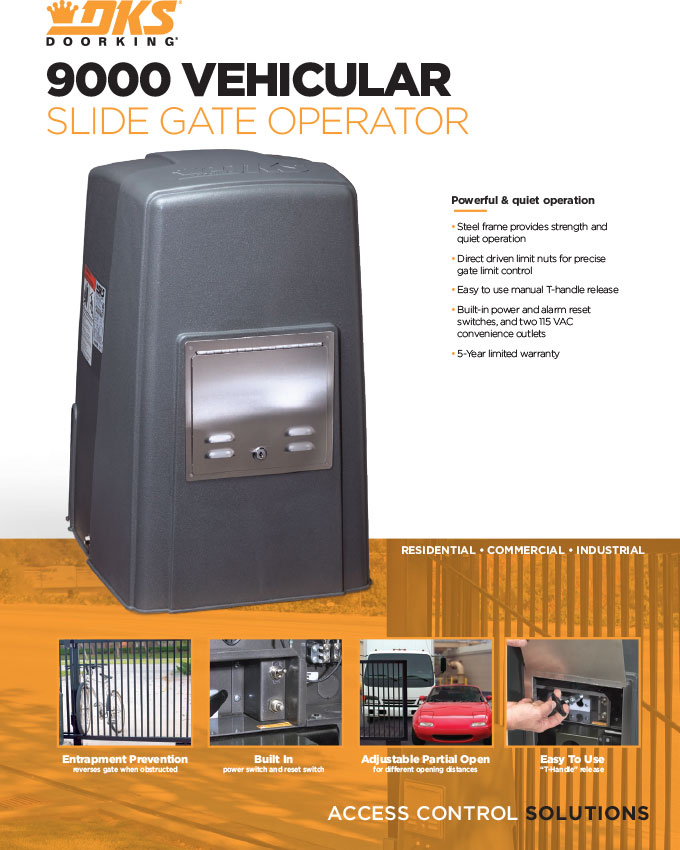

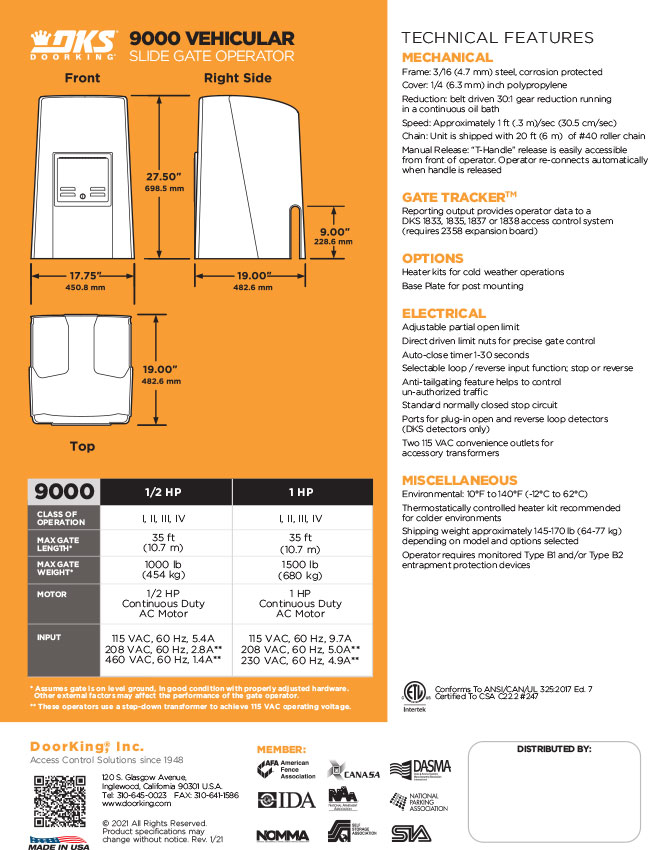

    doorking-9000-brochure-2021-01 (1.64 MB)

    Additional Resources

    doorking-9000-quickstart_2020-09_Rev_N (3.03 MB)
    doorking-9000-quickstart, 2016-10 Rev H.pdf
    doorking-9000-quickstart, 2013-01 Rev F.pdf
    doorking-perimeter-access-management-solutions_2019-04_Rev_Z (14.25 MB)
    doorking-grounding-and-surge-protection_2006_Rev_D-4 (355.35 kB)

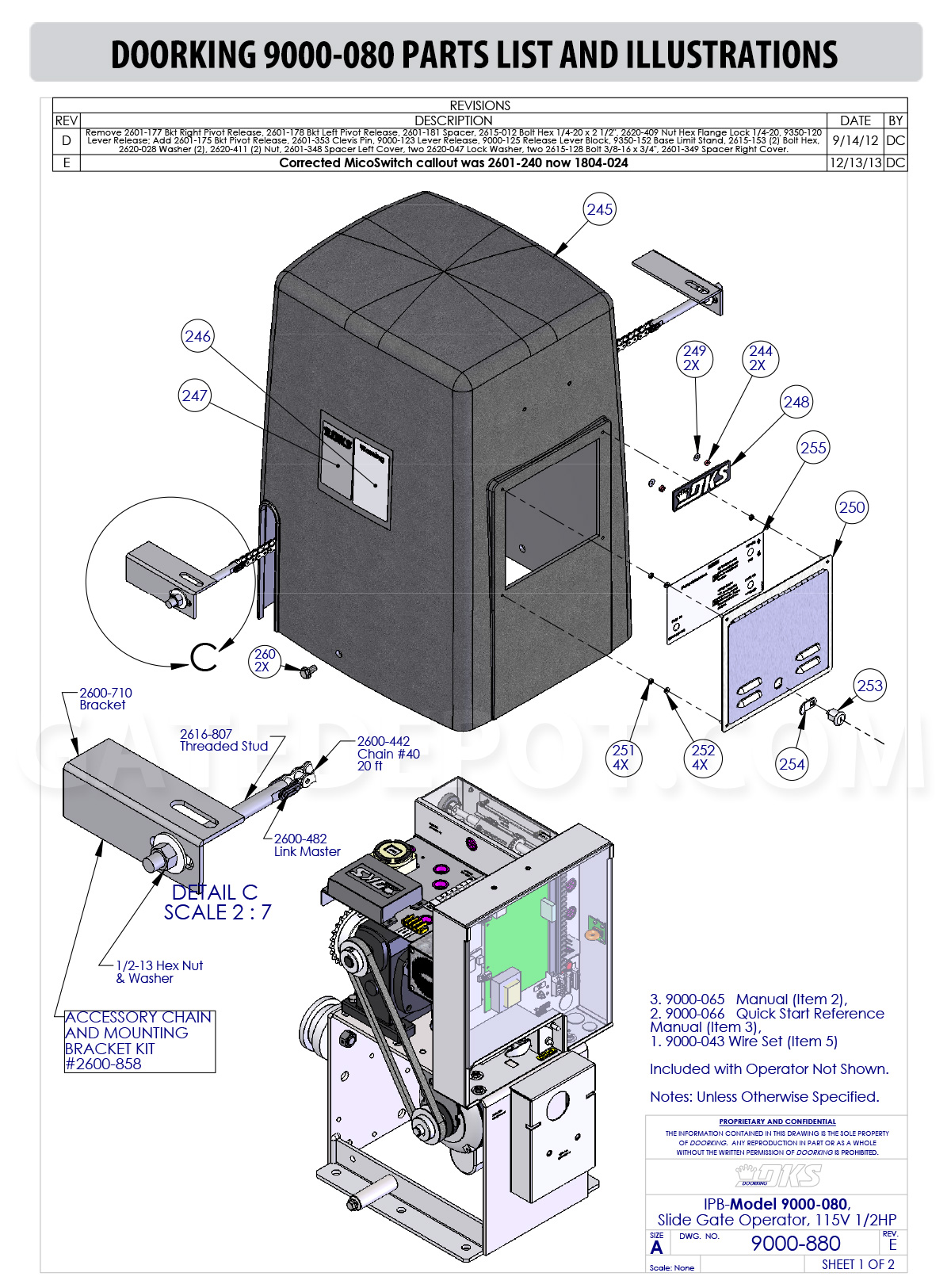

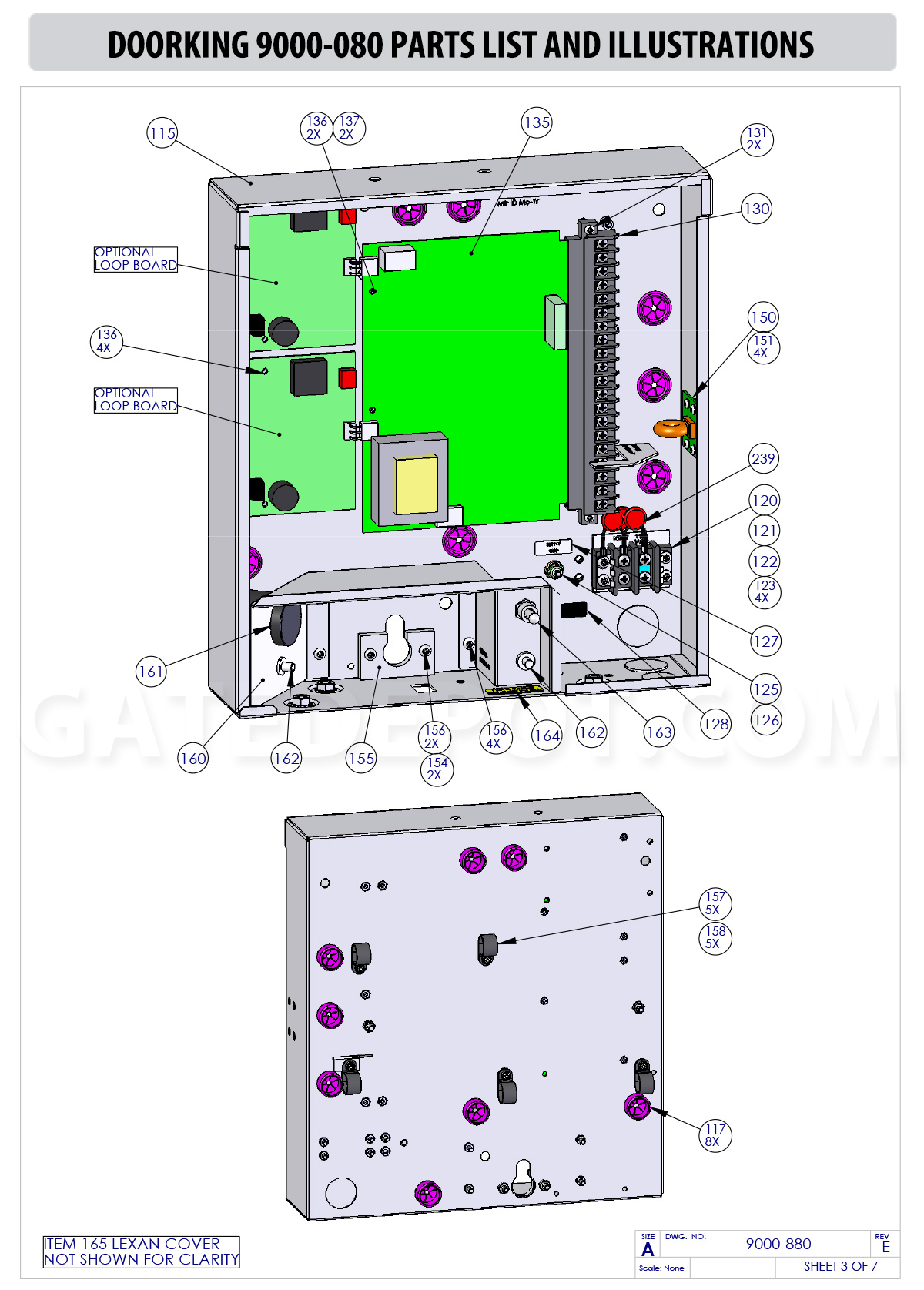

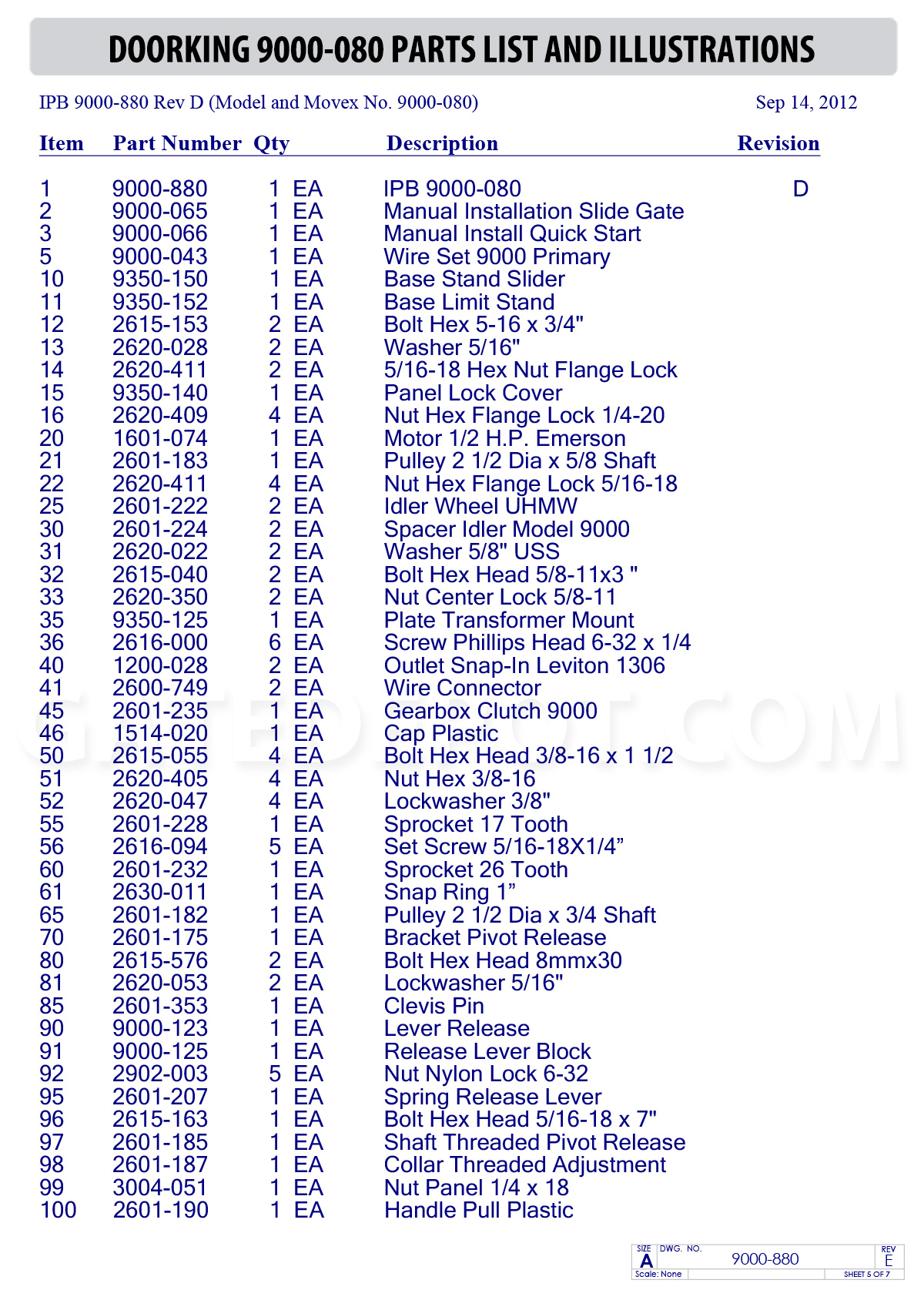

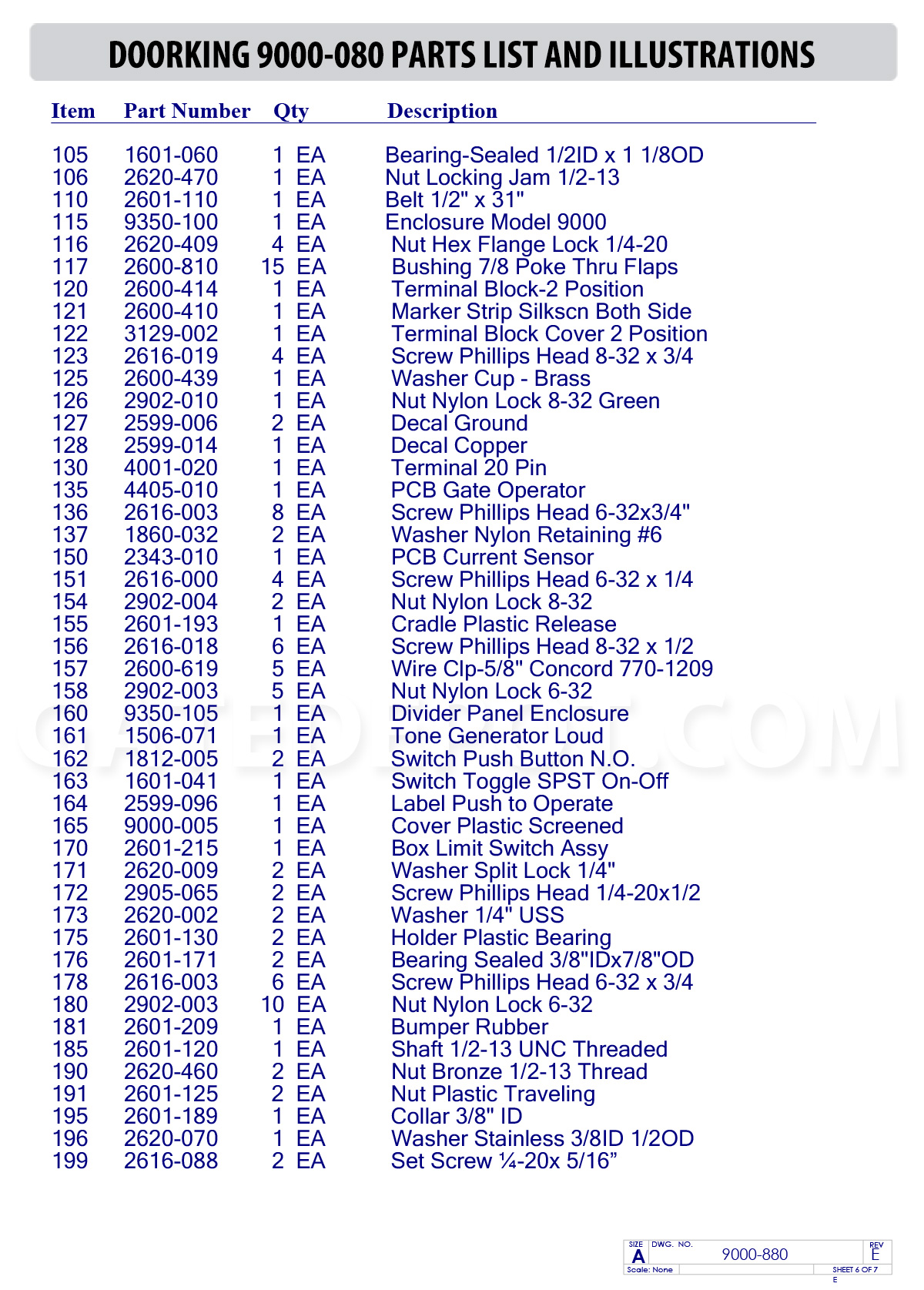

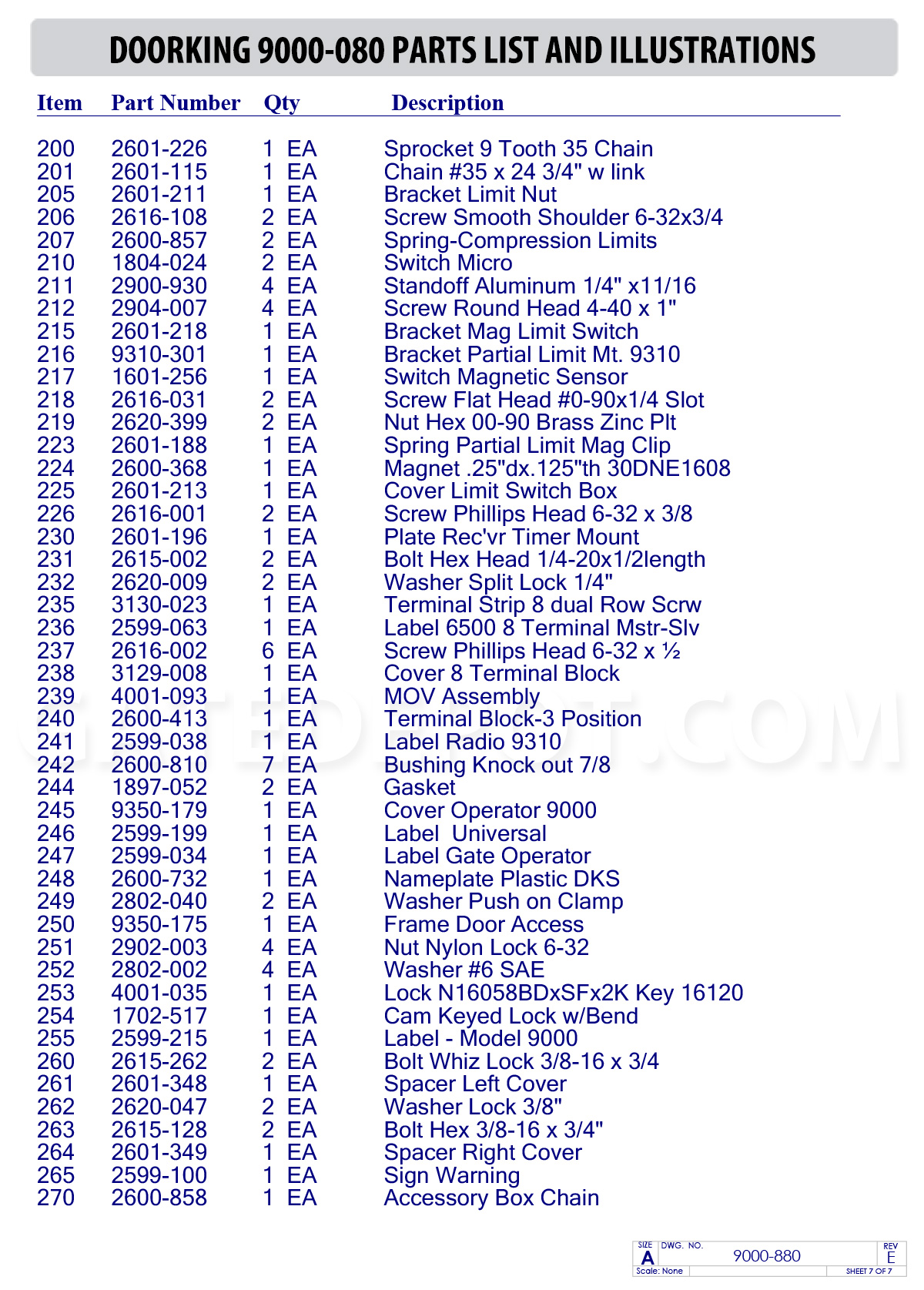

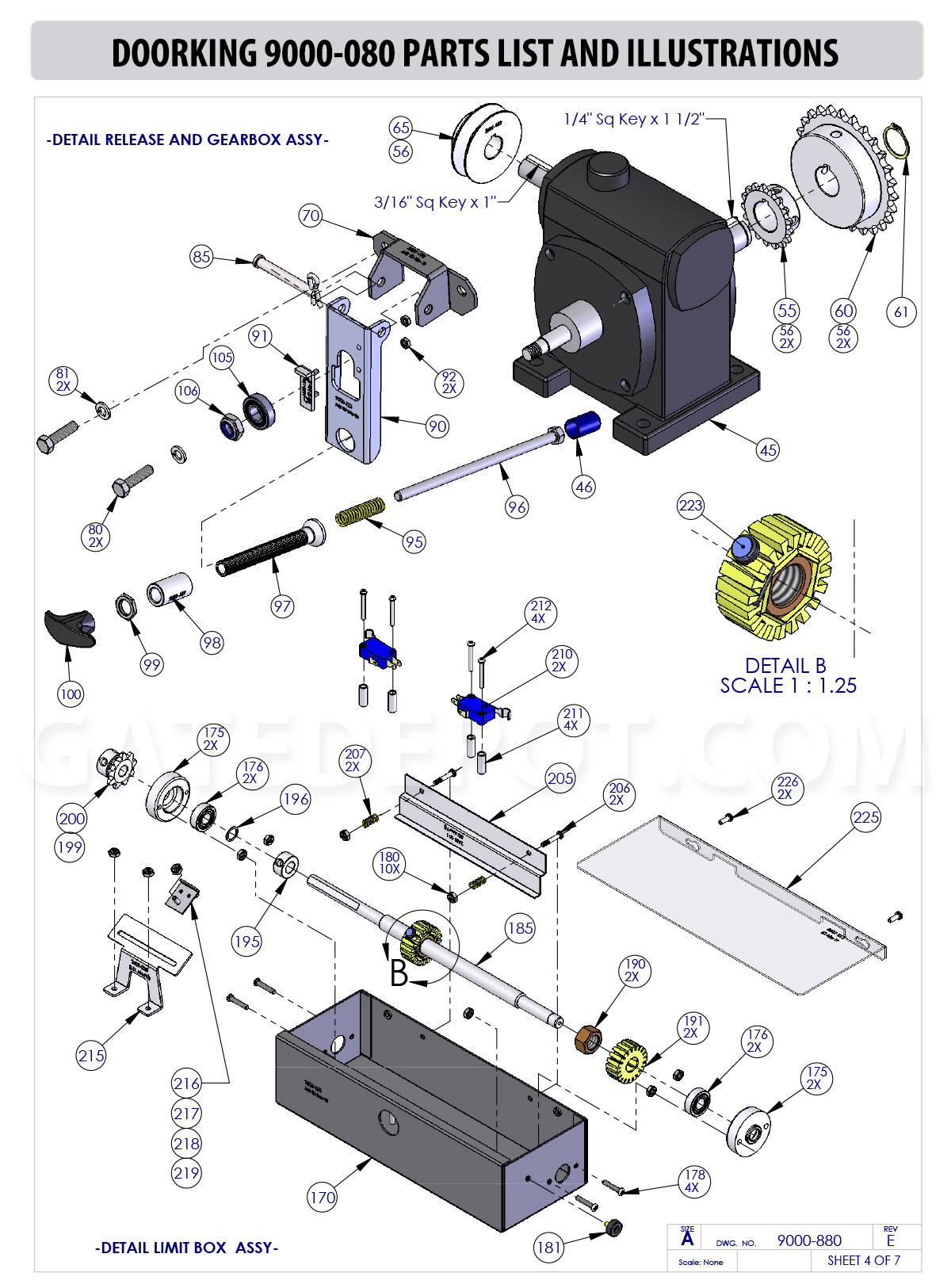

    doorking-9000-080-IPB_2013-12_Rev_E (2.33 MB)
    doorking-9000-081-IPB_2013-12_Rev_D (2.29 MB)
    Replacement Parts
      98====
    1. DoorKing 1200-028 Outlet
      DoorKing 1200-028 Outlet
      DKS-1200-028 1200-028
      • Outlet, Snap-In
      • 3-5 Day Lead Time
      See More Details
      $13.00
      2. 98====
    2. DoorKing 1506-071 Entrapment Alarm Buzzer
      DoorKing 1506-071 Entrapment Alarm Buzzer
      DKS-1506-071 1506-071
      • Tone Generator
      • 3-5 Day Lead Time
      See More Details
      $53.50
      3. 98====
    3. DoorKing 1514-020 Plastic Antenna Cap
      DoorKing 1514-020 Plastic Antenna Cap
      DKS-1514-020 1514-020
      • Cap, Plastic, Antenna
      • 3-5 Day Lead Time
      See More Details
      $4.45
      4. 98====
    4. DoorKing 1601-041 Toggle Switch - SPST 2 Pos
      DoorKing 1601-041 Toggle Switch - SPST 2 Pos
      DKS-1601-041 1601-041
      • Toggle Switch - SPST 2 Position
      • 3-5 Day Lead Time
      See More Details
      $20.75
      5. 98====
    5. DoorKing 1601-060 Bearing - Sealed - 1/2" ID x 1-1/8" OD
      DoorKing 1601-060 Bearing - Sealed - 1/2" ID x 1-1/8" OD
      DKS-1601-060 1601-060
      • Bearing - Sealed
      • 1/2" ID x 1-1/8" OD
      • 3-5 Day Lead Time
      See More Details
      $20.75
      6. 98====
    6. DoorKing 1601-140 Toggle Switch - 2 Pole On-Off
      DoorKing 1601-140 Toggle Switch - 2 Pole On-Off
      DKS-1601-140 1601-140
      • Toggle Switch - 2 Pole On-Off
      • 3-5 Day Lead Time
      See More Details
      $34.25
      7. 98====
    7. DoorKing 1601-256 Switch - Magnetic Sensor
      DoorKing 1601-256 Switch - Magnetic Sensor
      DKS-1601-256 1601-256
      • Magnetic Sensor Switch
      • 3-5 Day Lead Time
      See More Details
      $21.75
      8. 98====
    8. Doorking 1702-517 Cam Keyed Lock w/ Bend
      Doorking 1702-517 Cam Keyed Lock w/ Bend
      DKS-1702-517 1702-517
      • Cam Keyed Lock w/ Bend
      • 3-5 Day Lead Time
      See More Details
      $39.25
      9. 98====
    9. DoorKing 1804-024 Switch - Micro NO NC C
      DoorKing 1804-024 Switch - Micro NO NC C
      DKS-1804-024 1804-024
      • Micro Switch - NO NC C
      • 3-5 Day Lead Time
      See More Details
      $17.50
      10. 98====
    10. DoorKing 1812-005 Switch Push Button
      DoorKing 1812-005 Switch Push Button
      DKS-1812-005 1812-005
      • Switch Push Button N.O.
      • 3-5 Day Lead Time
      See More Details
      $36.00
      11. 98====
    11. DoorKing 1897-052 Microphone Support Gasket
      DoorKing 1897-052 Microphone Support Gasket
      DKS-1897-052 1897-052
      • Gasket, Microphone Support
      • 3-5 Day Lead Time
      See More Details
      $6.05
      12. 98====
    12. DoorKing 2343-010 PCB Current Sensor
      DoorKing 2343-010 PCB Current Sensor
      DKS-2343-010 2343-010
      • PCB Current Sensor
      • 3-5 Day Lead Time
      See More Details
      $51.75
      13. 98====
    13. DoorKing 2599-100 Warning Sign
      DoorKing 2599-100 Warning Sign
      DKS-2599-100 2599-100
      • Sign Warning
      • 3-5 Day Lead Time
      See More Details
      $23.00
      14. 98====
    14. DoorKing 2600-368 Magnet - 1/4"d x 1/8"
      DoorKing 2600-368 Magnet - 1/4"d x 1/8"
      DKS-2600-368 2600-368
      • Magnet 1/4" d x 1/8" th 30DNE1608
      • 3-5 Day Lead Time
      See More Details
      $6.50
      15. 98====
    15. DoorKing 2600-413 Terminal - Block-3 Position
      DoorKing 2600-413 Terminal - Block-3 Position
      DKS-2600-413 2600-413
      • Terminal Block - 3 Position
      • 3-5 Day Lead Time
      See More Details
      $7.80
      16. 98====
    16. DoorKing 2600-414 Terminal - Block-2 Position
      DoorKing 2600-414 Terminal - Block-2 Position
      DKS-2600-414 2600-414
      • Terminal Block - 2 Position
      • 3-5 Day Lead Time
      See More Details
      $14.00
      17. 98====
    17. DoorKing 2600-439 Washer Cup - Brass
      DoorKing 2600-439 Washer Cup - Brass
      DKS-2600-439 2600-439
      • Washer Cup - Brass
      • 3-5 Day Lead Time
      See More Details
      $8.60
      18. 98====
    18. DoorKing 2600-710 Bracket - 3/16" x 2" x 6"
      DoorKing 2600-710 Bracket - 3/16" x 2" x 6"
      DKS-2600-710 2600-710
      • Bracket - 3/16" x 2" x 6"
      • 3-5 Day Lead Time
      See More Details
      $35.50
      19. 98====
    19. DoorKing 2600-732 Nameplate - Plastic DKS
      DoorKing 2600-732 Nameplate - Plastic DKS
      DKS-2600-732 2600-732
      • Nameplate - Plastic
      • 3-5 Day Lead Time
      See More Details
      $11.25
      20. 98====
    20. DoorKing 2600-749 Wire Connector - STA-KON RC6
      DoorKing 2600-749 Wire Connector - STA-KON RC6
      DKS-2600-749 2600-749
      • Wire Connector - STA-KON RC6
      • 3-5 Day Lead Time
      See More Details
      $6.55
      21. 98====
    21. DoorKing 2600-807 Spirol Pin - 3/16"D x 2"L Stainless
      DoorKing 2600-807 Spirol Pin - 3/16"D x 2"L Stainless
      DKS-2600-807 2600-807
      • Spirol Pin - 3/16D x2.0L - Stainless
      • 3-5 Day Lead Time
      See More Details
      $6.90
      22. 98====
    22. DoorKing 2600-810 Bushing - 7/8" Poke Thru Flaps
      DoorKing 2600-810 Bushing - 7/8" Poke Thru Flaps
      DKS-2600-810 2600-810
      • Bushing - 7/8" Poke Thru Flaps
      • 3-5 Day Lead Time
      See More Details
      $4.45
      23. 98====
    23. DoorKing 2600-857 Spring - Compression Limits
      DoorKing 2600-857 Spring - Compression Limits
      DKS-2600-857 2600-857
      • Spring - Compression Limits
      • 3-5 Day Lead Time
      See More Details
      $4.70
      24. 98====
    24. DoorKing 2600-858 Accessory Box
      DoorKing 2600-858 Accessory Box
      DKS-2600-858 2600-858
      • Accessory Box
      • For 9300
      • 3-5 Day Lead Time
      See More Details
      $108.00
      25. 98====
    25. Doorking 2601-110 Belt - 1/2" x 31"
      Doorking 2601-110 Belt - 1/2" x 31"
      DKS-2601-110 2601-110
      • Belt - 1/2" x 31"
      • 3-5 Day Lead Time
      See More Details
      $37.75
      26. 98====
    26. Doorking 2601-115 Chain - #35 / 24-3/4"
      Doorking 2601-115 Chain - #35 / 24-3/4"
      DKS-2601-115 2601-115
      • Chain - #35 / 24-3/4"
      • 3-5 Day Lead Time
      See More Details
      $30.25
      27. 98====
    27. Doorking 2601-120 Shaft - 1/2-13 UNC Threaded
      Doorking 2601-120 Shaft - 1/2-13 UNC Threaded
      DKS-2601-120 2601-120
      • Shaft - 1/2-13 UNC Threaded
      • 3-5 Day Lead Time
      See More Details
      $34.00
      28. 98====
    28. Doorking 2601-130 Plastic Bearing Holder
      Doorking 2601-130 Plastic Bearing Holder
      DKS-2601-130 2601-130
      • Plastic Bearing Holder
      • 3-5 Day Lead Time
      See More Details
      $8.80
      29. 98====
    29. DoorKing 2601-171 Bearing - Sealed - 3/8" ID x 7/8" OD
      DoorKing 2601-171 Bearing - Sealed - 3/8" ID x 7/8" OD
      DKS-2601-171 2601-171
      • Bearing - Sealed - 3/8" ID x 7/8" OD
      • 3-5 Day Lead Time
      See More Details
      $17.00
      30. 98====
    30. Doorking 2601-175 Bracket - Release Lever
      Doorking 2601-175 Bracket - Release Lever
      DKS-2601-175 2601-175
      • Bracket - Release Lever
      • 3-5 Day Lead Time
      See More Details
      $44.50
      31. 98====
    31. DoorKing 2601-182 Pulley - 2 1/2" ø x 3/4" Shaft
      DoorKing 2601-182 Pulley - 2 1/2" ø x 3/4" Shaft
      DKS-2601-182 2601-182
      • Pulley - 2 1/2ø x 3/4" Shaft
      • 3-5 Day Lead Time
      See More Details
      $33.75
      32. 98====
    32. DoorKing 2601-183 Pulley - 2 1/2" ø x 5/8" Shaft
      DoorKing 2601-183 Pulley - 2 1/2" ø x 5/8" Shaft
      DKS-2601-183 2601-183
      • Pulley - 2 1/2ø x 5/8" Shaft
      • 3-5 Day Lead Time
      See More Details
      $33.75
      33. 98====
    33. Doorking 2601-185 Shaft - Threaded Pivot Release
      Doorking 2601-185 Shaft - Threaded Pivot Release
      DKS-2601-185 2601-185
      • Shaft - Threaded Pivot Release
      • 3-5 Day Lead Time
      See More Details
      $46.25
      34. 98====
    34. Doorking 2601-187 Collar - Threader Adjustment
      Doorking 2601-187 Collar - Threader Adjustment
      DKS-2601-187 2601-187
      • Collar - Threader Adjustment
      • 3-5 Day Lead Time
      See More Details
      $24.75
      35. 98====
    35. Doorking 2601-189 Collar - 3/8" ID
      Doorking 2601-189 Collar - 3/8" ID
      DKS-2601-189 2601-189
      • Collar - 3/8" ID
      • 3-5 Day Lead Time
      See More Details
      $15.00
      36. 98====
    36. Doorking 2601-190 Plastic Handle Pull
      Doorking 2601-190 Plastic Handle Pull
      DKS-2601-190 2601-190
      • Plastic Handle Pull
      • 3-5 Day Lead Time
      See More Details
      $24.25
      37. 98====
    37. Doorking 2601-193 Plastic Release Cradle
      Doorking 2601-193 Plastic Release Cradle
      DKS-2601-193 2601-193
      • Plastic Release Cradle
      • 3-5 Day Lead Time
      See More Details
      $9.50
      38. 98====
    38. Doorking 2601-196 Receiver Timer Mount Plate
      Doorking 2601-196 Receiver Timer Mount Plate
      DKS-2601-196 2601-196
      • Receiver Timer Mount Plate
      • 3-5 Day Lead Time
      See More Details
      $119.75
      39. 98====
    39. Doorking 2601-207 Spring - Release Lever
      Doorking 2601-207 Spring - Release Lever
      DKS-2601-207 2601-207
      • Spring - Release Lever
      • 3-5 Day Lead Time
      See More Details
      $14.00
      40. 98====
    40. Doorking 2601-209 Rubber Bumper
      Doorking 2601-209 Rubber Bumper
      DKS-2601-209 2601-209
      • Rubber Bumper
      • 3-5 Day Lead Time
      See More Details
      $6.50
      41. 98====
    41. Doorking 2601-211 Bracket - Limit Nut
      Doorking 2601-211 Bracket - Limit Nut
      DKS-2601-211 2601-211
      • Bracket - Limit Nut
      • 3-5 Day Lead Time
      See More Details
      $41.25
      42. 98====
    42. Doorking 2601-213 Cover - Limit Switch Box
      Doorking 2601-213 Cover - Limit Switch Box
      DKS-2601-213 2601-213
      • Cover - Limit Switch Box
      • 3-5 Day Lead Time
      See More Details
      $73.75
      43. 98====
    43. Doorking 2601-215 Limit Switch Box
      Doorking 2601-215 Limit Switch Box
      DKS-2601-215 2601-215
      • Limit Switch Box
      • 3-5 Day Lead Time
      See More Details
      $162.75
      44. 98====
    44. Doorking 2601-218 Bracket - Mag Limit Switch
      Doorking 2601-218 Bracket - Mag Limit Switch
      DKS-2601-218 2601-218
      • Bracket - Mag Limit Switch
      • 3-5 Day Lead Time
      See More Details
      $55.50
      45. 98====
    45. Doorking 2601-222 Idler Wheel
      Doorking 2601-222 Idler Wheel
      DKS-2601-222 2601-222
      • Idler Wheel
      • For 9000
      • 3-5 Day Lead Time
      See More Details
      $31.50
      46. 98====
    46. Doorking 2601-224 Idler Spacer
      Doorking 2601-224 Idler Spacer
      DKS-2601-224 2601-224
      • Idler Spacer
      • 3-5 Day Lead Time
      See More Details
      $11.75
      47. 98====
    47. DoorKing 2601-235 Gearbox
      DoorKing 2601-235 Gearbox
      DKS-2601-235 2601-235
      • Gearbox - Clutched
      • For 9000
      • 3-5 Day Lead Time
      See More Details
      $752.00
      48. 98====
    48. Doorking 2601-348 Space Cover - Left
      Doorking 2601-348 Space Cover - Left
      DKS-2601-348 2601-348
      • Space Cover - Left
      • 3-5 Day Lead Time
      See More Details
      $34.75
      49. 98====
    49. Doorking 2601-349 Spacer Cover - Right
      Doorking 2601-349 Spacer Cover - Right
      DKS-2601-349 2601-349
      • Spacer Cover - Right
      • For 9000
      • 3-5 Day Lead Time
      See More Details
      $23.75
      50. 98====
    50. DoorKing 2615-002 Bolt - Hex Head - 1/4 x 20 x 1/2
      DoorKing 2615-002 Bolt - Hex Head - 1/4 x 20 x 1/2
      DKS-2615-002 2615-002
      • Bolt - Hex Head
      • 1/4 x 20 x 1/2
      • 3-5 Day Lead Time
      See More Details
      $4.20
      51. 98====
    51. DoorKing 2615-040 Bolt - Hex Head - 5/8-11 x 3
      DoorKing 2615-040 Bolt - Hex Head - 5/8-11 x 3
      DKS-2615-040 2615-040
      • Bolt - Hex Head
      • 5/8-11 x 3
      • 3-5 Day Lead Time
      See More Details
      $8.30
      52. 98====
    52. DoorKing 2615-055 Bolt - Hex Head - 3/8-16 x 1-1/2
      DoorKing 2615-055 Bolt - Hex Head - 3/8-16 x 1-1/2
      DKS-2615-055 2615-055
      • Bolt - Hex Head
      • 3/8-16 x 1 1/2
      • 3-5 Day Lead Time
      See More Details
      $5.65
      53. 98====
    53. DoorKing 2615-128 Bolt - Hex Head - 3/8-16 x 3/4
      DoorKing 2615-128 Bolt - Hex Head - 3/8-16 x 3/4
      DKS-2615-128 2615-128
      • Bolt - Hex Head
      • 3/8-16 x 3/4
      • 3-5 Day Lead Time
      See More Details
      $5.00
      54. 98====
    54. DoorKing 2615-153 Bolt - Hex Head - 5/16-18 x 3/4
      DoorKing 2615-153 Bolt - Hex Head - 5/16-18 x 3/4
      DKS-2615-153 2615-153
      • Bolt - Hex Head
      • 5/16-18 x 3/4
      • 3-5 Day Lead Time
      See More Details
      $4.70
      55. 98====
    55. DoorKing 2615-163 Bolt - Hex Head - 5/16-18 x 7
      DoorKing 2615-163 Bolt - Hex Head - 5/16-18 x 7
      DKS-2615-163 2615-163
      • Bolt - Hex Head
      • 5/16-18 x 7
      • 3-5 Day Lead Time
      See More Details
      $11.25
      56. 98====
    56. Doorking 2615-262 Bolt - Flange Lock
      Doorking 2615-262 Bolt - Flange Lock
      DKS-2615-262 2615-262
      • Bolt - Flange Lock
      • 3-5 Day Lead Time
      See More Details
      $18.00
      57. 98====
    57. DoorKing 2616-000 Screw - Phillips Head - 6-32 x 1/4
      DoorKing 2616-000 Screw - Phillips Head - 6-32 x 1/4
      DKS-2616-000 2616-000
      • Screw - Phillips Head - 6-32 x 1/4
      • 3-5 Day Lead Time
      See More Details
      $4.35
      58. 98====
    58. DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8
      DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8
      DKS-2616-001 2616-001
      • Screw - Phillips Head - 6-32 x 3/8
      • 3-5 Day Lead Time
      See More Details
      $4.35
      59. 98====
    59. DoorKing 2616-002 Screw - Phillips Head - 6-32 x 1/2
      DoorKing 2616-002 Screw - Phillips Head - 6-32 x 1/2
      DKS-2616-002 2616-002
      • Screw - Phillips Head - 6-32 x 1/2
      • 3-5 Day Lead Time
      See More Details
      $4.35
      60. 98====
    60. DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4
      DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4
      DKS-2616-003 2616-003
      • Screw - Phillips Head - 6-32 x 3/4
      • 3-5 Day Lead Time
      See More Details
      $4.50
      61. 98====
    61. DoorKing 2616-018 Screw - Phillips Head - 8-32 x 1/2
      DoorKing 2616-018 Screw - Phillips Head - 8-32 x 1/2
      DKS-2616-018 2616-018
      • Screw - Phillips Head - 8-32 x 1/2
      • 3-5 Day Lead Time
      See More Details
      $4.35
      62. 98====
    62. DoorKing 2616-019 Screw - Phillips Head - 8-32 x 3/4
      DoorKing 2616-019 Screw - Phillips Head - 8-32 x 3/4
      DKS-2616-019 2616-019
      • Screw - Phillips Head - 8-32 x 3/4
      • 3-5 Day Lead Time
      See More Details
      $4.35
      63. 98====
    63. DoorKing 2616-031 Screw - Flat Head - #0-90x1/4 Slot
      DoorKing 2616-031 Screw - Flat Head - #0-90x1/4 Slot
      DKS-2616-031 2616-031
      • Screw - Flat Head - #0-90x1/4 Slot
      • 3-5 Day Lead Time
      See More Details
      $6.65
      64. 98====
    64. Doorking 2616-088 Set Screw - 1/4-20 x 5/16 SS
      Doorking 2616-088 Set Screw - 1/4-20 x 5/16 SS
      DKS-2616-088 2616-088
      • Set Screw - 1/4-20 x 5/16 SS
      • 3-5 Day Lead Time
      See More Details
      $5.40
      65. 98====
    65. DoorKing 2616-094 Set Screw - 5/16-18 x1/4 Zinc Plated
      DoorKing 2616-094 Set Screw - 5/16-18 x1/4 Zinc Plated
      DKS-2616-094 2616-094
      • Set Screw - 5/16-18 x1/4 Zinc Plated
      • 3-5 Day Lead Time
      See More Details
      $5.35
      66. 98====
    66. DoorKing 2620-002 Washer - 1/4" USS
      DoorKing 2620-002 Washer - 1/4" USS
      DKS-2620-002 2620-002
      • Washer - 1/4" USS
      • 3-5 Day Lead Time
      See More Details
      $4.35
      67. 98====
    67. DoorKing 2620-028 Washer - 5/16" USS
      DoorKing 2620-028 Washer - 5/16" USS
      DKS-2620-028 2620-028
      • Washer - 5/16" USS
      • 3-5 Day Lead Time
      See More Details
      $4.45
      68. 98====
    68. DoorKing 2620-047 Lockwasher - 3/8"
      DoorKing 2620-047 Lockwasher - 3/8"
      DKS-2620-047 2620-047
      • Lockwasher - 3/8"
      • 3-5 Day Lead Time
      See More Details
      $4.45
      69. 98====
    69. DoorKing 2620-053 Lockwasher - 5/16"
      DoorKing 2620-053 Lockwasher - 5/16"
      DKS-2620-053 2620-053
      • Lockwasher - 5/16"
      • 3-5 Day Lead Time
      See More Details
      $4.35
      70. 98====
    70. DoorKing 2620-070 Washer - 1/2" OD x 3/8" ID SS
      DoorKing 2620-070 Washer - 1/2" OD x 3/8" ID SS
      DKS-2620-070 2620-070
      • Washer - 1/2" OD x 3/8" ID SS
      • 3-5 Day Lead Time
      See More Details
      $8.25
      71. 98====
    71. DoorKing 2620-399 Nut - Hex - 00-90 Brass Zinc Plated
      DoorKing 2620-399 Nut - Hex - 00-90 Brass Zinc Plated
      DKS-2620-399 2620-399
      • Nut - Hex - 00-90 Brass Zinc Plated
      • 3-5 Day Lead Time
      See More Details
      $7.05
      72. 98====
    72. DoorKing 2620-405 Nut - Hex - 3/8-16
      DoorKing 2620-405 Nut - Hex - 3/8-16
      DKS-2620-405 2620-405
      • Nut - Hex - 3/8-16
      • 3-5 Day Lead Time
      See More Details
      $4.50
      73. 98====
    73. DoorKing 2620-409 Nut - Hex Flange Lock - 1/4-20
      DoorKing 2620-409 Nut - Hex Flange Lock - 1/4-20
      DKS-2620-409 2620-409
      • Nut - Hex Flange Lock - 1/4-20
      • 3-5 Day Lead Time
      See More Details
      $4.45
      74. 98====
    74. DoorKing 2620-411 Nut - Hex Flange Lock - 5/16-18
      DoorKing 2620-411 Nut - Hex Flange Lock - 5/16-18
      DKS-2620-411 2620-411
      • Nut - Hex Flange Lock - 5/16-18
      • 3-5 Day Lead Time
      See More Details
      $4.75
      75. 98====
    75. DoorKing 2620-460 Nut - Bronze - 1/2-13
      DoorKing 2620-460 Nut - Bronze - 1/2-13
      DKS-2620-460 2620-460
      • Nut - Bronze - 1/2-13
      • 3-5 Day Lead Time
      See More Details
      $19.50
      76. 98====
    76. DoorKing 2620-470 Nut - Locking Jam - 1/2-13
      DoorKing 2620-470 Nut - Locking Jam - 1/2-13
      DKS-2620-470 2620-470
      • Nut - Locking Jam - 1/2-13
      • 3-5 Day Lead Time
      See More Details
      $5.25
      77. 98====
    77. DoorKing 2630-011 Snap Ring - 1" / #3100-100ZD
      DoorKing 2630-011 Snap Ring - 1" / #3100-100ZD
      DKS-2630-011 2630-011
      • Snap Ring - 1" / #3100-100ZD
      • 3-5 Day Lead Time
      See More Details
      $4.45
      78. 98====
    78. DoorKing 2802-002 Washer - #6 SAE
      DoorKing 2802-002 Washer - #6 SAE
      DKS-2802-002 2802-002
      • Washer - #6 SAE
      • 3-5 Day Lead Time
      See More Details
      $8.40
      79. 98====
    79. DoorKing 2802-040 Clamp - Washer Push On
      DoorKing 2802-040 Clamp - Washer Push On
      DKS-2802-040 2802-040
      • Washer Push on Clamp
      • 3-5 Day Lead Time
      See More Details
      $5.45
      80. 98====
    80. DoorKing 2902-003 Nut - Nylon Lock - 6-32
      DoorKing 2902-003 Nut - Nylon Lock - 6-32
      DKS-2902-003 2902-003
      • Nut - Nylon Lock - 6-32
      • 3-5 Day Lead Time
      See More Details
      $4.45
      81. 98====
    81. DoorKing 2902-004 Nut - Nylon Lock - 8-32
      DoorKing 2902-004 Nut - Nylon Lock - 8-32
      DKS-2902-004 2902-004
      • Nut - Nylon Lock - 8-32
      • 3-5 Day Lead Time
      See More Details
      $4.50
      82. 98====
    82. DoorKing 2902-010 Nut - Nylon Lock - 8-32 Green
      DoorKing 2902-010 Nut - Nylon Lock - 8-32 Green
      DKS-2902-010 2902-010
      • Nut - Nylon Lock - 8-32 Green
      • 3-5 Day Lead Time
      See More Details
      $5.65
      83. 98====
    83. DoorKing 2904-007 Screw - Round Head - 4-40 x 1
      DoorKing 2904-007 Screw - Round Head - 4-40 x 1
      DKS-2904-007 2904-007
      • Screw - Round Head - 4-40 x 1
      • 3-5 Day Lead Time
      See More Details
      $4.95
      84. 98====
    84. DoorKing 3129-002 Cover - Terminal Block 2 Position
      DoorKing 3129-002 Cover - Terminal Block 2 Position
      DKS-3129-002 3129-002
      • Terminal Block Cover - 2 Position
      • 3-5 Day Lead Time
      See More Details
      $19.00
      85. 98====
    85. Doorking 3129-008 Terminal Block Cover - 8 Position
      Doorking 3129-008 Terminal Block Cover - 8 Position
      DKS-3129-008 3129-008
      • Terminal Block Cover - 8 Position
      • 3-5 Day Lead Time
      See More Details
      $19.00
      86. 98====
    86. DoorKing 3130-023 Terminal Strip - 8 Row Screw
      DoorKing 3130-023 Terminal Strip - 8 Row Screw
      DKS-3130-023 3130-023
      • Terminal Strip - 8 Row Screw
      • 3-5 Day Lead Time
      See More Details
      $40.00
      87. 98====
    87. DoorKing 4001-020 Terminal - 20 Pin
      DoorKing 4001-020 Terminal - 20 Pin
      DKS-4001-020 4001-020
      • Terminal - 20 Pin
      • 3-5 Day Lead Time
      See More Details
      $59.75
      88. 98====
    88. DoorKing 4001-035
      DoorKing 4001-035 Lock & Keys
      DKS-4001-035 4001-035
      • Lock N16058BDxSFx2K Key 16120
      • Includes Lock & 2 Keys
      • 3-5 Day Lead Time
      See More Details
      $37.00
      89. 98====
    89. DoorKing 4001-093 MOV Assembly - 130VAC
      DoorKing 4001-093 MOV Assembly - 130VAC
      DKS-4001-093 4001-093
      • MOV Assembly - 130VAC
      • 3-5 Day Lead Time
      See More Details
      $20.50
      90. 98====
    90. Doorking 9000-123 Release Lever - Gearbox
      Doorking 9000-123 Release Lever - Gearbox
      DKS-9000-123 9000-123
      • Release Lever - Gearbox
      • 3-5 Day Lead Time
      See More Details
      $51.75
      91. 98====
    91. Doorking 9000-125 Release Lever Block
      Doorking 9000-125 Release Lever Block
      DKS-9000-125 9000-125
      • Release Lever Block
      • 3-5 Day Lead Time
      See More Details
      $40.00
      92. 98====
    92. DoorKing 9310-301 Bracket - Partial Limit Mount
      DoorKing 9310-301 Bracket - Partial Limit Mount
      DKS-9310-301 9310-301
      • Bracket - Partial Limit Mount
      • For 9310
      • 3-5 Day Lead Time
      See More Details
      $18.75
      93. 98====
    93. Doorking 9350-100 Enclosure
      Doorking 9350-100 Enclosure
      DKS-9350-100 9350-100
      • Enclosure
      • 3-5 Day Lead Time
      See More Details
      $325.00
      94. 98====
    94. Doorking 9350-140 Cover - Lock Panel
      Doorking 9350-140 Cover - Lock Panel
      DKS-9350-140 9350-140
      • Cover - Lock Panel
      • 3-5 Day Lead Time
      See More Details
      $100.75
      95. 98====
    95. Doorking 9350-150 Base Stand
      Doorking 9350-150 Base Stand
      DKS-9350-150 9350-150
      • Base Stand
      • For 9000
      • 3-5 Day Lead Time
      See More Details
      $749.00
      96. 98====
    96. Doorking 9350-152 Limit Box Stand
      Doorking 9350-152 Limit Box Stand
      DKS-9350-152 9350-152
      • Limit Box Stand
      • 3-5 Day Lead Time
      See More Details
      $183.50
      97. 98====
    97. Doorking 9350-175 Door Access Frame
      Doorking 9350-175 Door Access Frame
      DKS-9350-175 9350-175
      • Door Access Frame
      • 3-5 Day Lead Time
      See More Details
      $225.50
      98. 98====
    98. Doorking 9350-179 Cover - Operator
      Doorking 9350-179 Cover - Operator
      DKS-9350-179 9350-179
      • Cover - Operator
      • For 9000
      • 3-5 Day Lead Time
      See More Details
      $463.50
    Reviews
    Write Your Own Review
    Only registered users can write reviews. Please Sign in or create an account

    Cancel Continue Shopping
    @ Copyright 2021 Gate Depot @ Martrano Enterprises, LLC All rights reserved. No part of this site can be reproduced in any form or by any means, mechanical or electronic, without the prior written consent of Gate Depot
