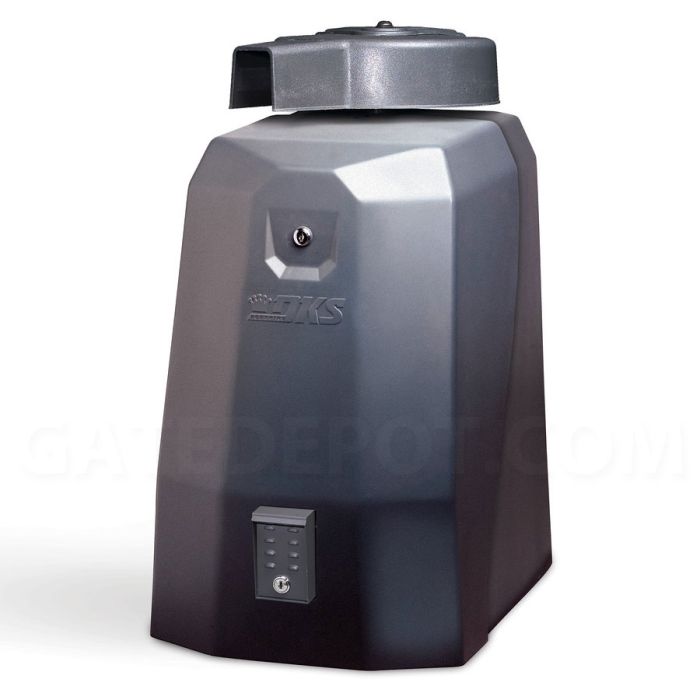

DoorKing 6500 Swing Gate Operator - 1/2 HP

Be the first to review this product

• 18' x 700 Lbs • 115/208/230/460/575VAC Power Source • 115VAC Operating Voltage • Opens 90° ~ 16 Seconds • Continuous Duty - 60 Cycles per Hour • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time

From $2,885.00

To $7,209.80

SKU

DKS-6500-1-2-hp-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize DoorKing 6500 Swing Gate Operator - 1/2 HP

DoorKing 6500 1/2HP Swing Gate Operator - Select Primary & Secondary For Dual Gates

DoorKing 6500-380 Primary Swing Gate Operator - 1/2 HP $2,885.00

GD# DKS-6500-380 MFR# 6500-380

Quantity

DoorKing 6500-381 Secondary Swing Gate Operator - 1/2 HP $2,679.00

• Secondary Operator w/ 50' of Cable • 3-5 Day Lead Time

GD# DKS-6500-381 MFR# 6500-381

Quantity

Secondary Entrapment Prevention Devices - REQUIRED

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options

Seco-Larm E-936-S45RRGQ Enforcer Reflective Photo Eye - 45' $72.95

• 45 Ft. Range • 12-30V AC/DC • Weatherproof IP66 Housing • ETL UL325-2016 Compliant • 1-Year Manufacturer Warranty

GD# SCL-e-936-s45rrgq MFR# E-936-S45RRGQ

Quantity

High Voltage Kit

Allows the operator to be powered from 208, 230, 460, or 575 voltage source. For dual gate operators, only one kit is needed. REQUIRED FOR VOLTAGES OVER 115VAC

DoorKing 2600-266 High Voltage Kit $477.25

• Required for voltages greater than 115 VAC • 3-5 Day Lead Time

GD# DKS-2600-266 MFR# 2600-266

Quantity

Receiver and Remotes

LiftMaster 811LMX-MC Transmitter - 1 Button $17.50

• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch

GD# LFM-811lmx-mc MFR# 811LMX-MC

Quantity

LiftMaster 850LM-MC Receiver - 3 Channel / Universal $68.50

• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty

GD# LFM-850lm-mc MFR# 850LM-MC

Quantity

Hardwired Keypad

Doorking 1515-081 Stand-Alone Keypad - Surface Mount w/ Stainless Steel Faceplate $385.25

• Surface Mount • Use cell phone or keypad for entry • Stores up to 400 codes, 4 or 5 digit • Program from the keypad or from an Android Smartphone with the DKS Manager App • Wrong code lockout settable from 3-9 tries and 1-9 minutes • Low power mode for solar applications • Single Form C dry contact relay • Operates on 12 to 24 volt AC or DC power • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1515-081 MFR# 1515-081

Quantity

Wireless Keypad

Liftmaster KPW250-MC Wireless Keypad - Universal $243.25

• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys

GD# LFM-kpw250-mc MFR# KPW250-MC

Quantity

Liftmaster KPW5-MC Wireless Keypad $144.75

• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys

GD# LFM-kpw5-mc MFR# KPW5-MC

Quantity

Exit Wand

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead $138.75

• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA

GD# EMX-2805-1 MFR# EMX-2805-1

Quantity

Fuse and Surge Protector - Recommended For New Installations

Ditek DTK-120HW Surge Protector $85.60

• 120VAC hardwired, single circuit, parallel connection • Protects against power surges and spikes

GD# DTK-120-hw MFR# DTK-120-HW

Quantity

Duragate FUSE-7.5 Fuse w/ Fuse Holder - 7.5 Amp $6.00

• 7.5 Amp Fuse and Fuse Holder • For 1/2 HP Single Gate Operators

GD# DGT-fuse-7.5 MFR# FUSE-7.5

Quantity

Duragate FUSE-10 Fuse w/ Fuse Holder - 10 Amp $6.00

• 10 Amp Fuse and Fuse Holder • For Dual Gate Operators, Install in the Master Unit

GD# DGT-fuse-10 MFR# FUSE-10

Quantity

* Required Fields

Your Customization

DoorKing 6500 1/2 HP Swing Gate Operator

DoorKing 6500 Swing Gate Operator - 1/2 HP

In stock

Qty

$2,885.00

Summary

Overview

Product Details

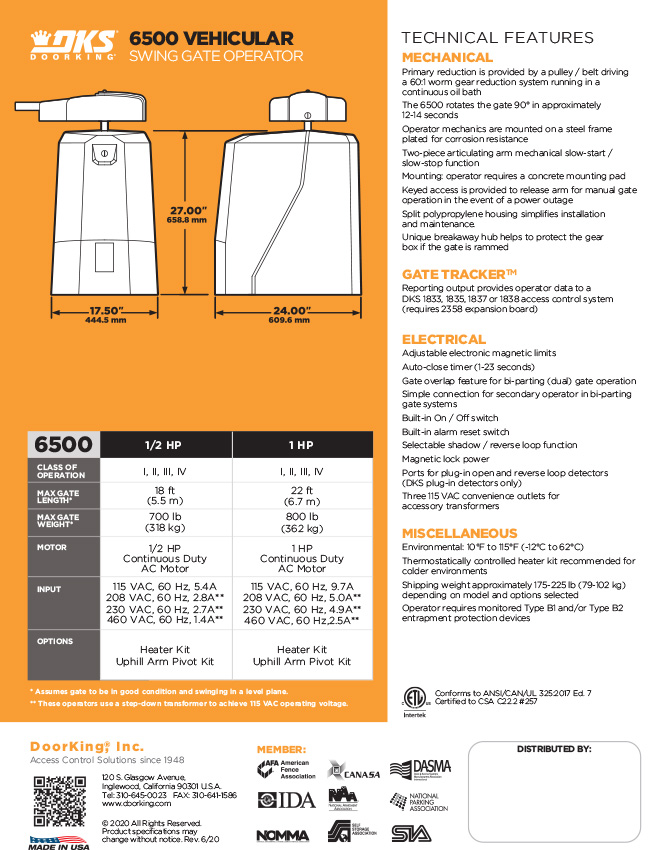

The 6500 Series Operators are designed to operate Vehicular Swing Gates in residential, commercial and industrial applications for both single and bi-parting gates. The Operator swings gates 90 degrees in approximately 12-14 seconds.

The unique design of this Operator allows for easy access to the electronics and mechanical areas of the Operator without ever having to remove the gate arm. The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt-driven gear box make this operator one of the quietest on the market today

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

Adjustable, no maintenance magnetic limits
Overlap feature for bi-parting swing gate operation
Simple connection for secondary operator in bi-parting applications
Selectable shadow/reverse loop function
Magnetic lock power provided
Ports for plug-in loop detectors
Three 115 VAC convenience outlets
Gate tracker reporting output
Programming switches
Built-in reset switch
Built-in power On/Off switch
Maximum gate width 18-ft. (1/2 HP) or 22-ft. (1 HP)
Maximum gate weight 700 pounds* (1/2 HP) or 800 pounds* (1 HP). (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
Swings gate 90 degrees in approximately 12-14 seconds
1/2 or 1 HP continuous-duty motor
115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
Class I, II, III and IV applications
Compliant with UL 325 and 991, ETL Listed
Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator

Options

Primary / secondary connection cable (secondary operator is shipped with 50-feet of cable)
Plug-in loop detectors
Heater kit for cold environments
Surge suppressors
Uphill arm pivot assembly and torsion rod assembly

MADE IN USA

Specification

Specifiction
Brand	Doorking

Accessories

Showcased Accessories

Manuals & Resources

Replacement Parts

Duragate FUSE-10 Fuse w/ Fuse Holder - 10 Amp

GD# DGT-fuse-10 MFR# FUSE-10

• 10 Amp Fuse and Fuse Holder
• For Dual Gate Operators, Install in the Master Unit
See More Details

$6.00
Duragate FUSE-7.5 Fuse w/ Fuse Holder - 7.5 Amp

GD# DGT-fuse-7.5 MFR# FUSE-7.5

• 7.5 Amp Fuse and Fuse Holder
• For 1/2 HP Single Gate Operators
See More Details

$6.00
Doorking 1200-023 Outlet - Snap-In / Qualtek

GD# DKS-1200-023 MFR# 1200-023

• Outlet - Snap-In / Qualtek
• 3-5 Day Lead Time
See More Details

$11.25
DoorKing 1200-028 Outlet

GD# DKS-1200-028 MFR# 1200-028

• Outlet, Snap-In
• 3-5 Day Lead Time
See More Details

$13.00
Doorking 1400-021 Switch - Push Button / Snap-in

GD# DKS-1400-021 MFR# 1400-021

• Switch - Push Button / Snap-in - Black
• 3-5 Day Lead Time
See More Details

$33.25
DoorKing 1506-071 Entrapment Alarm Buzzer

GD# DKS-1506-071 MFR# 1506-071

• Tone Generator
• 3-5 Day Lead Time
See More Details

$53.50
DoorKing 1601-040 Toggle Switch - ON-OFF-MOMENTARY

GD# DKS-1601-040 MFR# 1601-040

• Toggle Switch - ON-OFF-MOMENTARY
• 3-5 Day Lead Time
See More Details

$41.00
DoorKing 1601-041 Toggle Switch - SPST 2 Pos

GD# DKS-1601-041 MFR# 1601-041

• Toggle Switch - SPST 2 Position
• 3-5 Day Lead Time
See More Details

$20.75
DoorKing 1601-140 Toggle Switch - 2 Pole On-Off

GD# DKS-1601-140 MFR# 1601-140

• Toggle Switch - 2 Pole On-Off
• 3-5 Day Lead Time
See More Details

$34.25
DoorKing 1601-261 Switch - Magnetic Sensor

GD# DKS-1601-261 MFR# 1601-261

• Magnetic Sensor Switch
• 3-5 Day Lead Time
See More Details

$23.50
DoorKing 1601-263 Switch - Magnetic Sensor Recess Yellow

GD# DKS-1601-263 MFR# 1601-263

• Magnetic Sensor Switch
• Recess Yellow
• 3-5 Day Lead Time
See More Details

$23.50
Doorking 1702-505 Cam - 9/16"

GD# DKS-1702-505 MFR# 1702-505

• Cam - 9/16"
• 3-5 Day Lead Time
See More Details

$5.70
DoorKing 1702-507 Cam - J Hook

GD# DKS-1702-507 MFR# 1702-507

• Cam "J" Hook
• 3-5 Day Lead Time
See More Details

$7.80
DoorKing 1812-005 Switch Push Button

GD# DKS-1812-005 MFR# 1812-005

• Switch Push Button N.O.
• 3-5 Day Lead Time
See More Details

$36.00
DoorKing 2343-010 PCB Current Sensor

GD# DKS-2343-010 MFR# 2343-010

• PCB Current Sensor
• 3-5 Day Lead Time
See More Details

$51.75
DoorKing 2600-054 Spacer - 3/4" OD x 1/2" ID x 1-1/8" L

GD# DKS-2600-054 MFR# 2600-054

• Spacer - 3/4" OD x 1/2" ID x 1-1/8" L
• 3-5 Day Lead Time
See More Details

$18.25
DoorKing 2600-102 Motor Capacitor

GD# DKS-2600-102 MFR# 2600-102

• Replacement Motor Capacitor
• For 6050 / 6100
• 3-5 Day Lead Time
See More Details

$77.00
DoorKing 2600-124 Motor Assembly - 1/2 HP Dual Pulley

GD# DKS-2600-124 MFR# 2600-124

• Motor Assembly - 1/2 HP Dual Pulley
• 3-5 Day Lead Time
See More Details

$269.50
DoorKing 2600-129 Motor Assembly - 1/2 HP

GD# DKS-2600-129 MFR# 2600-129

• Motor Assembly - 1/2 HP
• For 6100 / 9100
• 3-5 Day Lead Time
See More Details

$266.00
DoorKing 2600-197 Motor - Battery Backup 24VDC

GD# DKS-2600-197 MFR# 2600-197

• Motor - 24VDC
• For Battery Backup
• 3-5 Day Lead Time
See More Details

$237.50
DoorKing 2600-413 Terminal - Block-3 Position

GD# DKS-2600-413 MFR# 2600-413

• Terminal Block - 3 Position
• 3-5 Day Lead Time
See More Details

$7.80
DoorKing 2600-414 Terminal - Block-2 Position

GD# DKS-2600-414 MFR# 2600-414

• Terminal Block - 2 Position
• 3-5 Day Lead Time
See More Details

$14.00
DoorKing 2600-439 Washer Cup - Brass

GD# DKS-2600-439 MFR# 2600-439

• Washer Cup - Brass
• 3-5 Day Lead Time
See More Details

$8.60
DoorKing 2600-533 Cover - Switch

GD# DKS-2600-533 MFR# 2600-533

• Lockable Switch Cover
• 3-5 Day Lead Time
See More Details

$46.75
DoorKing 2600-597 Pulley - 13" x 7/8" Cast Iron AK134

GD# DKS-2600-597 MFR# 2600-597

• Pulley - 13" x 7/8" Cast Iron AK134
• 3-5 Day Lead Time
See More Details

$159.50
DoorKing 2600-714 Connecting Rod - 1" x 2" x 60"

GD# DKS-2600-714 MFR# 2600-714

• Connecting Rod - 1" x 2" x 60"
• 3-5 Day Lead Time
See More Details

$77.00
DoorKing 2600-720 Crank Arm Joint Assembly

GD# DKS-2600-720 MFR# 2600-720

• Crank Arm Joint Assembly - Black
• 3-5 Day Lead Time
See More Details

$144.00
DoorKing 2600-731 Cover - Gasket Switch

GD# DKS-2600-731 MFR# 2600-731

• Gasket Switch Cover
• 3-5 Day Lead Time
See More Details

$6.25
DoorKing 2600-810 Bushing - 7/8" Poke Thru Flaps

GD# DKS-2600-810 MFR# 2600-810

• Bushing - 7/8" Poke Thru Flaps
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2600-838 Motor Base - 1/2 HP

GD# DKS-2600-838 MFR# 2600-838

• Motor Base - 1/2 HP
• 3-5 Day Lead Time
See More Details

$31.25
DoorKing 2600-875 Clamp - Capacitor

GD# DKS-2600-875 MFR# 2600-875

• Capacitor Mounting Clamp
• 3-5 Day Lead Time
See More Details

$12.25
Doorking 2601-348 Space Cover - Left

GD# DKS-2601-348 MFR# 2601-348

• Space Cover - Left
• 3-5 Day Lead Time
See More Details

$34.75
DoorKing 2615-005 Bolt - Hex Head - 1/4-20 x 1

GD# DKS-2615-005 MFR# 2615-005

• Bolt - Hex Head
• 1/4-20 x 1
• 3-5 Day Lead Time
See More Details

$5.15
DoorKing 2615-052 Bolt - Hex Head - 3/8-16 x 1

GD# DKS-2615-052 MFR# 2615-052

• Bolt - Hex Head
• 3/8-16 x 1
• 3-5 Day Lead Time
See More Details

$5.15
DoorKing 2615-053 Bolt - Hex Head - 3/8-16 x 1-1/4

GD# DKS-2615-053 MFR# 2615-053

• Bolt - Hex Head
• 3/8-16 x 1 1/4
• 3-5 Day Lead Time
See More Details

$5.70
DoorKing 2615-084 Bolt - Hex Head - 1/2-13 x 2-1/2

GD# DKS-2615-084 MFR# 2615-084

• Bolt - Hex Head
• 1/2-13 x 2 1/2
• 3-5 Day Lead Time
See More Details

$8.25
DoorKing 2615-086 Bolt - Hex Head - 1/2-13 x 3

GD# DKS-2615-086 MFR# 2615-086

• Bolt - Hex Head
• 1/2-13 x 3
• 3-5 Day Lead Time
See More Details

$6.55
DoorKing 2615-153 Bolt - Hex Head - 5/16-18 x 3/4

GD# DKS-2615-153 MFR# 2615-153

• Bolt - Hex Head
• 5/16-18 x 3/4
• 3-5 Day Lead Time
See More Details

$4.70
Doorking 2615-430 Bolt - Hex Head - 3/8-16 x 3/4 SS

GD# DKS-2615-430 MFR# 2615-430

• Bolt - Hex Head - 3/8-16 x 3/4 SS
• 3-5 Day Lead Time
See More Details

$9.85
DoorKing 2615-605 Bolt - Carriage - 10-32 x 1/2

GD# DKS-2615-605 MFR# 2615-605

• Bolt - Carriage
• 10-32 x 1/2
• 3-5 Day Lead Time
See More Details

$7.05
DoorKing 2615-625 Bolt - Carriage - 1/4-20 x 1/2

GD# DKS-2615-625 MFR# 2615-625

• Bolt - Carriage
• 1/4-20 x 1/2
• 3-5 Day Lead Time
See More Details

$4.70
DoorKing 2615-883 Bolt - Button Socket - 1/2-13 x 1 1/2

GD# DKS-2615-883 MFR# 2615-883

• Bolt - Button Socket
• 1/2-13 x 1 1/2
• 3-5 Day Lead Time
See More Details

$7.10
DoorKing 2616-000 Screw - Phillips Head - 6-32 x 1/4

GD# DKS-2616-000 MFR# 2616-000

• Screw - Phillips Head - 6-32 x 1/4
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8

GD# DKS-2616-001 MFR# 2616-001

• Screw - Phillips Head - 6-32 x 3/8
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-002 Screw - Phillips Head - 6-32 x 1/2

GD# DKS-2616-002 MFR# 2616-002

• Screw - Phillips Head - 6-32 x 1/2
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4

GD# DKS-2616-003 MFR# 2616-003

• Screw - Phillips Head - 6-32 x 3/4
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2616-007 Screw - Phillips Head - 6-32 x 5/8

GD# DKS-2616-007 MFR# 2616-007

• Screw - Phillips Head - 6-32 x 5/8
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2616-018 Screw - Phillips Head - 8-32 x 1/2

GD# DKS-2616-018 MFR# 2616-018

• Screw - Phillips Head - 8-32 x 1/2
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-051 Screw - Phillips Head - 10-32 x 3/8

GD# DKS-2616-051 MFR# 2616-051

• Screw - Phillips Head - 10-32 x 3/8
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-058 Screw - Phillips Head - 10-32 x 2

GD# DKS-2616-058 MFR# 2616-058

• Screw - Phillips Head - 10-32 x 2
• 3-5 Day Lead Time
See More Details

$5.10
Doorking 2616-060 Screw - Phillips Head - 10-32 x 2-1/2

GD# DKS-2616-060 MFR# 2616-060

• Screw - Phillips Head - 10-32 x 2-1/2
• 3-5 Day Lead Time
See More Details

$5.50
Doorking 2616-088 Set Screw - 1/4-20 x 5/16 SS

GD# DKS-2616-088 MFR# 2616-088

• Set Screw - 1/4-20 x 5/16 SS
• 3-5 Day Lead Time
See More Details

$5.40
DoorKing 2616-097 Set Screw - 5/16-18 x 3/8

GD# DKS-2616-097 MFR# 2616-097

• Set Screw - 5/16-18 x 3/8
• 3-5 Day Lead Time
See More Details

$5.90
DoorKing 2616-580 Nut - Barrel - 5/16-18

GD# DKS-2616-580 MFR# 2616-580

• Nut - Barrel - 5/16-18
• 3-5 Day Lead Time
See More Details

$17.25
DoorKing 2620-010 Washer - #10 SAE

GD# DKS-2620-010 MFR# 2620-010

• Washer - #10 SAE
• 3-5 Day Lead Time
See More Details

$4.30
DoorKing 2620-019 Washer - Flat 3/8" SAE

GD# DKS-2620-019 MFR# 2620-019

• Washer - Flat 3/8" SAE
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2620-021 Washer - 1/2" SAE

GD# DKS-2620-021 MFR# 2620-021

• Washer - 1/2 " SAE
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2620-030 Washer - 1/2" USS

GD# DKS-2620-030 MFR# 2620-030

• Washer - 1/2" USS
• 3-5 Day Lead Time
See More Details

$5.15
DoorKing 2620-047 Lockwasher - 3/8"

GD# DKS-2620-047 MFR# 2620-047

• Lockwasher - 3/8"
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2620-050 Lockwasher - 1/2"

GD# DKS-2620-050 MFR# 2620-050

• Lockwasher - 1/2"
• 3-5 Day Lead Time
See More Details

$4.70
DoorKing 2620-053 Lockwasher - 5/16"

GD# DKS-2620-053 MFR# 2620-053

• Lockwasher - 5/16"
• 3-5 Day Lead Time
See More Details

$4.35
Doorking 2620-075 Washer - 1-5/8" OD x 1-1/8" ID SS

GD# DKS-2620-075 MFR# 2620-075

• Washer - 1-5/8" OD x 1-1/8" ID SS
• 3-5 Day Lead Time
See More Details

$15.50
DoorKing 2620-109 Split Lockwasher - 1/4"

GD# DKS-2620-109 MFR# 2620-109

• Split Lockwasher - 1/4"
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2620-320 Nut - Center Lock - 1/2-13

GD# DKS-2620-320 MFR# 2620-320

• Nut - Center Lock - 1/2-13
• 3-5 Day Lead Time
See More Details

$5.10
DoorKing 2620-328 Nut - Center Lock - 5/16-18

GD# DKS-2620-328 MFR# 2620-328

• Nut - Center Lock - 5/16-18
• 3-5 Day Lead Time
See More Details

$4.40
DoorKing 2620-405 Nut - Hex - 3/8-16

GD# DKS-2620-405 MFR# 2620-405

• Nut - Hex - 3/8-16
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2620-409 Nut - Hex Flange Lock - 1/4-20

GD# DKS-2620-409 MFR# 2620-409

• Nut - Hex Flange Lock - 1/4-20
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2620-411 Nut - Hex Flange Lock - 5/16-18

GD# DKS-2620-411 MFR# 2620-411

• Nut - Hex Flange Lock - 5/16-18
• 3-5 Day Lead Time
See More Details

$4.75
DoorKing 2620-420 Nut - Hex - 1/2-13

GD# DKS-2620-420 MFR# 2620-420

• Nut - Hex - 1/2-13
• 3-5 Day Lead Time
See More Details

$4.95
DoorKing 2902-003 Nut - Nylon Lock - 6-32

GD# DKS-2902-003 MFR# 2902-003

• Nut - Nylon Lock - 6-32
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2902-004 Nut - Nylon Lock - 8-32

GD# DKS-2902-004 MFR# 2902-004

• Nut - Nylon Lock - 8-32
• 3-5 Day Lead Time
See More Details

$4.50
DoorKing 2902-006 Nut - Nylon Lock - 10-32

GD# DKS-2902-006 MFR# 2902-006

• Nut - Nylon Lock - 10-32
• 3-5 Day Lead Time
See More Details

$4.40
DoorKing 2902-007 Nut - Keps - 5/16 x 18

GD# DKS-2902-007 MFR# 2902-007

• Nut - Keps - 5/16 x 18
• 3-5 Day Lead Time
See More Details

$5.35
DoorKing 2902-010 Nut - Nylon Lock - 8-32 Green

GD# DKS-2902-010 MFR# 2902-010

• Nut - Nylon Lock - 8-32 Green
• 3-5 Day Lead Time
See More Details

$5.65
DoorKing 3004-020 Magnetic Counter Probe

GD# DKS-3004-020 MFR# 3004-020

• Magnetic Counter Probe
• 3-5 Day Lead Time
See More Details

$151.75
DoorKing 3129-002 Cover - Terminal Block 2 Position

GD# DKS-3129-002 MFR# 3129-002

• Terminal Block Cover - 2 Position
• 3-5 Day Lead Time
See More Details

$19.00
DoorKing 3129-005 Cover - Terminal Block 5 Position

GD# DKS-3129-005 MFR# 3129-005

• Terminal Block Cover - 5 Position
• 3-5 Day Lead Time
See More Details

$17.50
Doorking 3129-008 Terminal Block Cover - 8 Position

GD# DKS-3129-008 MFR# 3129-008

• Terminal Block Cover - 8 Position
• 3-5 Day Lead Time
See More Details

$19.00
DoorKing 3130-023 Terminal Strip - 8 Row Screw

GD# DKS-3130-023 MFR# 3130-023

• Terminal Strip - 8 Row Screw
• 3-5 Day Lead Time
See More Details

$40.00
DoorKing 4001-020 Terminal - 20 Pin

GD# DKS-4001-020 MFR# 4001-020

• Terminal - 20 Pin
• 3-5 Day Lead Time
See More Details

$59.75
DoorKing 4001-035 Lock & Keys

GD# DKS-4001-035 MFR# 4001-035

• Lock N16058BDxSFx2K Key 16120
• Includes Lock & 2 Keys
• 3-5 Day Lead Time
See More Details

$37.00
DoorKing 4001-093 MOV Assembly - 130VAC

GD# DKS-4001-093 MFR# 4001-093

• MOV Assembly - 130VAC
• 3-5 Day Lead Time
See More Details

$20.50
DoorKing 4405-018 Control Board

GD# DKS-4405-018 MFR# 4405-018

• Replacement Circuit Board
• For 1175 / 6500 / 6550 / 9000
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$473.00
DoorKing 6500-018 Belt - 4L180 / 18"

GD# DKS-6500-018 MFR# 6500-018

• Belt - 4L180 / 18"
• 3-5 Day Lead Time
See More Details

$48.00
Doorking 6500-025 Bolt - Center Tapped

GD# DKS-6500-025 MFR# 6500-025

• Bolt - Center Tapped
• 3-5 Day Lead Time
See More Details

$18.00
DoorKing 6500-043 Wire Set

GD# DKS-6500-043 MFR# 6500-043

• Wire Set
• 3-5 Day Lead Time
See More Details

$58.00
DoorKing 6500-044 Wire Set - Hi Voltage

GD# DKS-6500-044 MFR# 6500-044

• Wire Set - Hi Voltage
• 3-5 Day Lead Time
See More Details

$15.50
DoorKing 6500-047 Belt - 47 4L470

GD# DKS-6500-047 MFR# 6500-047

• Belt - 47 4L470
• 3-5 Day Lead Time
See More Details

$70.00
DoorKing 6500-100 Housing - Control Board

GD# DKS-6500-100 MFR# 6500-100

• Swinger Control Board Box
• 3-5 Day Lead Time
See More Details

$287.00
Doorking 6500-121 Capacitor Plate

GD# DKS-6500-121 MFR# 6500-121

• Capacitor Plate
• 3-5 Day Lead Time
See More Details

$50.25
DoorKing 6500-200 Hub Clutch Release Tool

GD# DKS-6500-200 MFR# 6500-200

• Hub Clutch Release Tool
• 3-5 Day Lead Time
See More Details

$32.75
DoorKing 6500-400 Hub Sub Assembly - 1/2 HP

GD# DKS-6500-400 MFR# 6500-400

• Hub Sub Assembly - 1/2 HP
• 3-5 Day Lead Time
See More Details

$535.00
DoorKing 6500-430 Sub Assembly - Arm Main

GD# DKS-6500-430 MFR# 6500-430

• Main Arm Sub Assembly
• 3-5 Day Lead Time
See More Details

$557.00
DoorKing 6500-440 Sub Assembly - Cover Turret

GD# DKS-6500-440 MFR# 6500-440

• Sub Assembly - Cover Turret
• 3-5 Day Lead Time
See More Details

$246.25
DoorKing 6500-450 Cover - Front w/ Hardware

GD# DKS-6500-450 MFR# 6500-450

• Cover - Front w/ Hardware
• 3-5 Day Lead Time
See More Details

$266.00
DoorKing 6500-460 Cover - Back w/ Labels

GD# DKS-6500-460 MFR# 6500-460

• Cover - Back w/ Labels
• 3-5 Day Lead Time
See More Details

$196.75
Doorking 9350-100 Enclosure

GD# DKS-9350-100 MFR# 9350-100

• Enclosure
• 3-5 Day Lead Time
See More Details

$325.00
