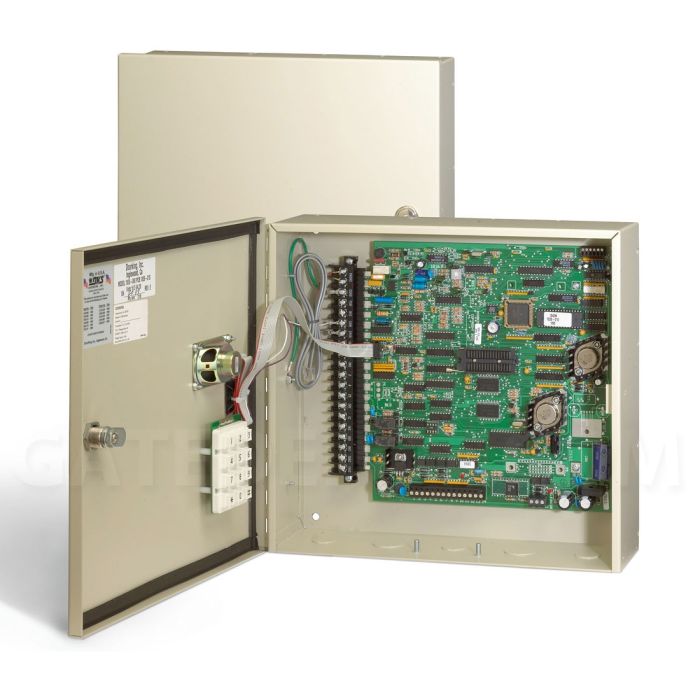

DoorKing 1838 Multi-Entry Door Controller

Be the first to review this product

• 3,000 User Names / 3,000 Entry Codes / 8,000 Device Codes • Control up to 48 additional entry points • PC Programmable • 2 Relays / 2 Wiegand Inputs • Elevator Control • Cellular, Internet, or POTS Connections • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

From $1,390.00

To $11,401.56

SKU

DKS-1838-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize DoorKing 1838 Multi-Entry Door Controller

DoorKing 1838 Controller

DoorKing 1838-081 Multi-Entry Door Controller $1,390.00

GD# DKS-1838-081 MFR# 1838-081

Quantity

Keypad

More Options in Accessories

DoorKing 1815-051 Keypad - Surface Mount w/ Stainless Steel Faceplate $394.75

• Surface Mount w/ Stainless Steel Faceplate • Output format is 26-bit wiegand • 2 Year Limited Manufacturer Warranty • Not stand-alone - for use with an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-051 MFR# 1815-051

Quantity

Card Reader

More Options in Accessories

DoorKing 1815-330 RFID Proximity Reader - DK Prox - Surface Mount Enclosure / 3" Range $199.00

• Surface Mount Enclosure w/ 3" Range • 26-bit Wiegand Output • 125kHz • 5 Year Limited Manufacturer Warranty • Not a Stand-Alone unit, must be connected to an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-330 MFR# 1815-330

Quantity

DoorKing 1815-333 RFID Proximity Reader - DK Prox - Surface Mount Enclosure / 3" Range & Expansion Board $595.00

• Surface Mount Enclosure w/ 3" Range & Tracker Expansion Board • 26-bit Wiegand Output • 125kHz • 5 Year Limited Manufacturer Warranty • Not a Stand-Alone unit, must be connected to an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-333 MFR# 1815-333

Quantity

DoorKing 1508-120 RFID Proximity Cards - DK Prox / Clamshell $3.57

• DK Prox Card, Clamshell - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-120 MFR# 1508-120

Quantity

DoorKing 1508-123 RFID Proximity Key Fobs - DK Prox $5.29

• DK Prox Card, Keyfob - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-123 MFR# 1508-123

Quantity

Call Stations

More options in accessories

DoorKing 1838-120 Call Station w/ Keypad $618.00

• Weigand Output • Provides voice communication to a single telephone station via the telephone network • Requires a Central Office (C.O.) dedicated phone line connected to the 1838 • Distance between the Remote Call Station and the 1838 is limited to 500 feet • Dimensions: 7.375"h x 11"w x 6.375"d • 3-5 Day Lead Time

GD# DKS-1838-120 MFR# 1838-120

Quantity

DoorKing 1838-124 Remote Call Station w/ Card Reader - DK Prox $446.50

• Remote Call Station with DK Prox Card Reader • 3-5 Day Lead Time

GD# DKS-1838-124 MFR# 1838-124

Quantity

Long Range Tag Reader

DoorKing 1815-350 Long Range Reader - DK Prox / AVI - 25' $2,077.00

• Adjustable read range: 8 ft to 25 ft • Two different operating modes: timing and trigger • Uses frequency hopping technology in the UHF frequency band (902 - 928 MHz) • Adjustable timing intervals between consecutive readings of same tag • Uses passive tags - no batteries to worry about • Dual technology cards are available allowing a single card to be used with both AVI and standard DK Prox readers • 5 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1815-350 MFR# 1815-350

Quantity

DoorKing 1508-198 RFID Proximity Cards - UHF DK Prox Dual Technology / ISO $10.02

• UHF DK Prox Dual Technology Card - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • For use with all DK Prox Card Readers • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-198 MFR# 1508-198

Quantity

DoorKing 1815-318 Windshield Holder $3.09

• Windshield Holder for Vehicle Access • 3-5 Day Lead Time

GD# DKS-1815-318 MFR# 1815-318

Quantity

DoorKing 1815-319 Rearview Mirror Holder $3.09

• Rearview Mirror Holder for Vehicle Access • 3-5 Day Lead Time

GD# DKS-1815-319 MFR# 1815-319

Quantity

Service Connection Options

Choose an option if not using a direct connection to PC/Laptop or POTS (Plain Old Telephone Service)

DoorKing 1800-080 Cellular Voice + Data $968.00

• DKS 4G-LTE Cellular Connection Adapter • Requires DKS Cellular Option Subscription • 4G-LTE Service Provided by AT&T where available • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1800-080 MFR# 1800-080

Quantity

DoorKing 1815-578 VoIP Adapter Kit - Voice Communication $124.50

• VoIP Adapter - Voice Communication • DKS Internet Option - Plug & Play • Requires DKS Internet Options Subscription • Works with 1830-186 TCP/IP Converter • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1815-578 MFR# 1815-578

Quantity

DoorKing 1830-186 TCP/IP Converter Kit - Plug & Play $177.00

• VoIP Adapter - Data Transfer • DKS Internet Option - Plug & Play • Requires DKS Internet Options Subscription • Works with 1815-568 VoIP Adapter Kit • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1830-186 MFR# 1830-186

Quantity

DoorKing 1830-185 TCP/IP Converter Kit - Manual $177.00

• TCP/IP Converter Kit • DKS Internet Option - Manual IP Configuration • Uses your provider subscription and hardware • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1830-185 MFR# 1830-185

Quantity

Programming Only Connection Options

Choose one for direct connection to PC or Laptop

DoorKing 1508-055 RS232 to RS422 Converter Kit $901.00

• RS232 to RS422 Conversion • Includes: - Cable - Null Modem - RS422 Converter - RS422 USB Adapter w/ USB cable and CD with necessary drivers • 3-5 Day Lead Time

GD# DKS-1508-055 MFR# 1508-055

Quantity

DoorKing 1815-037 USB to RS-232 Adapter $140.75

• Use With 1833, 1834, 1835, 1837 & 1838 • 3-5 Day Lead Time

GD# DKS-1815-037 MFR# 1815-037

Quantity

DoorKing 1818-040 RS-232 Cable $44.50

• Use With 1833, 1834, 1835, 1837 & 1838 • 3-5 Day Lead Time

GD# DKS-1818-040 MFR# 1818-040

Quantity

Expansion Options

For connecting additional readers/keypads or controlling additional doors. Base system allows for 2. Expansion board required for each additional access point.

DoorKing 2351-080 Tracker Expansion Enclosure w/ 1 Board $518.00

• One Board / Single Enclosure • Expands DKS access controllers to control up to 48 wired • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-080 MFR# 2351-080

Quantity

DoorKing 2351-082 Tracker Expansion Pre-Wired Quad Enclosure w/ 1 Boards $947.00

• One Board / Pre-Wired Quad Enclosure • Expands DKS access controllers to control up to 48 wired • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-082 MFR# 2351-082

Quantity

DoorKing 2358-010 Tracker Expansion Board $382.25

• Tracker Expansion Control Board • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2358-010 MFR# 2358-010

Quantity

Wireless Expansion Options

Use for wireless communication between door controller and access points.

DoorKing 2361-080 Wireless Baseboard Kit - 2.4 GHz $427.50

• Wireless Wiegand Connector / 2.4 GHz • Typical range is 500 feet line of sight • Includes 1514-075 antenna kit and a vandal resistant dome antenna • Optional repeaters for extended range (sold separately) • NOT A STAND-ALONE DEVICE. MUST BE INSTALLED ON 1833, 1835, 1837, OR 1838 • MUST BE USED IN CONJUNCTION WITH 1489-080 • Use of DUAL BAND repeaters (2372-080) recommended • 2 year Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-2361-080 MFR# 2361-080

Quantity

DoorKing 1489-080 Wireless Expansion Board Kit - 2.4 GHz $237.50

• Wireless Wiegand Connection / 2.4 GHz • Typical range is 500 feet line of sight • Includes 6" vandal resistant dome antenna • Optional repeaters for extended range (sold separately) • NOT A STAND-ALONE DEVICE. Must be installed on 2358 tracker board • MUST BE USED IN CONJUNCTION WITH 2361-080 • Use of DUAL BAND repeaters (2372-080) recommended • 2 year Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-1489-080 MFR# 1489-080

Quantity

DoorKing 2364-080 Repeater $238.50

• Extends the range when a single 1489 kit is in use • Housed in weather tight enclosure • Includes 6-inch antenna and 12 VDC power supply • 3-5 Day Lead Time

GD# DKS-2364-080 MFR# 2364-080

Quantity

DoorKing 2372-080 Dual Channel Repeater - 2.4 GHz $372.75

• 2.4 GHz • Dual Band provides easier install with greater signal strength • Repeaters are used with the Tracker Board wireless system to provide for extended ranges • Plastic, lockable, weather-tight enclosure • Includes 6" antenna and 12vdc power supply • • Extends the range when multiple 1489 kits are in use • 3-5 Day Lead Time

GD# DKS-2372-080 MFR# 2372-080

Quantity

* Required Fields

Your Customization

DoorKing 1838 Multi-Door Access Controller

DoorKing 1838 Multi-Entry Door Controller

In stock

Qty

$1,390.00

Summary

Overview

Product Details

The 1838 Multi-door Access Controller is ideal for small businesses, office buildings, factories, industrial sites, apartment complexes, or for any application that requires access control and reporting capabilities. The 1838 is a 3000 user, 2-door Controller that easily expands to control up to 48 doors with wired Tracker Expansion Boards (or 24 wirelessly). Each 1830 Series unit allows for a connection over Cellular, Internet or a POTS (Plain Old Telephone Service) connection. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. This flexible system allows access control to 8000 Device Codes by means of Cards, Keypads, Wireless RF Transmitters, or with almost any 26-bit Wiegand Device. DKS Remote Call Stations can also be added to the 1838 to provide communication from an entry point to a designated phone.

DKS remote call stations can also be added to the 1838 to provide communication from an entry point to a designated phone.

The 1838 MUlti-Door Access Controller can be connected for voice (where applicable) and programming by any of these methods:

DKS Cellular Option™ — 4G-LTE service (note 1)
DKS Internet Options™ — VoIP service (note 2)
DKS IM Server Modem™ — POTS Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular Option™ subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.

Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires DKS Internet Options™ subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.

Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using DKS IM Server Modem™ subscription (required). DoorKing does not recommend using a POTS line for programming the telephone entry system. DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.

Go to Connection Options for further details

Live Streaming
Live Transactions
Built-in programming keypad
Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (24 wirelessly)
Anti-pass back
8000 event transaction buffer
31 Security (permission) levels
Database import/export capability
Built-in clock/calendar
Holiday schedule
Hold open time zones
Entry code time zones
Postal lock input
Stores up to 3000 user names
Stores up to 255 area codes
Transaction buffer stores last 8000 events
Stores up to 8000 access card codes - dependent on system memory
31 security (permission) levels, 29 programmable with 4 time zones each
8 hold open time zones
Three anti-pass back configurations: passive, active and trap
Elevator control (note 1) for up to 8 elevators, each serving 64 floors
Expandable (note 2) to control up to 48 wired entry points (24 wirelessly)
4-digit entry codes, one for each telephone number
3 form "C" dry contact relays
EEPROM memory
Two 16 VAC, 20 VA power transformers supplied
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4528 A
Compliant with UL 294, ETL listed
Dimensions: 10.25"H x 12.25"W x 4.25"D

Note 1: Requires Elevator Control Board(s)
Note 2: Requires Tracker Expansion Board(s)

Specification

Specifiction
Brand	Doorking

Accessories

Showcased Accessories

Manuals & Resources

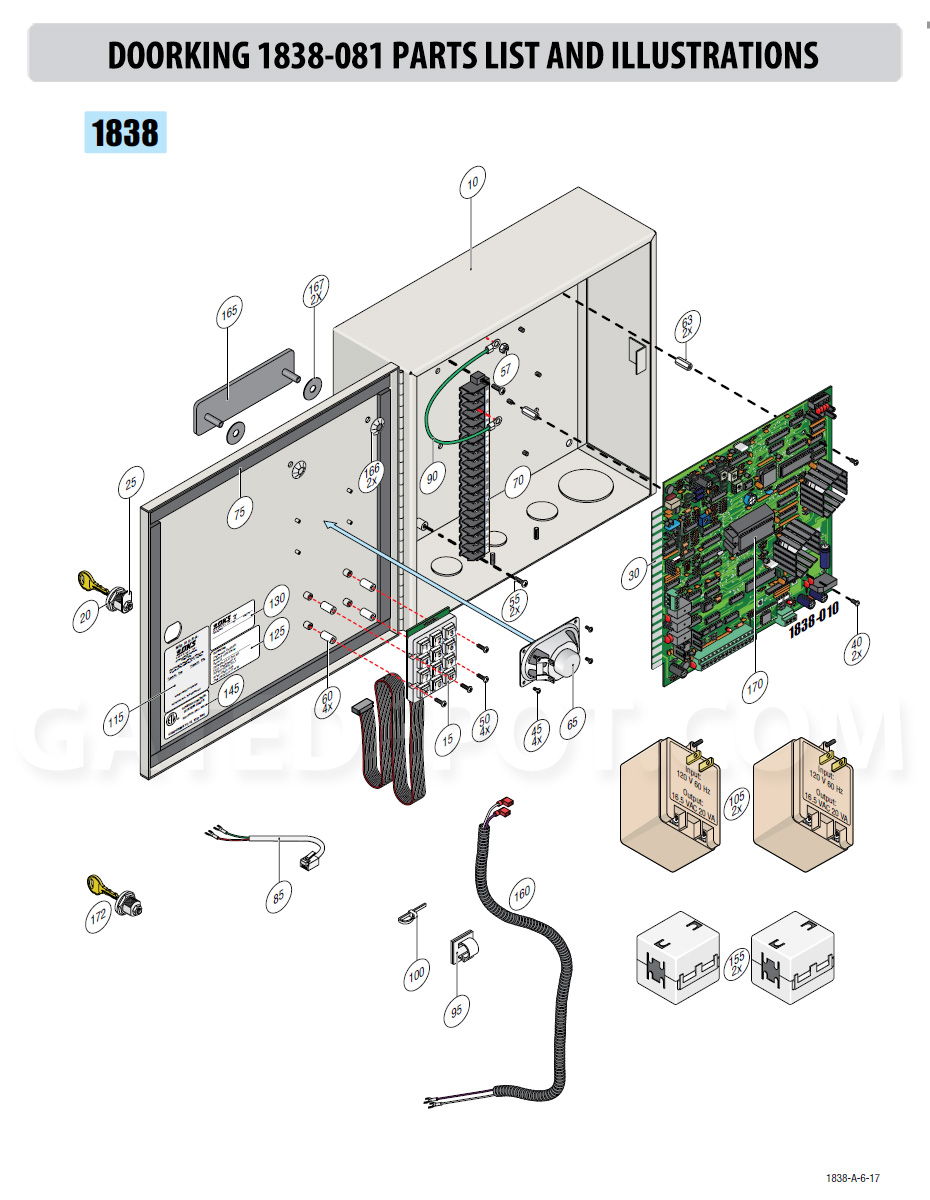

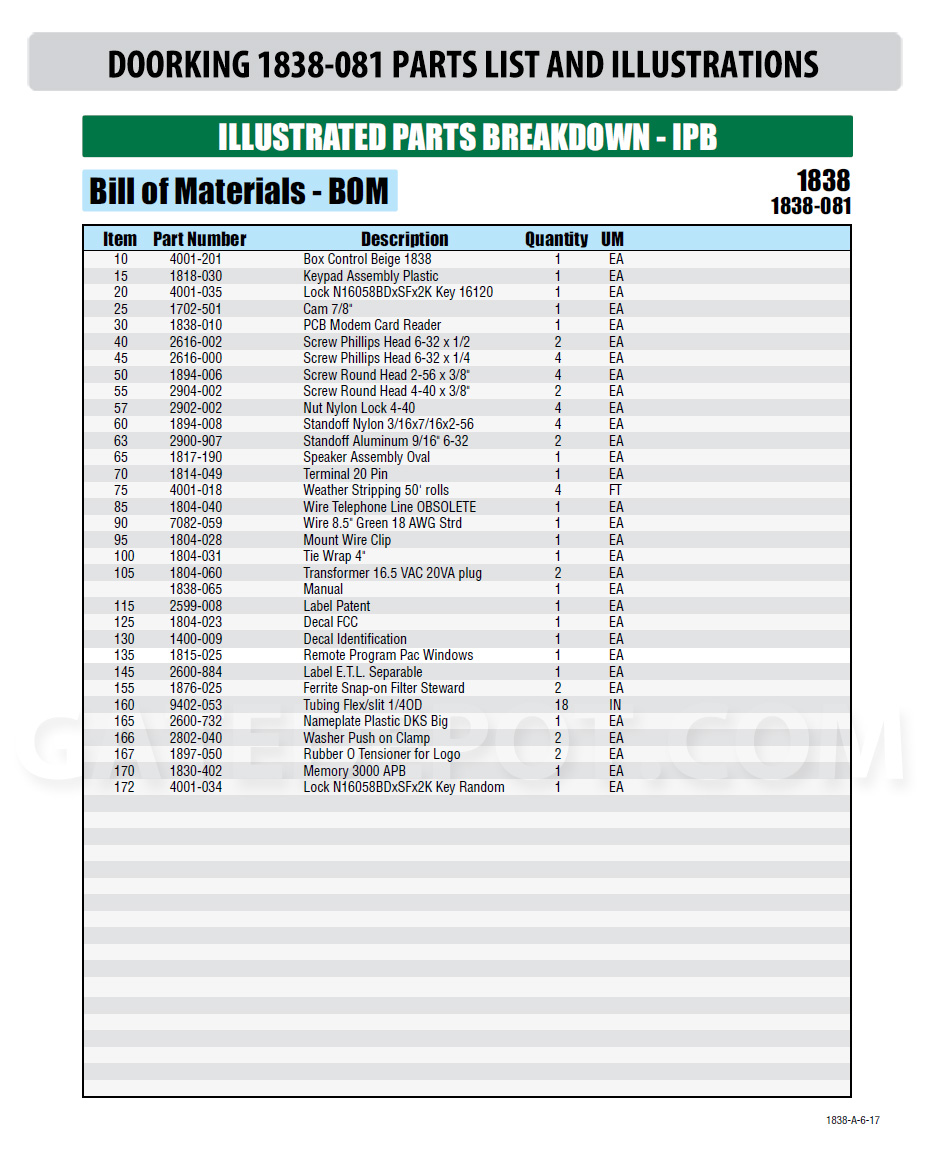

Replacement Parts

DoorKing 1702-501 Cam - 7/8"

GD# DKS-1702-501 MFR# 1702-501

• Cam 7/8"
• 3-5 Day Lead Time
See More Details

$7.80
DoorKing 1814-049 Terminal - 20-Pin

GD# DKS-1814-049 MFR# 1814-049

• Terminal, 20-pin
• 3-5 Day Lead Time
See More Details

$66.00
DoorKing 1817-190 Speaker

GD# DKS-1817-190 MFR# 1817-190

• Oval Speaker
• 3-5 Day Lead Time
See More Details

$38.00
DoorKing 1838-030 Keypad

GD# DKS-1838-030 MFR# 1838-030

• 1838 Controller Replacement Keypad
• 3-5 Day Lead Time
See More Details

$109.25
DoorKing 1838-010 Control Board

GD# DKS-1838-010 MFR# 1838-010

• Circuit Board Replacement Part
• Memory Not Included
• For 1838 Systems Only
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$1,275.00
DoorKing 1838-220 LCD Display Kit

GD# DKS-1838-220 MFR# 1838-220

• LCD Display Kit for 1838
• 3-5 Day Lead Time
See More Details

$618.00
Doorking 1897-050 Rubber O Tensioner

GD# DKS-1897-050 MFR# 1897-050

• Rubber O Tensioner for Logo
• 3-5 Day Lead Time
See More Details

$6.00
DoorKing 2348-010 Control Board

GD# DKS-2348-010 MFR# 2348-010

• Elevator Control Board Only
• For Use With Models 1833, 1835, 1837 & 1838
• Requires 16VAC Power Transformer - Included with Enclosures
• 2 Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$1,540.00
DoorKing 2600-732 Nameplate - Plastic DKS

GD# DKS-2600-732 MFR# 2600-732

• Nameplate - Plastic
• 3-5 Day Lead Time
See More Details

$11.25
DoorKing 2616-000 Screw - Phillips Head - 6-32 x 1/4

GD# DKS-2616-000 MFR# 2616-000

• Screw - Phillips Head - 6-32 x 1/4
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2616-002 Screw - Phillips Head - 6-32 x 1/2

GD# DKS-2616-002 MFR# 2616-002

• Screw - Phillips Head - 6-32 x 1/2
• 3-5 Day Lead Time
See More Details

$4.35
DoorKing 2802-040 Clamp - Washer Push On

GD# DKS-2802-040 MFR# 2802-040

• Washer Push on Clamp
• 3-5 Day Lead Time
See More Details

$5.45
DoorKing 4001-035 Lock & Keys

GD# DKS-4001-035 MFR# 4001-035

• Lock N16058BDxSFx2K Key 16120
• Includes Lock & 2 Keys
• 3-5 Day Lead Time
See More Details

$37.00
