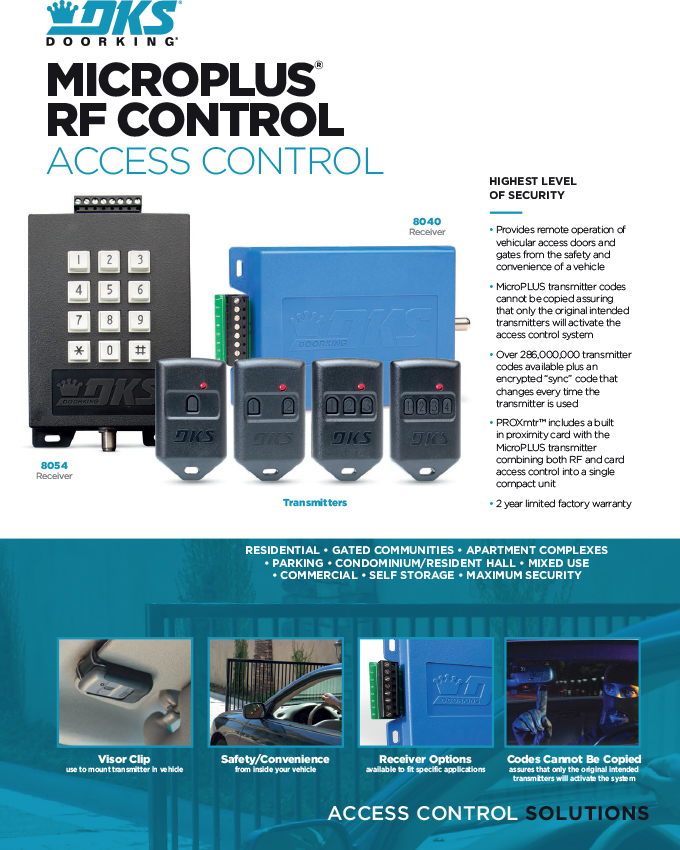

DoorKing 8040-080 MicroCLIK / MicroPLUS LP Receiver - 318 MHz / Wiegand Output

With automobile manufacturers building code copiers directly into todays cars, it's easy for a supposedly "secure" RF transmitter code to get into the wrong hands. And, how many car owners remember to delete their code when they sell or trade-in their car? This is the equivalent to leaving a copy of your front door key on the keyring when you hand the keys over to the new owner. This can't happen with MicroPLUS RF controls. MicroPLUS RF controls provide you with the highest level of security available with RF access controls. Our coding and encryption schemes are not shared with other producers, resulting in transmitter codes that cannot be duplicated or copied. With MicroPLUS controls, you are assured that only the original intended transmitter will activate your access system.

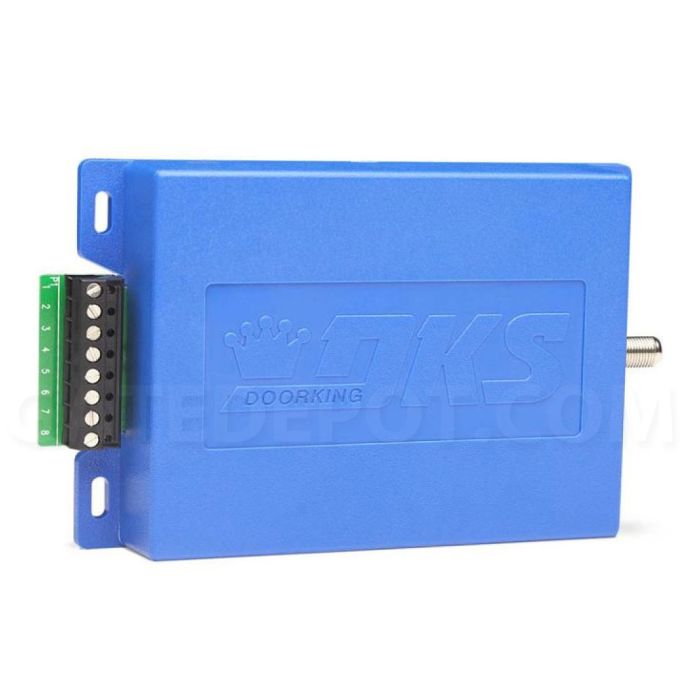

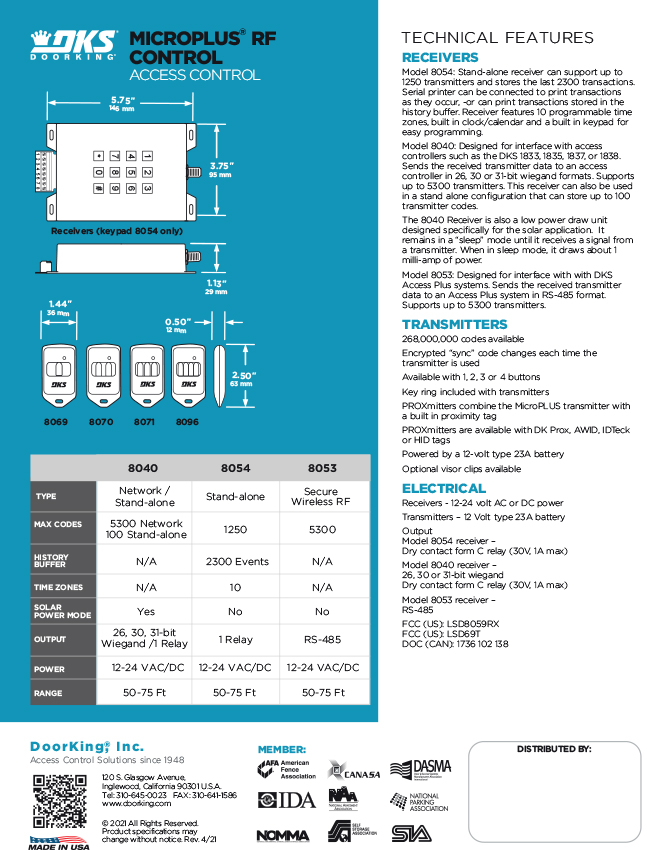

The 8040 is designed primarily for interface with with access controllers such as the DKS 1833, 1835, 1837, or 1838. Sends the received transmitter data to an access controller in 26, 30 or 31-bit wiegand formats. Supports up to 5300 transmitters. This receiver can also be used in a stand alone configuration that can store up to 100 transmitter codes. The 8040 Receiver is also a low power draw unit designed specifically for the solar application. It remains in a "sleep" mode until it receives a signal from a transmitter. When in sleep mode, it draws about 1 milli-amp of power.

• Primarily used as a 26, 30 or 31-bit wiegand output receiver
• Supports up to 5300 transmitters in pass-through mode
• Can be set for stand-alone operation, 100 codes maximum
• Low power mode for solar-powered operation
• Compatible w/ MicroCLIK & MicroPLUS transmitters
• Form C relay
• 12-24 volt AC or DC
• Provides remote operation of vehicular access gates from the safety and convenience of a vehicle
• Over 1,000,000 transmitter codes available
• PROXmtr™ includes a built in proximity card with the MicroCLIK transmitter combining both RF and card access control into a single compact unit
• Transmitters available with 1, 2 or 3 buttons
• MicroCLIK® RF controls may be used as a stand-alone access control system or can be interfaced with 26 or 31-bit wiegand controllers
• HomeLink® compatible
