DoorKing 2348-081 Elevator Control Board Cabinet - Large w/ 1 Board
Product Details
The DKS 2348 Elevator Control System provides complete elevator security that is typically used in high rise condominium, apartment, or office building applications. The system will restrict which floor a visitor has access to via the elevator after they have been granted access by a building resident; and, is programmable to restrict building residents to certain floors or grant them access to all floors. Residents must use their access card (or other access control device) to "turn on" the floor buttons that they have access to.
- Restricts which floor a -visitor has access to
- Also can be programmed to restrict residents to certain floors, or grant them access to all floors
- Elevator users must have a valid access card to access restricted floors
- Control up to 8 elevators, with each elevator serving up to 64 floors
- "Call" function automatically sends elevator to ground floor when access has been granted
- Must be interfaced with a DKS model 1833, 1835, 1837 telephone entry or 1838 access control system
2348-040 ELEVATOR CONTROL BOARD
Each elevator board can control up to 16 floors, with a maximum of four (4) elevator control boards interfaced with a single elevator for a total of 64 floors. Each access controller can control up to eight (8) elevators in this manner.
Includes mounting hardware.

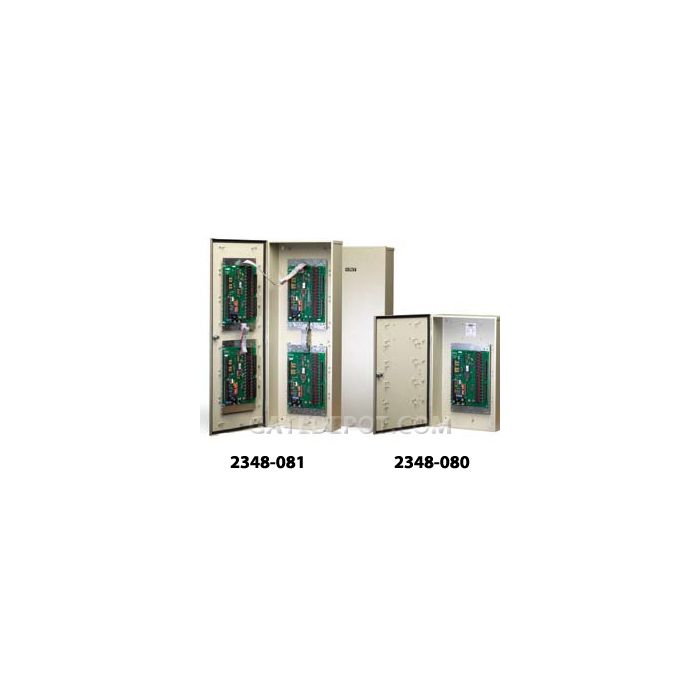

2348-080 ELEVATOR CONTROL BOARD CABINET
Lockable enclosure for two (2) elevator control boards (2nd board mounts on cabinet door)
Includes one (1) 2348-010 and power transformer
Use part number 2348-040 to order additional board
2348-081 ELEVATOR CONTROL BOARDS CABINET
Lockable enclosure for up to four (4) elevator control boards (boards 3 and 4 mount on cabinet door)
Includes one (1) 2348-010 and power transformer
Use part number 2348-040 to order additional boards
| Manufacturer Part Number | 2348-081 |
|---|---|
| Brand | Doorking |
