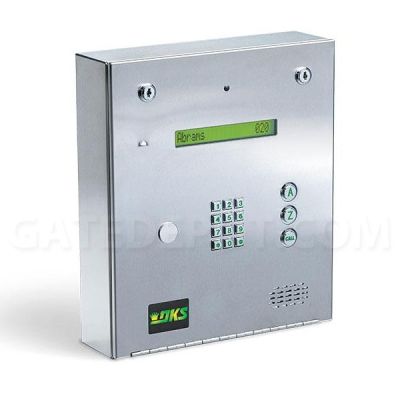

DoorKing 1835 90 Series Telephone Entry / Access Control System
From $2,804.00
To $13,479.51
Product Details
The Model 1835 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites. Each 1830 Series unit allows Voice and Data connection over either Cellular, VoIP, Wireless, or POTS. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique "One Touch" CALL button makes this system one of the easiest to use on the market today! The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. The 1835 can be expanded with wired Tracker expansion boards to control up to 48 access points (or 24 with a wireless connection). Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations: passive, active and trap.
The 1835 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:
- Cellular 4G-LTE service (note 1)
- VoIP (note 2)
- POTS - Plain Old Telephone Service (note 3)
Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.
Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.
Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using - IM Server Modem (subscription required). DoorKing does not recommend using a POTS line for programming the telephone entry system. DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.
Go to Connection Options for further details
- Large easy to use A and Z scroll buttons
- One Touch "CALL" button
- Built-in single-line LCD directory display
- Programmable directory codes (1-4 digits)
- 10 and 11-digit dialing capability
- Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (or 24 with a wireless connection)
- Live Streaming
- Live transactions
- Anti-pass back
- 8000 event transaction buffer
- 31 Security (permission levels)- 29 Programmable (2 fixed levels)
- Database import/export capability
- LED Lighting illuminates keypad
- Built-in clock/calendar
- Holiday schedule
- Hold open time zones
- Entry code time zones
- Built-in postal lock provision
- True Full Duplex Communication
- Stores up to 3000 telephone numbers and names
- Stores up to 255 area codes
- Transaction buffer stores last 8000 events
- Stores up to 8000 access card codes - dependent on system memory
- 31 security (permission) levels, 29 programmable with 4 time zones each
- 8 hold open time zones
- Three anti-pass back configurations: passive, active and trap
- Elevator control for up to 8 elevators, each serving 64 floors - Requires Elevator Control Board(s)
- Expandable to control up to 48 entry points - Requires Tracker Expansion Board(s)
- 4-digit entry codes, one for each telephone number
- 3 form "C" dry contact relays
- Single-line directory display uses super-twist LCD with 1/2-inch characters
- EEPROM memory chip
- Requires touch-tone, loop-start central office phone line
| Brand | Doorking |
|---|
Showcased Accessories
- Multiple Unit / Access Point Control Systems
- Vehicle Access Control
- Credentials - Cards, Tags, Fobs & Transponders
- Radio Remotes
- Goosenecks
- Power Supplies
- Access Control Replacement Parts
- All Products
- Google Feed
Product Manuals
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-5-manual_2022-03_Rev_Y_1
(15.04 MB)
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-5-manual_2020-06_Rev_X
(15.04 MB)
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-4-manual_2018-08_Rev_V
(14.89 MB)
Product Brochures
Additional Resources
doorking-1833-1834-1835-1837-1838-software-compatibility-with-mac-computers_2016-02_Rev_A_1
(216.57 kB)
-
