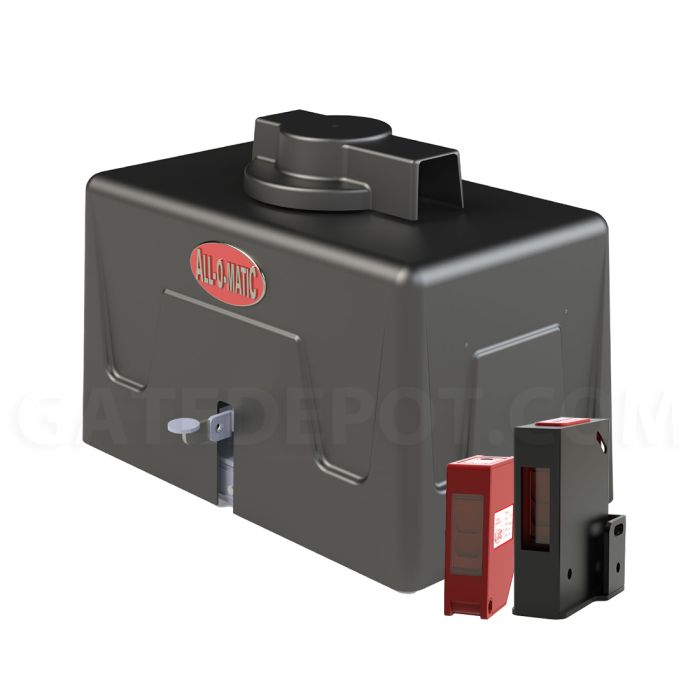

All-O-Matic SW-350-DC-PRO Swing Gate Operator
From $2,800.00
To $6,665.05
Product Details

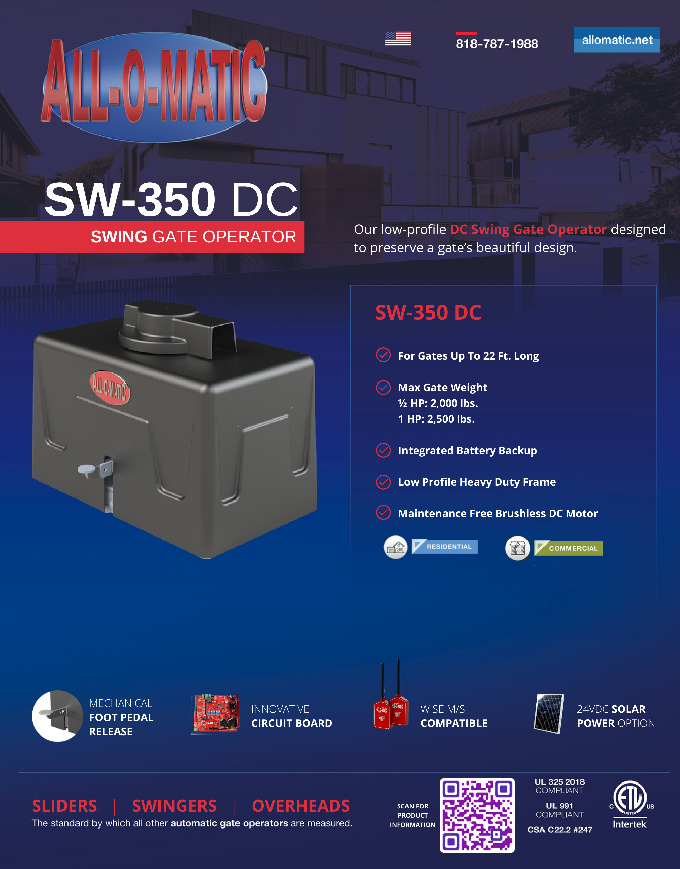

The SW-350DC was designed to meet the demands of gate installers who want a gate operator that can handle heavy traffic, commercial/industrial heavy gates and/or extreme weather conditions. The combination of its heavy duty, low profile frame, reliable gearbox and powerful brushless DC motor make even the most challenging installations simple and easy. The SW-350DC has the option of 1/2 HP and 1 HP motors capable of moving up to 2,000 lb. and 2,500 lb. gates, respectively.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance. As with most of our AC operators, our DC operators now include an emergency foot pedal release and a built in loop rack.

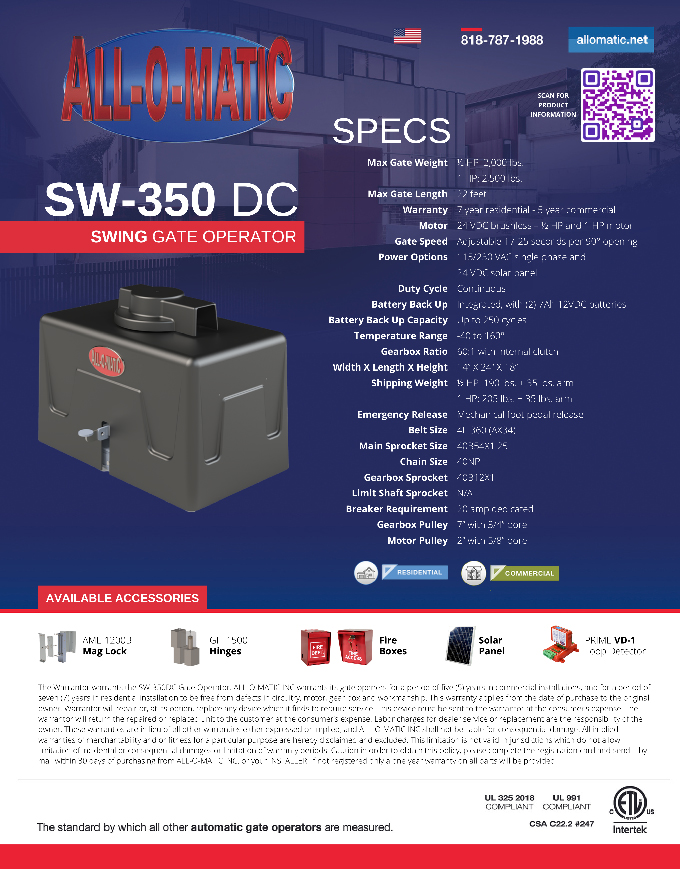

- Max Gate Weight: 1/2 HP: 2,000 lbs. / 1 HP: 2,500 lbs.
- Max Gate Length: 22 feet
- Warranty: 7 year residential - 5 year commercial
- Motor: 24 VDC brushless 1/2 HP / 1 HP motor
- Gate Speed: Adjustable 17-25 seconds per 90° opening
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Duty Cycle: Continuous
- Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
- Battery Back Up Capacity: Up to 250 cycles
- Temperature Range: -40 to 160°
- Gearbox Ratio: 60:1 with internal clutch
- Width X Length X Height: 14" X 24" X 18"
- Emergency Release: Mechanical foot pedal release
- Belt Size: 4L-360 (AX34)
- Main Sprocket Size: 40B54X1.25
- Chain Size: 40NP
- Gearbox Sprocket: 40B12X1
- Limit Shaft Sprocket: N/A
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 7" with 3/4" bore
- Motor Pulley: 2" with 5/8" bore
- MADE IN USA
