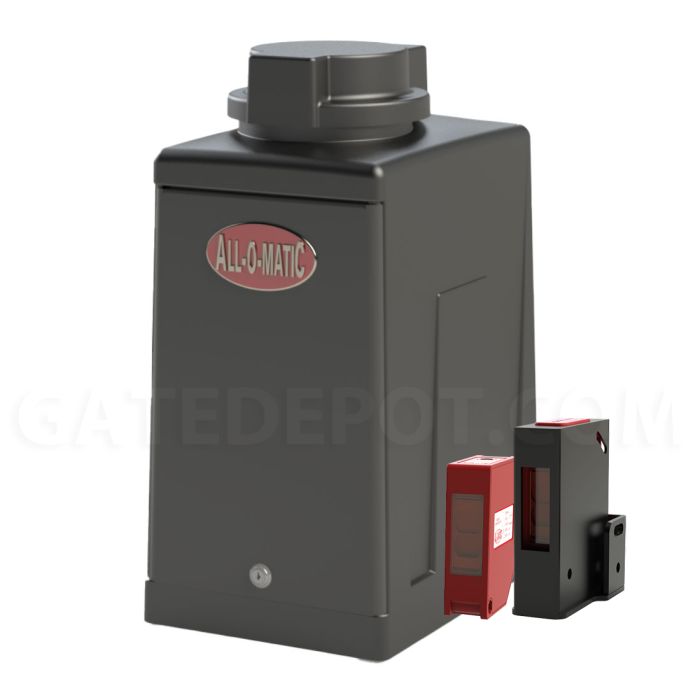

All-O-Matic SW-300-AC Swing Gate Operator
• 20' x 800 Lbs
• 120VAC Power Source / 120VAC Operating Voltage
• Opens 90° ~ 17 Seconds
• Continuous Duty
• Includes 1 Photo Eye
• 7 / 5-Year Limited Manufacturer Warranty
• MADE IN USA
From $1,815.00
To $2,510.05
SKU
AOM-sw300-ac-bundle
Product Details
Features a heavy duty torque limiter, huge solid aluminum rust free hub, an easy to install quick release arm and a heavy duty frame. SW-300AC can move gates that are up to 20 feet wide and 800 lbs. heavy.
AC operators come with the simplest and most dependable control board in the industry that's backwards compatible. A powerful and durable motor that has been field tested for over 20 years.
- Max Gate Weight: 800 lbs.
- Max Gate Length: 20 feet
- Warranty: 7 year residential / 5 year commercial
- Motor: 1/2 HP motor
- Gate Speed: 17 seconds per 90° opening
- Power Options: 120 VAC
- Duty Cycle: Continuous
- Temperature Range: -40 to 160°
- Gearbox Ratio: 60:1
- Width X Length X Height: 12" X 17" X 25.5"
- Emergency Release: Quick release arm
- Belt Size: 4L-340 (AX32)
- Main Sprocket Size: 40A54TX2 with torque limiter
- Chain Size: 40NP
- Gearbox Sprocket: 40B14X7/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 8" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
- MADE IN USA
