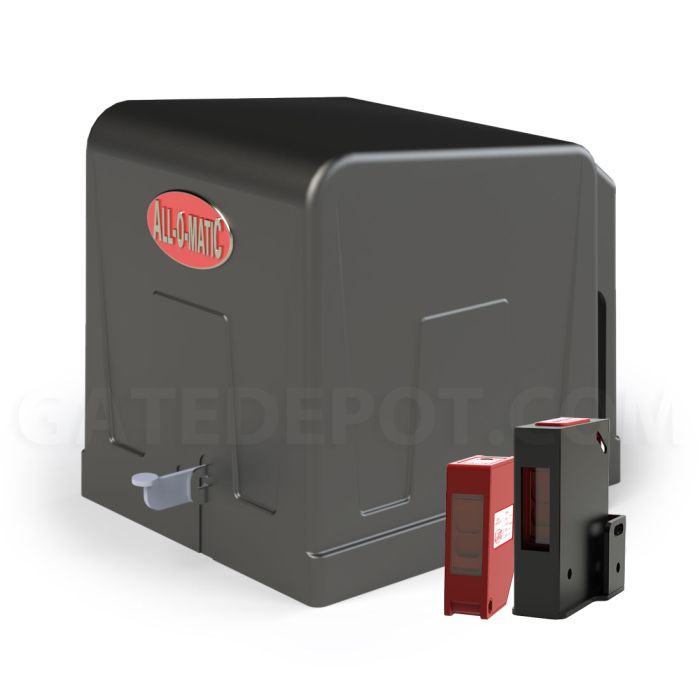

All-O-Matic SL-90-DC-PRO Slide Gate Operator
From $1,830.00
To $2,497.60
Product Details
The newly redesigned SL-90DC, Gate Operator, is equipped with a standard mechanical foot pedal release and larger gearbox with internal disconnect for higher gate capacity. Same compact size but it can now handle gates up to 1,600 lbs. and 50 feet long.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.
Features
- Max Gate Weight: 1,600 lbs.
- Max Gate Length: 50 feet
- Warranty: 7 year residential / 5 year commercial
- Motor: 24 VDC brushless 1/2 HP motor
- Gate Speed: 12" per second
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Duty Cycle: Continuous
- Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
- Battery Back Up Capacity: 150 cycles on a 1,000 lb. gate
- Temperature Range: -40 to 160°
- Gearbox Ratio: 20:1 with internal disconnect
- Width X Length X Height: 15.5" X 18.5" X 16"
- Emergency Release: Mechanical foot pedal release
- Belt Size: 4L-230 (AX21)
- Main Sprocket Size: 41B22X7/8

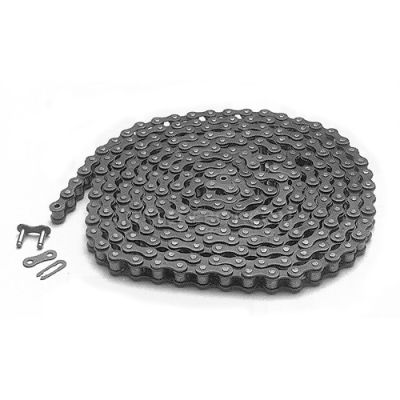

- Chain Size: 41NP (20' included)
- Limit Shaft Sprocket: 41B15X5/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 2 1/2" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
- MADE IN USA
