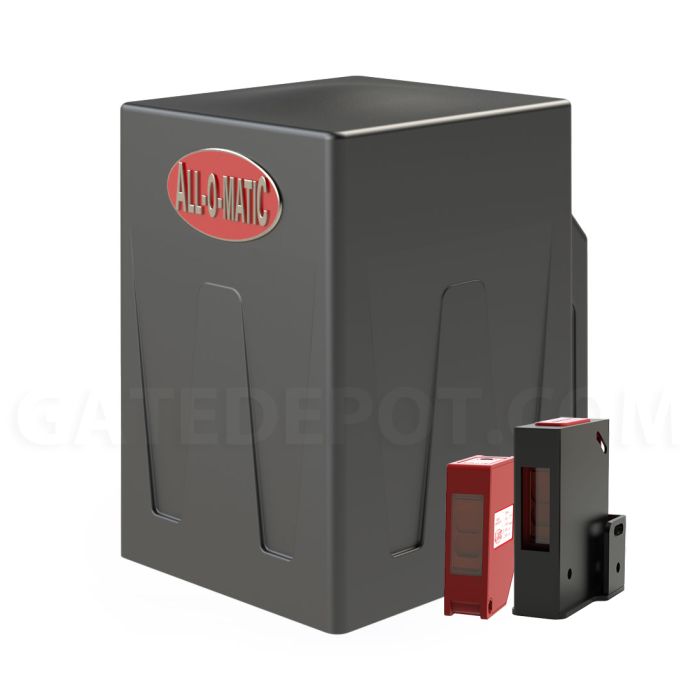

All-O-Matic SL-45-DC-PRO Slide Gate Operator
From $1,380.00
To $2,047.60
Product Details
The SL-45DC is the smallest most efficient and reliable residential DC gate operator in the industry. The SL-45 DC is small in size but enormous in performance. Its top of the line Planetary gearbox and Brushless DC Motor carries a tremendous advantage over the conventional gearboxes and brushed DC motor commonly used in the industry due to its compact size and its outstanding power transmission efficiency.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.
Features
- Max Gate Weight: 800 lbs.
- Max Gate Length: 30 feet
- Warranty: 5 year residential
- Motor: 24 VDC brushless with planetary gearbox
- Gate Speed: 12" per second
- Power Options: 115/230 VAC single phase
- and 24 VDC solar panel:
- Duty Cycle: Continuous
- Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
- Battery Back Up Capacity: 250 cycles on a 600 lb. gate
- Temperature Range: -40 to 160°
- Gearbox Ratio: Approx. 29:1
- Width X Length X Height: 11" X 14.5" X 15.5"
- Emergency Release: Push open in the event of a power failure
- Main Sprocket Size: 41B15X5/8
- Chain Size: 41NP (20' included)
- Limit Shaft Sprocket: 41B10X5/8
- Breaker Requirement: 20 amp dedicated
- MADE IN USA
| Brand | All-O-Matic |
|---|
