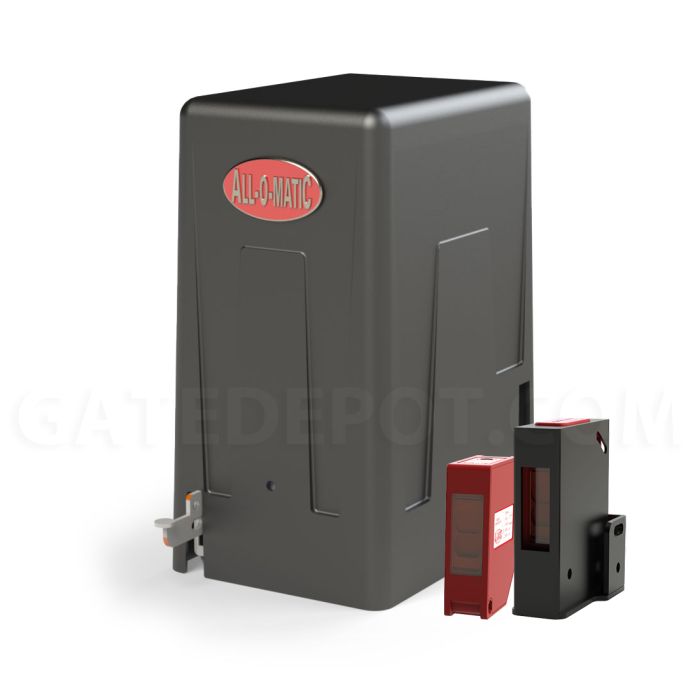

All-O-Matic SL-100-DC-FP-PRO Slide Gate Operator w/ Foot Pedal Release
From $2,335.00
To $3,002.60
Product Details
Designed to be the strongest, most durable DC gate Operator in its class. Allomatic's long awaited SL-100FP DC has arrived. The SL-100FP DC gate operator utilizes an industry first brushless motor technology (no maintenance, high torque, and smooth quiet operation), total in house design, programming and construction. Equipped with a built in loop detector rack and enough power to operate all accessories on battery power. Manufactured with a heavy duty frame and parts that are made to last a life time, plus our industry leading warranty.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance. As with most of our AC operators, our DC operators now include an emergency foot pedal release and a built in loop rack.
Features
- Max Gate Weight: 2,000 lbs.
- Max Gate Length: 50 feet
- Warranty: 7 year residential / 5 year commercial
- Motor: 24 VDC brushless 1/2 HP motor
- Gate Speed: 12" per second
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Duty Cycle: Continuous
- Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
- Battery Back Up Capacity: 80 cycles on a 1,000 lb. gate
- Temperature Range: -40 to 160°
- Gearbox Ratio: 20:1 with internal disconnect
- Width X Length X Height: 12" X 17.5" X 23.5"
- Emergency Release: Mechanical foot pedal release
- Belt Size: 4L-260 (AX24)
- Main Sprocket Size: 41B22X7/8
- Chain Size: 41NP (20' included)
- Gearbox Sprocket: N/A
- Limit Shaft Sprocket: 41B15X5/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 2 1/2" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
- MADE IN USA
