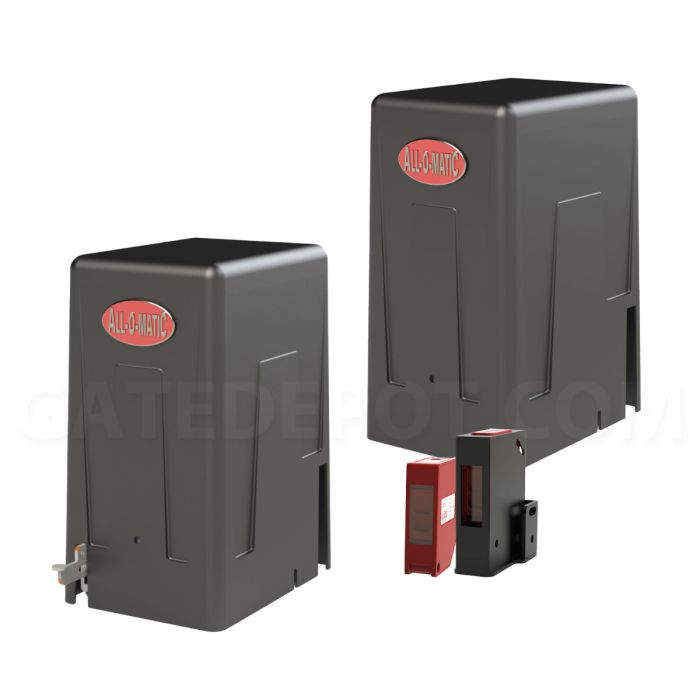

All-O-Matic SL-100-AC Slide Gate Operator
Available w/ Foot Pedal Release
• 37' x 1,000 Lbs
• 120VAC Power Source / 120VAC Operating Voltage
• Opens ~ 12" per Second
• Continuous Duty
• Includes 2 Photo Eyes
• 7 / 5-Year Limited Manufacturer Warranty
• MADE IN USA
From $1,585.00
To $3,977.60
SKU
AOM-sl100-ac-bundle
Product Details
Designed to be the strongest, most durable AC gate operator in its class, the SL-100AC is sure to fit the needs of most residential and commercial gate installation. Setting a new standard in slide gate operators, SL-100AC can move gates that are up to 1,000 lbs. and 37 feet wide. Just like our DC Slider 100 we now offer an optional emergency foot pedal release. AC operators come with the simplest and most dependable control board in the industry that's backwards compatible. A powerful and durable motor that has been field tested for over 20 years.
Specificatinons
- >Max Gate Weight: 1,000 lbs. >
- >Max Gate Length: 37 feet >
- >Warranty: 7 year residential - 5 year commercial >
- >Motor: 1/2 HP motor >
- >Gate Speed: 12" per second >
- >Power Options: 120 VAC >
- >Duty Cycle: Continuous >
- >Temperature Range: -40 to 160° >
- >Gearbox Ratio: >
- >Regular — 10:1 >
- >FP — 20:1 with internal disconnect >
- >Width X Length X Height: 12" X 17.5" X 23.5" >
- >Shipping Weight: 100 lbs. >
- >Emergency Release: >
- >Regular: Push open in event of a power failure >
- >FP: Mechanical foot pedal release >
- >Belt Size: >
- >Regular: 4L-300 (AX28) >
- >FP: 4L-260 (AX24) >
- >Main Sprocket Size: 41B22X7/8 >
- >Chain Size: 41NP (20' included) >
- >Limit Shaft Sprocket: >
- >Regular: N/A >
- >FP: 41B15X5/8 >
- >Breaker Requirement: 20 amp dedicated >
- >Gearbox Pulley:
- >Regular: 5" with 5/8" bore >
- >FP: 2 1/2" with 5/8" bore >
- >Motor Pulley: 2" with 5/8" bore >
- MADE IN USA
| Brand | All-O-Matic |
|---|
Showcased Accessories
- Slide Gate Hardware
- Gate Locks
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Emergency Access
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Power Supplies
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
17====
-
All-O-Matic 41B12X78 Sprocket - Slow Down DriveAOM-41b12x78 41B12X78• Slows the operator down 50%See More Details
• Ideal for large gates or tandem gate installs
• For use with SL100
• Required when using TK-1000 tandem kit$34.55
17==== -
All-O-Matic ACPCB AC Control Board - Pre-ULAOM-acpcb ACPCB• Pre-UL AC Board for All-O-Matic Automatic Driveway Gate OperatorsSee More Details$287.45
17==== -
All-O-Matic ACPCB-UL Control Board - AC UL-2016AOM-acpcb-ul ACPCB-UL• AC Control Board AC - UL-2016See More Details
• Circuit Boards are Non Returnable$267.80
17==== -
All-O-Matic COM-1000 Power SwitchAOM-com-1000 COM-1000• Control box On/Off power switchSee More Details$9.90
17==== -
All-O-Matic COM-1001 Power OutletAOM-com-1001 COM-1001• Power Supply Box Outlet - 110See More Details$9.90
17==== -
All-O-Matic COM-1002 Control Box 14 Pin Terminal StripAOM-com-1002 COM-1002• Control Box 14 Pin Terminal StripSee More Details$49.40
17==== -
$16.85
17==== -
$16.50
17==== -
$17.30
17==== -
All-O-Matic COM-1008 Limit Switch Plastic NutAOM-com-1008 COM-1008• Limit Switch Plastic NutSee More Details$13.25
17==== -
$13.15
17==== -
All-O-Matic COM-1017 Idler w/Bolt UHMW (41BB17)AOM-com-1017 COM-1017• Idler w/Bolt UHMWSee More Details
• Formerly #41BB17$25.95
17==== -
All-O-Matic GBX-100 Gearbox for SL100 with No Foot PedalAOM-gbx-100 GBX-100• Gearbox for SL100 Slide OperatorSee More Details$316.40
17==== -
All-O-Matic GBX-101 Gearbox for SL100 with Foot PedalAOM-gbx-101 GBX-101• Gearbox for SL-90, SL-100FP AC & DCSee More Details$425.20
17==== -
All-O-Matic LSP-100FP Limit Plate - SL-100AOM-lsp-100fp LSP-100FP• SL-100 - Limit PlateSee More Details$16.50
17==== -
All-O-Matic PLY-2 Motor Pulley - 2" x 5/8"AOM-ply-2 PLY-2• All-O-Matic Motor Pulley 2" x 5/8"See More Details$25.95
17==== -
$32.10
