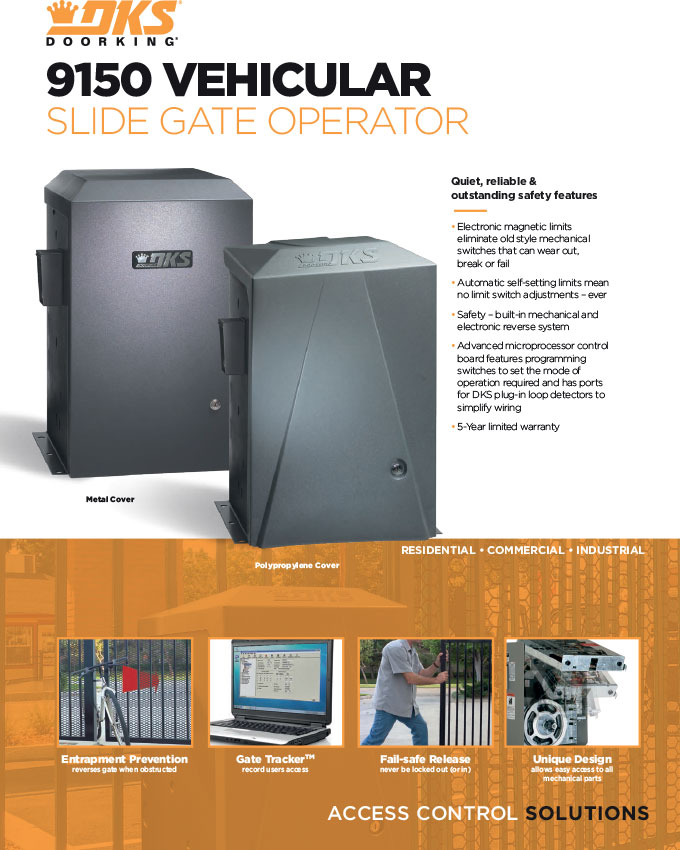

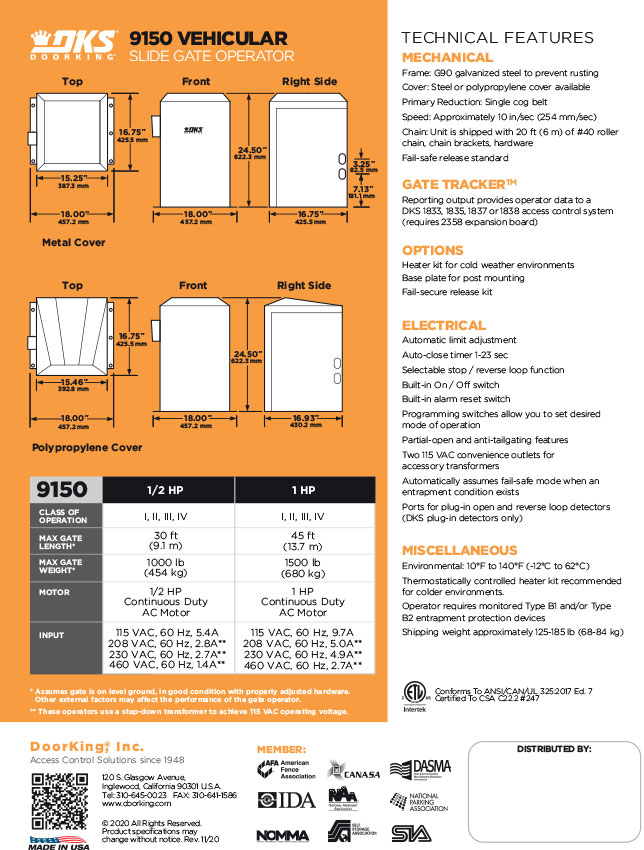

DoorKing 9150 Slide Gate Operator - 1/2 HP
Choose Metal or Poly Cover w/ Receiver & Transmitter
• 30' x 1,000 Lbs
• 115/208/230/460VAC Power Source
• 115VAC Operational Voltage
• Opens ~ 10" per Second
• Continuous Duty
• Poly Cover Model includes Receiver & (1) Transmitter
• 5-Year Limited Manufacturer Warranty
• Additional Entrapment Prevention Devices REQUIRED
• MADE IN USA
• 3-5 Day Lead Time
From $2,114.00
To $5,567.40
SKU
DKS-9150-1-2-hp-bundle
Product Details
This Slide Gate Operator delivers the convenience of self-setting limits with the safe operation you expect from a DKS Operator. This Operator can be used in residential, commercial or industrial high-use applications, with an innovative fail-safe design which significantly reduces the chance of injury or entrapment and makes this the safest Slide Gate Operator in the market today. Designed to work in many configurations, this Operator can be used for front, center or rear drive applications and can be pad or post mounted. The 9150 is offered with a metal or polypropylene (Poly) cover. Operators with the Poly cover inlude the MicroPlus RF Kit (1 TX + 1 REC).
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.
Features
- Self-adjusting, no maintenance magnetic limits
- Partial-open feature
- Anti-tailgating feature
- Gate tracker reporting output
- Ports for plug-in loop detectors
- Two convenience outlets
- Fail-safe release (fail-secure optional)
- Programming switches
- Built-in reset switch
- Built-in power On/Off switch
- Maximum gate length 45-feet
- Maximum gate weight 1500 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator. If DC Convenience Open option is installed, maximum gate weight is 1300 pounds. Other external factors may affect the performance of the gate operator.)
- 1 HP continuous-duty motor
- 115, 208*, 230*, 460* VAC (*208, 230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- Operator is shipped with chain brackets and 20-feet of #40 chain
- Class I, II, III and IV applications
- Compliant with UL 325 and 991. ETL listed
- Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator
- MADE IN USA
Options
- Nickel plated chain
- Plug-in loop detectors
- Heater kit for cold environments
- Base plate to post mount this operator (does not include posts)
- Surge suppressors
| Brand | Doorking |
|---|
Showcased Accessories
- Slide Gate Hardware
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Power Supplies
- Wire & Cable
- Gate Operator Replacement Parts
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
78====
-
DoorKing 1200-028 OutletDKS-1200-028 1200-028• Outlet, Snap-InSee More Details
• 3-5 Day Lead Time$13.00
78==== -
DoorKing 1506-071 Entrapment Alarm BuzzerDKS-1506-071 1506-071• Tone GeneratorSee More Details
• 3-5 Day Lead Time$53.50
78==== -
DoorKing 1601-041 Toggle Switch - SPST 2 PosDKS-1601-041 1601-041• Toggle Switch - SPST 2 PositionSee More Details
• 3-5 Day Lead Time$20.75
78==== -
DoorKing 1601-140 Toggle Switch - 2 Pole On-OffDKS-1601-140 1601-140• Toggle Switch - 2 Pole On-OffSee More Details
• 3-5 Day Lead Time$34.25
78==== -
DoorKing 1702-503 Cam - 1-1/4"DKS-1702-503 1702-503• Cam 1.1/4See More Details
• 3-5 Day Lead Time$7.80
78==== -
DoorKing 1812-005 Switch Push ButtonDKS-1812-005 1812-005• Switch Push Button N.O.See More Details
• 3-5 Day Lead Time$36.00
78==== -
DoorKing 1897-052 Microphone Support GasketDKS-1897-052 1897-052• Gasket, Microphone SupportSee More Details
• 3-5 Day Lead Time$6.05
78==== -
DoorKing 2340-164 Wire SetDKS-2340-164 2340-164• Wire Set BB 6100,6300,9150See More Details
• 3-5 Day Lead Time$21.00
78==== -
DoorKing 2599-100 Warning SignDKS-2599-100 2599-100• Sign WarningSee More Details
• 3-5 Day Lead Time$23.00
78==== -
DoorKing 2600-053 Bearing - Thrust - 3/4" IDDKS-2600-053 2600-053• Bearing - ThrustSee More Details
• 3/4" ID
• 3-5 Day Lead Time$26.50
78==== -
DoorKing 2600-102 Motor CapacitorDKS-2600-102 2600-102• Replacement Motor CapacitorSee More Details
• For 6050 / 6100
• 3-5 Day Lead Time$77.00
78==== -
DoorKing 2600-124 Motor Assembly - 1/2 HP Dual PulleyDKS-2600-124 2600-124• Motor Assembly - 1/2 HP Dual PulleySee More Details
• 3-5 Day Lead Time$269.50
78==== -
DoorKing 2600-129 Motor Assembly - 1/2 HPDKS-2600-129 2600-129• Motor Assembly - 1/2 HPSee More Details
• For 6100 / 9100
• 3-5 Day Lead Time$266.00
78==== -
DoorKing 2600-197 Motor - Battery Backup 24VDCDKS-2600-197 2600-197• Motor - 24VDCSee More Details
• For Battery Backup
• 3-5 Day Lead Time$237.50
78==== -
DoorKing 2600-271 Chain Stop - #40 / #41DKS-2600-271 2600-271• Replacement Chain Stop - #40 & #41 ChainSee More Details
• 3-5 Day Lead Time$32.50
78==== -
DoorKing 2600-344 Washer - 1-1/8" OD x 3/4" IDDKS-2600-344 2600-344• Washer - 1-1/8" OD x 3/4" IDSee More Details
• 3-5 Day Lead Time$8.15
78==== -
DoorKing 2600-345 Washer - Hardened / 1-1/4" x 3/4" IDDKS-2600-345 2600-345• Washer - Hardened 1-1/4 x 3/4 IDSee More Details
• 3-5 Day Lead Time$8.25
78==== -
DoorKing 2600-439 Washer Cup - BrassDKS-2600-439 2600-439• Washer Cup - BrassSee More Details
• 3-5 Day Lead Time$8.60
78==== -
DoorKing 2600-440 Bearing - RearDKS-2600-440 2600-440• Bearing - RearSee More Details
• For 9150
• 3-5 Day Lead Time$32.25
78==== -
DoorKing 2600-446 Spring - CompressionDKS-2600-446 2600-446• Spring - CompressionSee More Details
• 3-5 Day Lead Time$9.40
78==== -
DoorKing 2600-487 Bracket - Solenoid SupportDKS-2600-487 2600-487• Bracket - Solenoid SupportSee More Details
• 3-5 Day Lead Time$12.50
78==== -
DoorKing 2600-533 Cover - SwitchDKS-2600-533 2600-533• Lockable Switch CoverSee More Details
• 3-5 Day Lead Time$46.75
78==== -
DoorKing 2600-688 Belt - Cogged - 4L170 / 17"DKS-2600-688 2600-688• Belt - Cogged - 4L170 / 17"See More Details
• 3-5 Day Lead Time$52.00
78==== -
DoorKing 2600-694 Belt - AX36DKS-2600-694 2600-694• Belt - AX36See More Details
• 3-5 Day Lead Time$39.75
78==== -
DoorKing 2600-731 Cover - Gasket SwitchDKS-2600-731 2600-731• Gasket Switch CoverSee More Details
• 3-5 Day Lead Time$6.25
78==== -
DoorKing 2600-732 Nameplate - Plastic DKSDKS-2600-732 2600-732• Nameplate - PlasticSee More Details
• 3-5 Day Lead Time$11.25
78==== -
DoorKing 2600-749 Wire Connector - STA-KON RC6DKS-2600-749 2600-749• Wire Connector - STA-KON RC6See More Details
• 3-5 Day Lead Time$6.55
78==== -
DoorKing 2600-810 Bushing - 7/8" Poke Thru FlapsDKS-2600-810 2600-810• Bushing - 7/8" Poke Thru FlapsSee More Details
• 3-5 Day Lead Time$4.45
78==== -
DoorKing 2600-840 Ring Tongue Jumper - #8 ScrewDKS-2600-840 2600-840• Ring Tongue Jumper - #8 ScrewSee More Details
• 3-5 Day Lead Time$4.45
78==== -
DoorKing 2600-848 Resistor - 1 Ohm / 30 WattDKS-2600-848 2600-848• Resistor - Power 1 Ohm / 30 WattSee More Details
• 3-5 Day Lead Time$26.25
78==== -
DoorKing 2600-852 Chain Kit - #40 / 20'DKS-2600-852 2600-852• #40 ChainSee More Details
• 20'
• Two master links
• Chain stop assemblies
• Chain brackets with chain connectors
• 3-5 Day Lead Time$170.50
78==== -
DoorKing 2600-860 Solenoid Lock AssemblyDKS-2600-860 2600-860• Replacement Lock AssemblySee More Details
• For 9050 / 9070 / 9100 / 9150
• 3-5 Day Lead Time$85.50
78==== -
DoorKing 2600-871 Bushing - 1/2" OD x 5/16" ID x 5/16" LDKS-2600-871 2600-871• Bushing - 1/2" OD x 5/16" ID x 5/16" LSee More Details
• 3-5 Day Lead Time$7.50
78==== -
DoorKing 2600-875 Clamp - CapacitorDKS-2600-875 2600-875• Capacitor Mounting ClampSee More Details
• 3-5 Day Lead Time$12.25
78==== -
DoorKing 2600-880 Plug - 3/8" PlasticDKS-2600-880 2600-880• Plug - 3/8" PlasticSee More Details
• 3-5 Day Lead Time$4.70
78==== -
DoorKing 2600-886 Idler Wheel - UHMWDKS-2600-886 2600-886• Idler Wheel - UHMWSee More Details
• 3-5 Day Lead Time$21.75
78==== -
DoorKing 2600-904 Drive Shaft Assembly AssemblyDKS-2600-904 2600-904• Assembly Includes Drive Shaft, Sprocket and Front BearingSee More Details
• For 915 / 9150
• 3-5 Day Lead Time$95.00
78==== -
DoorKing 2600-917 Jamb Nut - Magnetic Sub-AssemblyDKS-2600-917 2600-917• Jamb Nut - Magnetic Sub-AssemblySee More Details
• 3-5 Day Lead Time$33.50
78==== -
DoorKing 2600-931 Bracket - Shaft SupportDKS-2600-931 2600-931• Bracket - Shaft SupportSee More Details
• For 915
• 3-5 Day Lead Time$84.25
78==== -
$403.25
78==== -
Doorking 2600-938 Radio TrayDKS-2600-938 2600-938• Radio TraySee More Details
• 3-5 Day Lead Time$19.00
78==== -
DoorKing 2600-945 Cover - Plastic InsulatorDKS-2600-945 2600-945• Plastic Insulator CoverSee More Details
• 3-5 Day Lead Time$24.75
78==== -
DoorKing 2600-957 Pulley Assembly - 10" AluminumDKS-2600-957 2600-957• Pulley Assembly - 10" AluminumSee More Details
• 3-5 Day Lead Time$110.25
78==== -
Doorking 2600-962 Door Mounting PlateDKS-2600-962 2600-962• Door Mounting PlateSee More Details
• 3-5 Day Lead Time$224.25
78==== -
Doorking 2600-965 Bracket - Idler / LeftDKS-2600-965 2600-965• Bracket - Idler / LeftSee More Details
• 3-5 Day Lead Time$34.00
78==== -
Doorking 2600-966 Bracket - Idler / RightDKS-2600-966 2600-966• Bracket - Idler / RightSee More Details
• 3-5 Day Lead Time$34.75
78==== -
DoorKing 2600-984 HousingDKS-2600-984 2600-984• HousingSee More Details
• For 9150
• 3-5 Day Lead Time$465.50
78==== -
DoorKing 2600-986 Wire SetDKS-2600-986 2600-986• Wire SetSee More Details
• For 9150 1/2 HP
• 3-5 Day Lead Time$56.25
78==== -
DoorKing 2600-990 Washer - 1.5" x .725" x .125" NeopreneDKS-2600-990 2600-990• Washer - Neoprene 1.5" x .725" x .125"See More Details
• 3-5 Day Lead Time$6.95
78==== -
DoorKing 2615-153 Bolt - Hex Head - 5/16-18 x 3/4DKS-2615-153 2615-153• Bolt - Hex HeadSee More Details
• 5/16-18 x 3/4
• 3-5 Day Lead Time$4.70
78==== -
DoorKing 2615-155 Bolt - Hex Head - 5/16-18 x 1-3/4DKS-2615-155 2615-155• Bolt - Hex HeadSee More Details
• 5/16-18 x 1 3/4
• 3-5 Day Lead Time$5.15
78==== -
DoorKing 2616-000 Screw - Phillips Head - 6-32 x 1/4DKS-2616-000 2616-000• Screw - Phillips Head - 6-32 x 1/4See More Details
• 3-5 Day Lead Time$4.35
78==== -
DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8DKS-2616-001 2616-001• Screw - Phillips Head - 6-32 x 3/8See More Details
• 3-5 Day Lead Time$4.35
78==== -
DoorKing 2616-002 Screw - Phillips Head - 6-32 x 1/2DKS-2616-002 2616-002• Screw - Phillips Head - 6-32 x 1/2See More Details
• 3-5 Day Lead Time$4.35
78==== -
DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4DKS-2616-003 2616-003• Screw - Phillips Head - 6-32 x 3/4See More Details
• 3-5 Day Lead Time$4.50
78==== -
DoorKing 2616-006 Screw - Phillips Head - 6-32 x 3/16DKS-2616-006 2616-006• Screw - Phillips Head - 6-32 x 3/16See More Details
• 3-5 Day Lead Time$4.35
78==== -
DoorKing 2616-007 Screw - Phillips Head - 6-32 x 5/8DKS-2616-007 2616-007• Screw - Phillips Head - 6-32 x 5/8See More Details
• 3-5 Day Lead Time$4.50
78==== -
DoorKing 2616-019 Screw - Phillips Head - 8-32 x 3/4DKS-2616-019 2616-019• Screw - Phillips Head - 8-32 x 3/4See More Details
• 3-5 Day Lead Time$4.35
78==== -
DoorKing 2616-051 Screw - Phillips Head - 10-32 x 3/8DKS-2616-051 2616-051• Screw - Phillips Head - 10-32 x 3/8See More Details
• 3-5 Day Lead Time$4.35
78==== -
DoorKing 2616-052 Screw - Phillips Head - 10-32 x1/2DKS-2616-052 2616-052• Screw - Phillips Head - 10-32 x1/2See More Details
• 3-5 Day Lead Time$4.95
78==== -
DoorKing 2620-028 Washer - 5/16" USSDKS-2620-028 2620-028• Washer - 5/16" USSSee More Details
• 3-5 Day Lead Time$4.45
78==== -
DoorKing 2620-035 Washer - 4" OD x 3/4" IDDKS-2620-035 2620-035• Washer - 4" OD x 3/4" IDSee More Details
• 3-5 Day Lead Time$18.00
78==== -
DoorKing 2620-053 Lockwasher - 5/16"DKS-2620-053 2620-053• Lockwasher - 5/16"See More Details
• 3-5 Day Lead Time$4.35
78==== -
DoorKing 2620-340 Nut - Center Lock - 1/4-20DKS-2620-340 2620-340• Nut - Center Lock - 1/4-20See More Details
• 3-5 Day Lead Time$4.65
78==== -
DoorKing 2620-409 Nut - Hex Flange Lock - 1/4-20DKS-2620-409 2620-409• Nut - Hex Flange Lock - 1/4-20See More Details
• 3-5 Day Lead Time$4.45
78==== -
DoorKing 2620-411 Nut - Hex Flange Lock - 5/16-18DKS-2620-411 2620-411• Nut - Hex Flange Lock - 5/16-18See More Details
• 3-5 Day Lead Time$4.75
78==== -
DoorKing 2801-004 Clutch Pad - 5" OD x 3/4" IDDKS-2801-004 2801-004• Clutch Pad - 5" OD x 3/4" IDSee More Details
• 3-5 Day Lead Time$18.50
78==== -
DoorKing 2802-040 Clamp - Washer Push OnDKS-2802-040 2802-040• Washer Push on ClampSee More Details
• 3-5 Day Lead Time$5.45
78==== -
DoorKing 2901-002 Terminal - 18-PinDKS-2901-002 2901-002• Terminal - 18-PinSee More Details
• 3-5 Day Lead Time$60.25
78==== -
DoorKing 2902-003 Nut - Nylon Lock - 6-32DKS-2902-003 2902-003• Nut - Nylon Lock - 6-32See More Details
• 3-5 Day Lead Time$4.45
78==== -
DoorKing 2902-004 Nut - Nylon Lock - 8-32DKS-2902-004 2902-004• Nut - Nylon Lock - 8-32See More Details
• 3-5 Day Lead Time$4.50
78==== -
DoorKing 2902-006 Nut - Nylon Lock - 10-32DKS-2902-006 2902-006• Nut - Nylon Lock - 10-32See More Details
• 3-5 Day Lead Time$4.40
78==== -
DoorKing 3004-020 Magnetic Counter ProbeDKS-3004-020 3004-020• Magnetic Counter ProbeSee More Details
• 3-5 Day Lead Time$151.75
78==== -
DoorKing 3129-005 Cover - Terminal Block 5 PositionDKS-3129-005 3129-005• Terminal Block Cover - 5 PositionSee More Details
• 3-5 Day Lead Time$17.50
78==== -
DoorKing 4001-035 Lock & KeysDKS-4001-035 4001-035• Lock N16058BDxSFx2K Key 16120See More Details
• Includes Lock & 2 Keys
• 3-5 Day Lead Time$37.00
78==== -
DoorKing 4001-093 MOV Assembly - 130VACDKS-4001-093 4001-093• MOV Assembly - 130VACSee More Details
• 3-5 Day Lead Time$20.50
78==== -
DoorKing 4602-018 Control BoardDKS-4602-018 4602-018• Replacement Circuit BoardSee More Details
• For 9100 / 9150 Operators
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$581.00
78==== -
Doorking 9150-006 Cover - Operator / PlasticDKS-9150-006 9150-006• Cover - Operator / PlasticSee More Details
• 3-5 Day Lead Time$105.50
