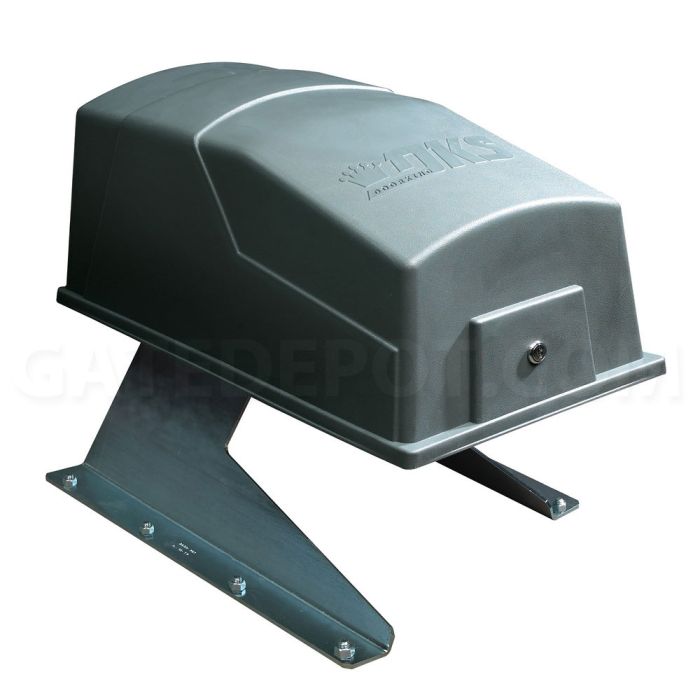

DoorKing 6100-381 Secondary Swing Gate Operator

The Model 6050 and 6100 operators are designed to operate vehicular swing gates in residential and commercial applications. These operators are designed so that they can be either pad or post mounted without any costly and time consuming field modifications. You need to specify which mounting method when ordering. The unique design of these operators allows the gate arm to be attached to the bottom rail of the gate. This eliminates the need for any brackets to be welded to the face of the gate and creates an aesthetically pleasing installation.

• Self-adjusting, no maintenance magnetic limits
• Overlap feature for dual swing gate operation
• Designed with a built-in primary and secondary entrapment prevention system
• Ports for plug-in loop detectors
• Fail-safe release
• Tamper detect circuit
• Gate tracker reporting output
• Programming switches
• Built-in reset switch
• Built-in power On/Off switch
• Maximum gate width 14-feet
• Maximum gate weight 500 pounds*. (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator)
• Swings gate 90 degrees in approximately 10-seconds
• 1/2 HP limited-duty motor
• 115 VAC, 5.4 Amps
• Class I and Class II applications
• Compliant with UL 325 and 991. ETL Listed.

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices need to be installed with this gate operator.
