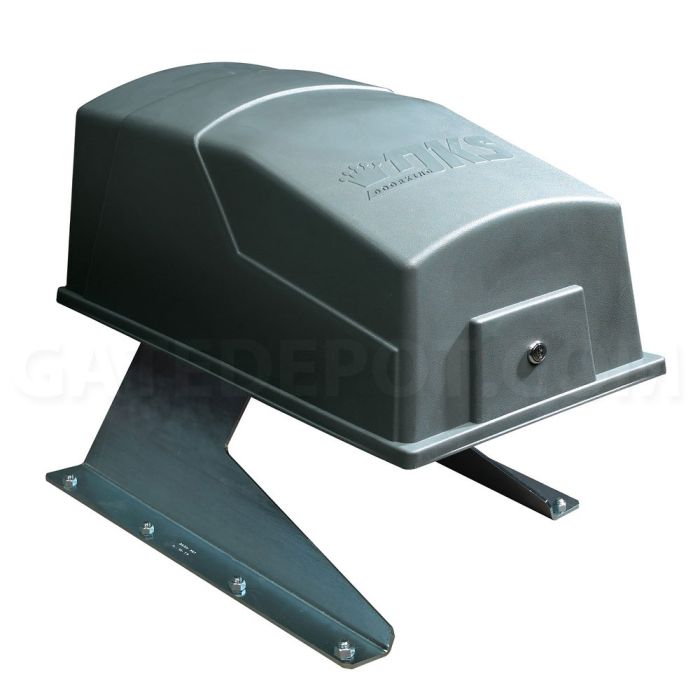

DoorKing 6050-381 Swing Gate Operator - Secondary

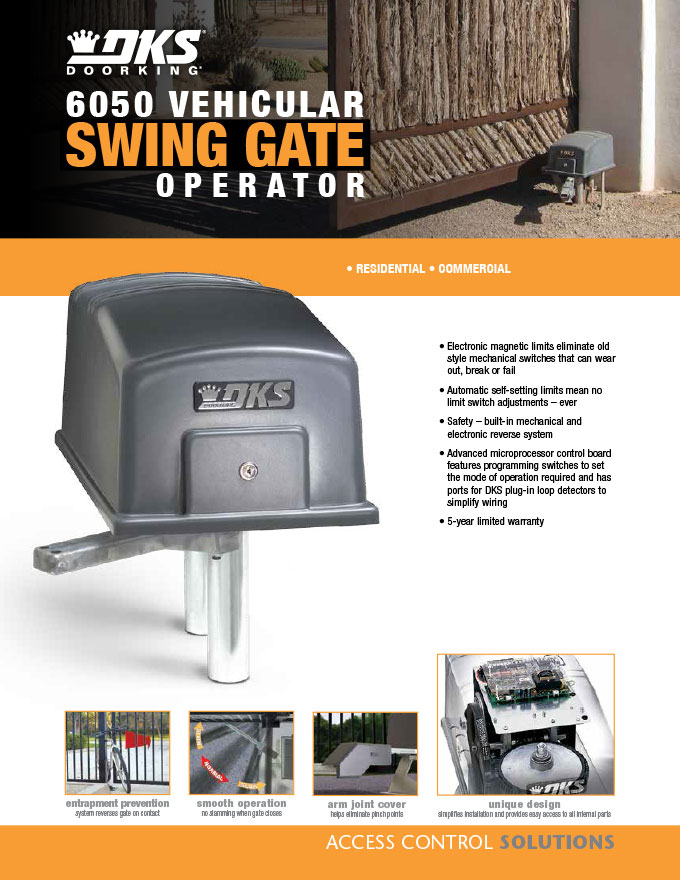

The unique configuration of these Operators allows the gate arm to rotate from underneath the Operator, enabling the arm to attach to the bottom rail of the gate, were it is virtually unseen from outside the gate. The fully enclosed Operators prevent water from contaminating the output shaft, bearings, and electronics. Additionally, the frame is built from G90 galvanized steel to prevent rusting. These Operators can be installed directly on a concrete pad, or post-mounted to meet any installation requirements.

With safety in mind, these Operators contain an electronic and mechanical inherent reverse system for two methods of obstruction detection. The automatic electronic limits, along with the microprocessor-based electronic control board provide advanced features not typically found in Operators in this class.

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

• Self-adjusting, no maintenance magnetic limits
• Overlap feature for dual swing gate operation
• Designed with a built-in primary and secondary entrapment prevention system
• Ports for plug-in loop detectors
• Fail-safe release
• Tamper detect circuit
• Gate tracker reporting output
• Programming switches
• Built-in reset switch
• Built-in power On/Off switch

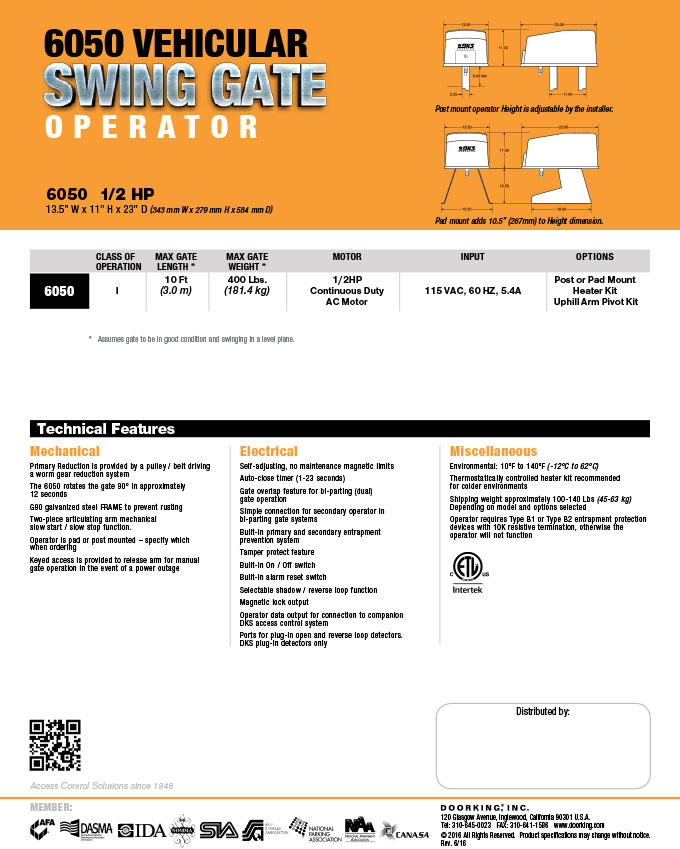

• Maximum gate width 10-feet
• Maximum gate weight 400 pounds*. (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator)
• Swings gate 90 degrees in approximately 10-seconds
• 1/2 HP limited-duty motor
• 115 VAC, 4.3 Amps
• Class I applications
• Compliant with UL 325 and 991. ETL Listed
• Dimensions (operator only): 13.5"W x 11"H* x 23"D (* Height of operator only. Actual height above ground is determined by which mounting method is used)
• MADE IN USA

Options

• Bi-parting gate connection cable (6050 secondary operator is shipped with 30-feet of cable; 6100 secondary operator is shipped with 40-feet of cable.)
• Post or pad mount - specify which
• Plug-in loop detectors
• Heater kit for cold environments
• Surge suppressors
