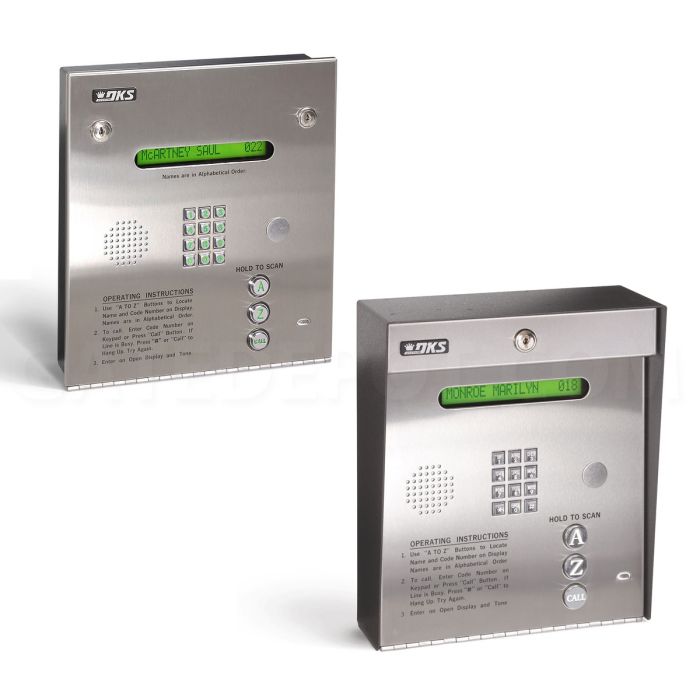

DoorKing 1835 80 Series Telephone Entry / Access Control System

Be the first to review this product

Choose Flush or Surface Mount • 3,000 Phone Numbers / 3,000 Entry Codes / 8,000 Device Codes • Control up to 48 additional entry points • PC Programmable • 3 Relays / 2 Wiegand Inputs • Single line LCD display • Full duplex voice communication • Elevator Control • Cellular, Internet, or POTS Connections • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

From $2,804.00

To $15,649.06

SKU

DKS-1835-80-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize DoorKing 1835 80 Series Telephone Entry / Access Control System

DoorKing 1835 80 Series Telephone Entry / Access Control System

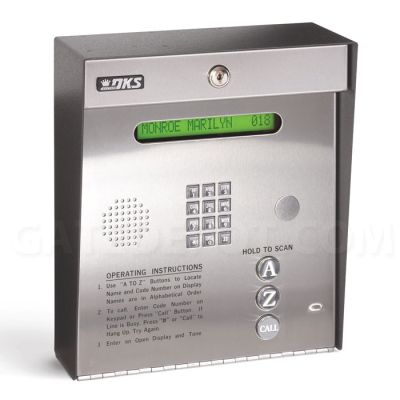

DoorKing 1835-080 80 Series Telephone Entry System - Surface Mount $2,804.00

• Surface Mount • 3,000 Phone Numbers / 3,000 Entry Codes / 8,000 Device Codes • Control up to 48 additional entry points • PC Programmable • 3 Relays / 2 Wiegand Inputs • Single line LCD display • Full duplex voice communication • Elevator Control • Cellular, Internet, or POTS Connections • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1835-080 MFR# 1835-080

Quantity

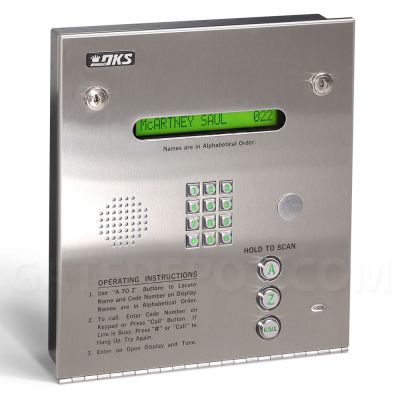

DoorKing 1835-084 80 Series Telephone Entry System - Flush Mount $2,804.00

• Flush Mount • 3,000 Phone Numbers / 3,000 Entry Codes / 8,000 Device Codes • Control up to 48 additional entry points • PC Programmable • 3 Relays / 2 Wiegand Inputs • Single line LCD display • Full duplex voice communication • Elevator Control • Cellular, Internet, or POTS Connections • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1835-084 MFR# 1835-084

Quantity

Service Connection Options

DoorKing 1800-080 Cellular Voice + Data $968.00

• DKS 4G-LTE Cellular Connection Adapter • Requires DKS Cellular Option Subscription • 4G-LTE Service Provided by AT&T where available • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1800-080 MFR# 1800-080

Quantity

Doorking 2334-080 VoIP - TCP/IP Control Box $469.75

• VoIP Voice & Data • DKS VoIP or Data over IP subscription Required • For 1830 Series • 3-5 Day Lead Time

GD# DKS-2334-080 MFR# 2334-080

Quantity

DoorKing 1815-578 VoIP Adapter Kit - Voice Communication $124.50

• VoIP Adapter - Voice Communication • DKS Internet Option - Plug & Play • Requires DKS Internet Options Subscription • Works with 1830-186 TCP/IP Converter • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1815-578 MFR# 1815-578

Quantity

DoorKing 1830-186 TCP/IP Converter Kit - Plug & Play $177.00

• VoIP Adapter - Data Transfer • DKS Internet Option - Plug & Play • Requires DKS Internet Options Subscription • Works with 1815-568 VoIP Adapter Kit • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1830-186 MFR# 1830-186

Quantity

DoorKing 1830-185 TCP/IP Converter Kit - Manual $177.00

• TCP/IP Converter Kit • DKS Internet Option - Manual IP Configuration • Uses your provider subscription and hardware • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1830-185 MFR# 1830-185

Quantity

Wired Expansion

DoorKing 2358-010 Tracker Expansion Board $382.25

• Tracker Expansion Control Board • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2358-010 MFR# 2358-010

Quantity

DoorKing 2351-080 Tracker Expansion Enclosure w/ 1 Board $518.00

• One Board / Single Enclosure • Expands DKS access controllers to control up to 48 wired • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-080 MFR# 2351-080

Quantity

DoorKing 2351-085 Tracker Expansion Enclosure & Wireless Module w/ 1 Board $724.00

• One Board / Single Enclosure & Wireless Module • Expands DKS access controllers to control up to 48 wired / 24 wireless entry points • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-085 MFR# 2351-085

Quantity

DoorKing 2351-082 Tracker Expansion Pre-Wired Quad Enclosure w/ 1 Boards $947.00

• One Board / Pre-Wired Quad Enclosure • Expands DKS access controllers to control up to 48 wired • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-082 MFR# 2351-082

Quantity

Wireless Expansion

DoorKing 2333-080 Wireless Baseboard $462.50

• The 2333 RF baseboard is installed in the 1833, 1835, 1837 and 1838 access controller and can communicate with up to 24 remote access points • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2333-080 MFR# 2333-080

Quantity

DoorKing 1470-080 Remote Module $284.75

• Plugs into the 2358 circuit board to provide the Tracker Expansion Board with a wireless Wiegand connection • 900 MHz • Range (line of sight) Disk antenna - 500' • Range (line of sight) 6" antenna - 1000' • Includes 6" antenna & Vandal resistant dome antenna • NOT A STAND-ALONE DEVICE — Must be installed on 2358 tracker board • Must be used in conjunction with 2333-080 • The use of DUAL BAND repeaters 2332-080 is recommended • 2yr Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1470-080 MFR# 1470-080

Quantity

DoorKing 2332-080 Dual Band Repeater $428.50

• The 2332 dual band repeater (DBR) can be used when distances between the 2333 baseboard and 1470 remote module are out of range with each other • ONLY 1 DBR can be used per each 2333 and 1470 set • 3-5 Day Lead Time

GD# DKS-2332-080 MFR# 2332-080

Quantity

Keypad

DoorKing 1815-051 Keypad - Surface Mount w/ Stainless Steel Faceplate $394.75

• Surface Mount w/ Stainless Steel Faceplate • Output format is 26-bit wiegand • 2 Year Limited Manufacturer Warranty • Not stand-alone - for use with an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-051 MFR# 1815-051

Quantity

Proximity Readers

DoorKing 1815-330 RFID Proximity Reader - DK Prox - Surface Mount Enclosure / 3" Range $199.00

• Surface Mount Enclosure w/ 3" Range • 26-bit Wiegand Output • 125kHz • 5 Year Limited Manufacturer Warranty • Not a Stand-Alone unit, must be connected to an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-330 MFR# 1815-330

Quantity

DoorKing 1815-333 RFID Proximity Reader - DK Prox - Surface Mount Enclosure / 3" Range & Expansion Board $595.00

• Surface Mount Enclosure w/ 3" Range & Tracker Expansion Board • 26-bit Wiegand Output • 125kHz • 5 Year Limited Manufacturer Warranty • Not a Stand-Alone unit, must be connected to an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-333 MFR# 1815-333

Quantity

Credentials

DoorKing 1508-120 RFID Proximity Cards - DK Prox / Clamshell $3.57

• DK Prox Card, Clamshell - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-120 MFR# 1508-120

Quantity

DoorKing 1508-123 RFID Proximity Key Fobs - DK Prox $5.29

• DK Prox Card, Keyfob - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-123 MFR# 1508-123

Quantity

Long Range Access

DoorKing 1815-350 Long Range Reader - DK Prox / AVI - 25' $2,077.00

• Adjustable read range: 8 ft to 25 ft • Two different operating modes: timing and trigger • Uses frequency hopping technology in the UHF frequency band (902 - 928 MHz) • Adjustable timing intervals between consecutive readings of same tag • Uses passive tags - no batteries to worry about • Dual technology cards are available allowing a single card to be used with both AVI and standard DK Prox readers • 5 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1815-350 MFR# 1815-350

Quantity

DoorKing 1508-198 RFID Proximity Cards - UHF DK Prox Dual Technology / ISO $10.02

• UHF DK Prox Dual Technology Card - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • For use with all DK Prox Card Readers • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-198 MFR# 1508-198

Quantity

DoorKing 1815-318 Windshield Holder $3.09

• Windshield Holder for Vehicle Access • 3-5 Day Lead Time

GD# DKS-1815-318 MFR# 1815-318

Quantity

DoorKing 1815-319 Rearview Mirror Holder $3.09

• Rearview Mirror Holder for Vehicle Access • 3-5 Day Lead Time

GD# DKS-1815-319 MFR# 1815-319

Quantity

Goosenecks

DoorKing 1200-037 Gooseneck - Pad/Post Mount - Heavy Duty Offset / 49" $593.00

• Pad mount - in-ground adapters are available • 49" to top of mounting plate • Sweeps out approximately 14 inches • Constructed from 4x4 steel • 3-5 Day Lead Time

GD# DKS-1200-037 MFR# 1200-037

Quantity

DoorKing 1200-038 Gooseneck - Post Mount - Heavy Duty Offset $494.00

• Post mount • Heavy duty gooseneck with offset • Replaces 1200-048 • 3-5 Day Lead Time

GD# DKS-1200-038 MFR# 1200-038

Quantity

* Required Fields

Your Customization

DoorKing 1835 80 Series Telephone Entry / Access Control System

In stock

Qty

$2,804.00

Summary

Overview

Product Details

The Model 1835 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites. Each 1830 Series unit allows Voice and Data connection over either Cellular, VoIP, Wireless, or POTS. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique "One Touch" CALL button makes this system one of the easiest to use on the market today! The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. The 1835 can be expanded with wired Tracker expansion boards to control up to 48 access points (or 24 with a wireless connection). Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations: passive, active and trap.

The 1835 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:

Cellular 4G-LTE service (note 1)
VoIP (note 2)
POTS - Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.

Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.

Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using - IM Server Modem (subscription required). DoorKing does not recommend using a POTS line for programming the telephone entry system. DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.

Go to Connection Options for further details

Large easy to use A and Z scroll buttons
One Touch "CALL" button
Built-in single-line LCD directory display
Programmable directory codes (1-4 digits)
10 and 11-digit dialing capability
Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (or 24 with a wireless connection)
Live Streaming
Live transactions
Anti-pass back
8000 event transaction buffer
31 Security (permission levels)- 29 Programmable (2 fixed levels)
Database import/export capability
LED Lighting illuminates keypad
Built-in clock/calendar
Holiday schedule
Hold open time zones
Entry code time zones
Built-in postal lock provision
True Full Duplex Communication
Stores up to 3000 telephone numbers and names
Stores up to 255 area codes
Transaction buffer stores last 8000 events
Stores up to 8000 access card codes - dependent on system memory
31 security (permission) levels, 29 programmable with 4 time zones each
8 hold open time zones
Three anti-pass back configurations: passive, active and trap
Elevator control for up to 8 elevators, each serving 64 floors - Requires Elevator Control Board(s)
Expandable to control up to 48 entry points - Requires Tracker Expansion Board(s)
4-digit entry codes, one for each telephone number
3 form "C" dry contact relays
Single-line directory display uses super-twist LCD with 1/2-inch characters
EEPROM memory chip
Requires touch-tone, loop-start central office phone line

Specification

Specifiction
Brand	Doorking

Accessories

Showcased Accessories

Manuals & Resources

Replacement Parts

DoorKing 1598-010 Slave Keypad Interface Board

GD# DKS-1598-010 MFR# 1598-010

• Replacement Wiring Interface Board for 1814-075 Secondary Keypad
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$60.25
DoorKing 1702-501 Cam - 7/8"

GD# DKS-1702-501 MFR# 1702-501

• Cam 7/8"
• 3-5 Day Lead Time
See More Details

$7.80
DoorKing 1804-016 Truss Head Screw

GD# DKS-1804-016 MFR# 1804-016

• Screw Truss Head 6-32 x 3/16"
• 3-5 Day Lead Time
See More Details

$3.45
DoorKing 1804-024 Switch - Micro NO NC C

GD# DKS-1804-024 MFR# 1804-024

• Micro Switch - NO NC C
• 3-5 Day Lead Time
See More Details

$17.50
DoorKing 1804-038 Ribbon Cable

GD# DKS-1804-038 MFR# 1804-038

• Ribbon Cable• Use with 1895-016 Keypad
• 3-5 Day Lead Time
See More Details

$27.25
DoorKing 1804-042 Hole Plug

GD# DKS-1804-042 MFR# 1804-042

• Hole Plug
• 3-5 Day Lead Time
See More Details

$6.35
Doorking 1804-196 Gasket - Speaker / 1/16"

GD# DKS-1804-196 MFR# 1804-196

•Gasket - Speaker / 1/16"
• 3-5 Day Lead Time
See More Details

$7.00
DoorKing 1804-290 Square Speaker

GD# DKS-1804-290 MFR# 1804-290

• Square Speaker - 5 Watt
• 3-5 Day Lead Time
See More Details

$31.25
DoorKing 1804-702 LED Retrofit Kit

GD# DKS-1804-702 MFR# 1804-702

• LED Retrofit Kit
• Use with 1808, 1814, 1815, 1817, 1834, 1835 Surface Mount
• Replaces 1814-070
• 3-5 Day Lead Time
See More Details

$40.25
DoorKing 1807-006 Handset

GD# DKS-1807-006 MFR# 1807-006

• Replacement Handset with Armored Cable
• 3-5 Day Lead Time
See More Details

$251.75
DoorKing 1810-101 Box

GD# DKS-1810-101 MFR# 1810-101

• Box, Phone slant
• 3-5 Day Lead Time
See More Details

$158.25
DoorKing 1814-003 Plastic Display Cover

GD# DKS-1814-003 MFR# 1814-003

• Cover, plastic display
• 3-5 Day Lead Time
See More Details

$27.25
DoorKing 1814-004 Plastic Light Cover

GD# DKS-1814-004 MFR# 1814-004

• Cover, plastic light
• 3-5 Day Lead Time
See More Details

$20.50
DoorKing 1814-049 Terminal - 20-Pin

GD# DKS-1814-049 MFR# 1814-049

• Terminal, 20-pin
• 3-5 Day Lead Time
See More Details

$66.00
DoorKing 1814-053 Faceplate

GD# DKS-1814-053 MFR# 1814-053

• Face Plate, Phone Surface, 3-Button
• 3-5 Day Lead Time
See More Details

$229.75
DoorKing 1814-054 Faceplate

GD# DKS-1814-054 MFR# 1814-054

• Face Plate, Phone Flush, 3-Button
• 3-5 Day Lead Time
See More Details

$342.00
DoorKing 1814-101 Box

GD# DKS-1814-101 MFR# 1814-101

• Box, Phone Flush
• 3-5 Day Lead Time
See More Details

$254.00
DoorKing 1814-140 Button Assembly - Chrome A

GD# DKS-1814-140 MFR# 1814-140

• Button Assembly, Chrome A
• 3-5 Day Lead Time
See More Details

$41.00
DoorKing 1814-141 Button Assembly - Chrome Z

GD# DKS-1814-141 MFR# 1814-141

• Button Assembly, Chrome Z
• 3-5 Day Lead Time
See More Details

$41.00
DoorKing 1814-142 Button Assembly - Chrome CALL

GD# DKS-1814-142 MFR# 1814-142

• Button Assembly, Chrome CALL
• 3-5 Day Lead Time
See More Details

$41.00
DoorKing 1835-009 Control Board

GD# DKS-1835-009 MFR# 1835-009

• Circuit Board Replacement Part
• Memory Not Included
• For 1835 Wall Mount Systems Only
• No Display
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$1,540.00
DoorKing 1835-010 Control Board

GD# DKS-1835-010 MFR# 1835-010

• Circuit Board Replacement Part
• Memory Not Included
• For 1835 Surface & Flush Mount Systems Only
• Includes Display
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$1,540.00
DoorKing 1891-010 LCD Directory Display

GD# DKS-1891-010 MFR# 1891-010

• LCD Directory Display
• Single Line / 20 Character
• Use with 1834 & 1835 Systems
• 3-5 Day Lead Time
See More Details

$599.00
Doorking 1897-050 Rubber O Tensioner

GD# DKS-1897-050 MFR# 1897-050

• Rubber O Tensioner for Logo
• 3-5 Day Lead Time
See More Details

$6.00
DoorKing 1897-053 Gasket

GD# DKS-1897-053 MFR# 1897-053

• Gasket
• For 9000
• 3-5 Day Lead Time
See More Details

$7.70
DoorKing 1998-010 Control Board

GD# DKS-1998-010 MFR# 1998-010

• Replacement Microphone Board Only
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$89.00
DoorKing 2348-010 Control Board

GD# DKS-2348-010 MFR# 2348-010

• Elevator Control Board Only
• For Use With Models 1833, 1835, 1837 & 1838
• Requires 16VAC Power Transformer - Included with Enclosures
• 2 Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable
See More Details

$1,540.00
DoorKing 2356-010 PCB LED Light

GD# DKS-2356-010 MFR# 2356-010

• PCB LED Light Staright
• 3-5 Day Lead Time
See More Details

$20.75
DoorKing 2600-734 Nameplate - Plastic DKS Small

GD# DKS-2600-734 MFR# 2600-734

• Nameplate - Plastic Small
• 3-5 Day Lead Time
See More Details

$13.25
DoorKing 2802-040 Clamp - Washer Push On

GD# DKS-2802-040 MFR# 2802-040

• Washer Push on Clamp
• 3-5 Day Lead Time
See More Details

$5.45
DoorKing 2902-003 Nut - Nylon Lock - 6-32

GD# DKS-2902-003 MFR# 2902-003

• Nut - Nylon Lock - 6-32
• 3-5 Day Lead Time
See More Details

$4.45
DoorKing 2902-006 Nut - Nylon Lock - 10-32

GD# DKS-2902-006 MFR# 2902-006

• Nut - Nylon Lock - 10-32
• 3-5 Day Lead Time
See More Details

$4.40
DoorKing 2905-003 Screw - Round Head - 6-32 x 1/2

GD# DKS-2905-003 MFR# 2905-003

• Screw - Round Head - 6-32 x 1/2
• 3-5 Day Lead Time
See More Details

$4.30
DoorKing 3002-004 Spacer - Nylon 6 x 7/16

GD# DKS-3002-004 MFR# 3002-004

• Spacer - Nylon 6 x 7/16
• 3-5 Day Lead Time
See More Details

$4.70
DoorKing 4001-035 Lock & Keys

GD# DKS-4001-035 MFR# 4001-035

• Lock N16058BDxSFx2K Key 16120
• Includes Lock & 2 Keys
• 3-5 Day Lead Time
See More Details

$37.00
