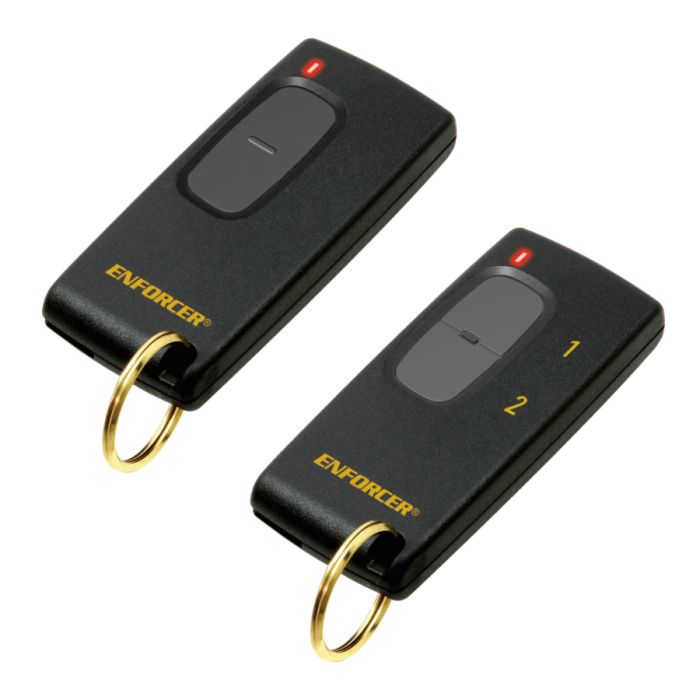

Seco-Larm HL-951T-SQ RF Key Fob Transmitters - 900 MHz

The ENFORCER 900MHz HL-series RF transmitters and receivers use digital modulation for improved immunity to interference, better signal penetration in environments with heavy obstructions, and significantly longer range of up to 1,800ft (550m)* line of sight. The transmitter’s ultra-low power consumption gives you longer battery life with easy to obtain coin-type batteries (CR-2032).

Features

• 917MHz Frequency
• Wide voltage range, 10~24 VAC or 9~48 VDC, for more applications
• Over 2.028×1031 (20.28 nonillion) possible codes to thwart code crackers and potential for duplicate codes
• PCB antenna – no external antenna to be installed, adjusted, vandalized, or damaged
• Five individually programmable output modes
• Up to 99 button codes per channel
• Available with 1 or 2 channels to control 1 or 2 devices
• Programming by switch, no need to cut jumpers
• LED Indicates RF reception and programming functions
• RF Signal strength / site survey test mode to find optimal installation location
• Compatible with all HL-series transmitters of same frequency
• Patented

*Actual operating range will vary depending on the installation and operating environment

Specifications

• 917MHz RF Frequency
• IP Rating Waterproof IP68
• Over 20,280,000,000,000,000,000,000,000,000,000 possible codes No. of Codes
• 1-5/16"x3-1/16"x1/2" (34x78x12.6mm) Dimensions
