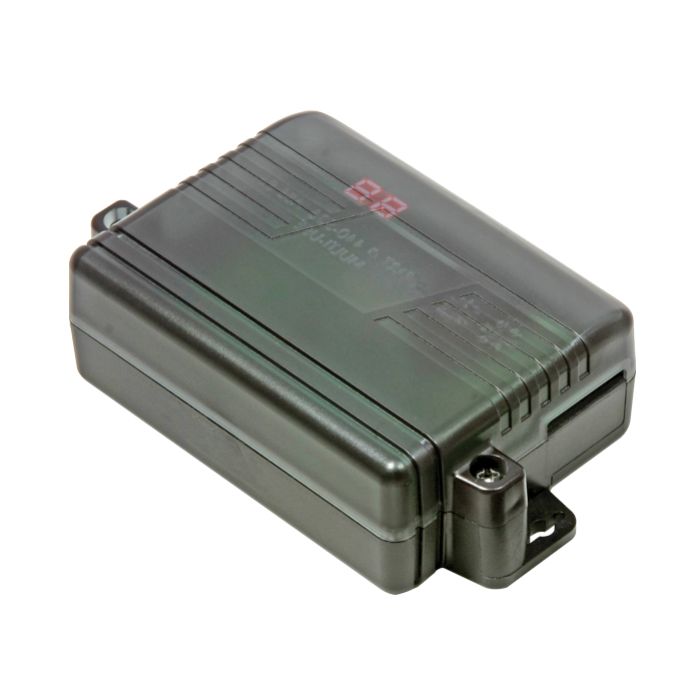

Seco-Larm HL-951R-SQ RF Receivers - 900 MHz

The ENFORCER 900MHz HL-series RF transmitters and receivers use digital modulation for improved immunity to interference, better signal penetration in environments with heavy obstructions, and significantly longer range of up to 1,800ft (550m)* line of sight. The transmitter’s ultra-low power consumption gives you longer battery life with easy to obtain coin-type batteries (CR-2032).

Features

• 917MHz Frequency
• Wide voltage range, 10~24 VAC or 9~48 VDC, for more applications
• Over 2.028×1031 (20.28 nonillion) possible codes to thwart code crackers and potential for duplicate codes
• PCB antenna – no external antenna to be installed, adjusted, vandalized, or damaged
• Five individually programmable output modes
• Up to 99 button codes per channel
• Available with 1 or 2 channels to control 1 or 2 devices
• Programming by switch, no need to cut jumpers
• LED Indicates RF reception and programming functions
• RF Signal strength / site survey test mode to find optimal installation location
• Compatible with all HL-series transmitters of same frequency

*Actual operating range will vary depending on the installation and operating environment

Specifications

• 917MHz Operating frequency
• 99 transmitter button codes per channel
• 10~24 VAC, 9~48 VDC Operating voltage
• Operating current – Standby: 8mA@12VDC / 5mA@24VDC / 2mA@48VDC (typical)
• 100mA@12VDC / 50mA@24VDC / 25mA@48VDC per channel Operating current – Active:
• Independent, sequence, access control relay output
• 1~99 sec momentary (default, 1s), 1~99 min momentary, toggle, latch, follow (validity) relay modes
• Number of Relays
• HL-951R1-SQ: 1
• HL-951R2-SQ: 2
• Form C 10A@14VDC relay contacts
• 2-Digit, 7-segment LED Digital display
• Screw terminals, +, -, with NO/NC/COM per relay Connectors
• -40°~167° F (-40°~75° C) Operating temperature
• 3-15/16"x2-1/2"x1-3/16" (100x63x30 mm) Dimensions
