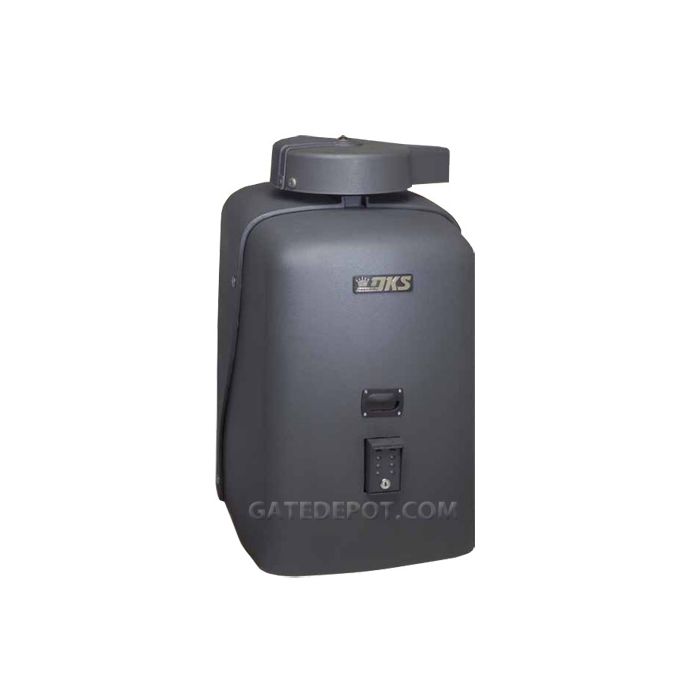

DoorKing 6555 1 HP Swing Gate Operator

Be the first to review this product

• 25' x 2,000 Lbs • 230VAC Power Source / 230VAC Operating Voltage • Opens 90° ~ 16 Seconds • Continuous Duty - 60 Cycles per Hour • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time Not on price list 2019-07-15

From $72.95

To $1,387.20

SKU

DKS-6555-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize DoorKing 6555 1 HP Swing Gate Operator

Secondary Entrapment Prevention Devices - REQUIRED

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options

Seco-Larm E-936-S45RRGQ Enforcer Reflective Photo Eye - 45' $72.95

• 45 Ft. Range • 12-30V AC/DC • Weatherproof IP66 Housing • ETL UL325-2016 Compliant • 1-Year Manufacturer Warranty

GD# SCL-e-936-s45rrgq MFR# E-936-S45RRGQ

Quantity

Receiver and Remotes

LiftMaster 811LMX-MC Transmitter - 1 Button $17.50

• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch

GD# LFM-811lmx-mc MFR# 811LMX-MC

Quantity

LiftMaster 850LM-MC Receiver - 3 Channel / Universal $68.50

• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty

GD# LFM-850lm-mc MFR# 850LM-MC

Quantity

Keypad

Liftmaster KPW250-MC Wireless Keypad - Universal $243.25

• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys

GD# LFM-kpw250-mc MFR# KPW250-MC

Quantity

Liftmaster KPW5-MC Wireless Keypad $144.75

• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys

GD# LFM-kpw5-mc MFR# KPW5-MC

Quantity

Exit Eand

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead $138.75

• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA

GD# EMX-2805-1 MFR# EMX-2805-1

Quantity

Primary/Secondary Interconnect Wire - Secondary Operator comes with 50' Interconnect Wire

DoorKing 2600-755 Master Slave Interconnect Wire - 30' $191.25

• 30' • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • Not Suitable for Direct Burial - Requires Conduit • 3-5 Day Lead Time

GD# DKS-2600-755 MFR# 2600-755

Quantity

DoorKing 2600-756 Master Slave Interconnect Wire - 40' $228.75

• 40' • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • Not Suitable for Direct Burial - Requires Conduit • 3-5 Day Lead Time

GD# DKS-2600-756 MFR# 2600-756

Quantity

DoorKing 2600-757 Master Slave Interconnect Wire - 50' $281.50

• 50' • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • Not Suitable for Direct Burial - Requires Conduit • 3-5 Day Lead Time

GD# DKS-2600-757 MFR# 2600-757

Quantity

* Required Fields

Your Customization

DoorKing 6555 1 HP Swing Gate Operator

In stock

Qty

$72.95

Summary

Overview

Product Details

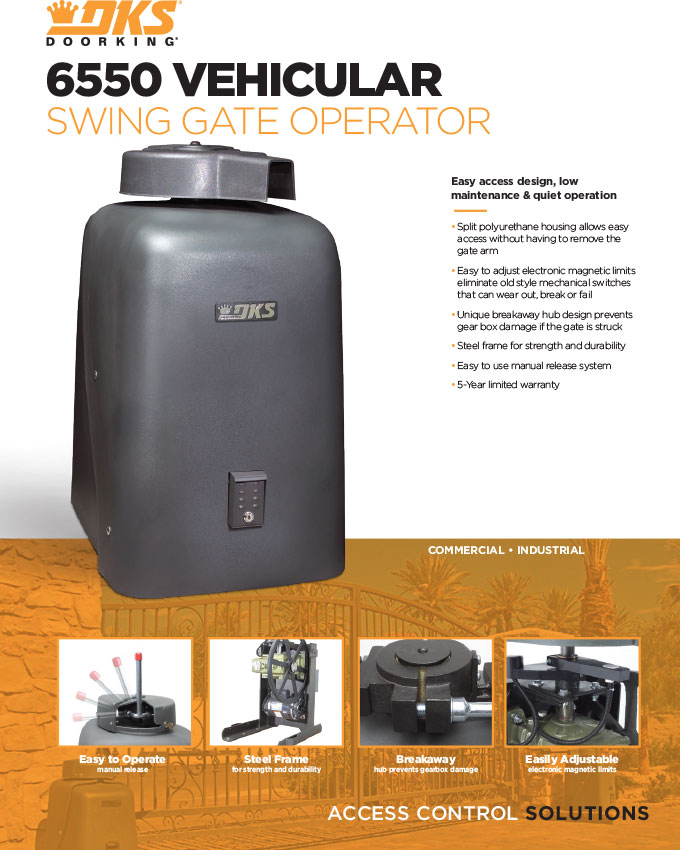

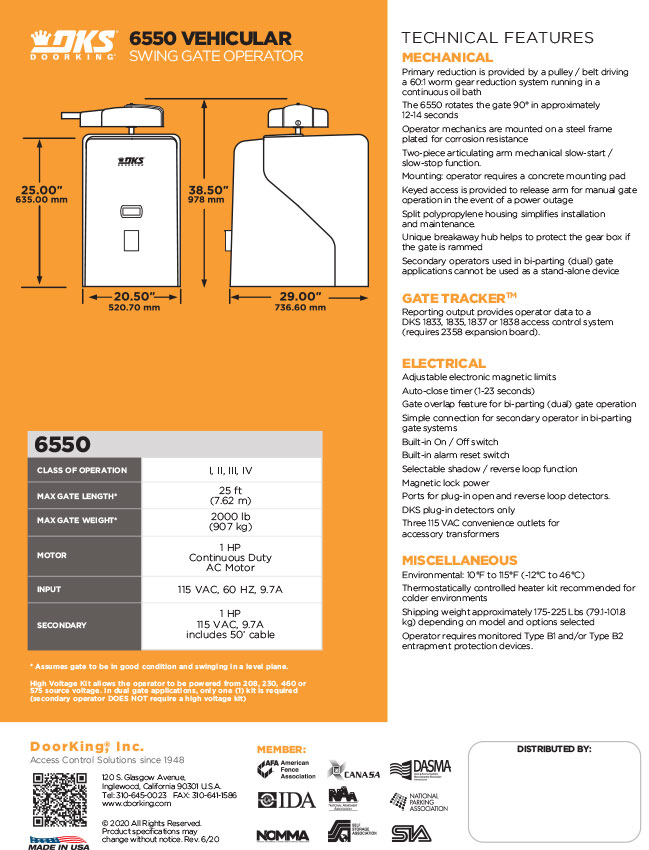

The 6550 operator is designed to operate very large vehicular swing gates in commercial and industrial applications.

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

Adjustable, no maintenance magnetic limits
Overlap feature for bi-parting swing gate operation
Simple connection for secondary operator in bi-parting applications
Selectable shadow/reverse loop function
Magnetic lock power provided
Ports for plug-in loop detectors
Gate tracker reporting output
Programming switches
Built-in reset switch
Built-in power On/Off switch
Secondary unit includes 50 Ft cable
Maximum gate width 25-ft
Maximum gate weight 2000 pounds*. (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
230 VAC
Class I, II, III and IV applications
Compliant with UL 325 and 991, ETL Listed
MADE IN USA
