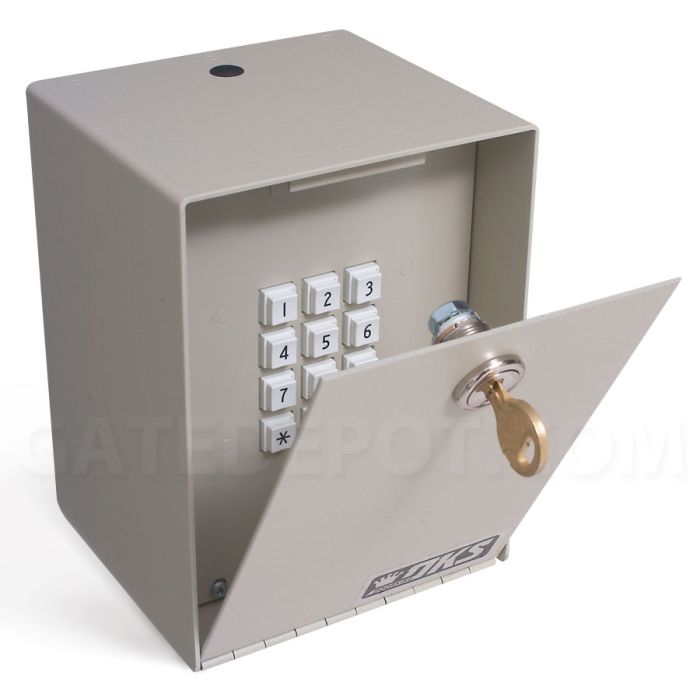

DoorKing 1520-081 Stand-Alone Door Controller
• Connects to any 26-bit wiegand device
• Stores up to 1000 device codes
• Built-in programming keypad
• Indoor or outdoor use
• 2 year limited factory Manufacturer Warranty
• All Products Require a 3-5 Day Lead Time
From $571.00
To $3,051.50
SKU
DKS-1520-081-bundle
Product Details
The 1520 provides users with a full feature, single door, stand-alone Access Control System.
- Memory size: 1000 card (device) codes
- Built-in keypad for easy programming
- Transaction buffer stores up to 3656 events
- Input power is 16 VAC (supplied) or 12-24 VDC, 125 ma
- RS-232 port for connection of serial printer — Transactions can be printed in real time mode or stored and printed at a later time
- Clock and transaction buffer will maintain data in the event of a power failulre for up to 3 days
- Four time zones for controlling access
- Four hold-open time zones
- Timed anti-pass back: 1-59 minutes
- Can connect to almost any 26-bit wiegand device — keypads, card readers, RF receivers, etc.
Brand | Doorking |
---|
Showcased Accessories
- Integrated Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Credentials - Cards, Tags, Fobs & Transponders
- Radio Remotes
- All Products
- Batteries
- Power Supplies & Transformers
- Wire & Cable
Product Manuals
doorking-1520-manual_2017-04_Rev_F
(831.25 kB)
doorking-1520-manual_2014-07_Rev_D
(867.24 kB)
doorking-1520-manual_2002-05_Rev_C
(102.98 kB)
Product Brochures
doorking-1520-1524-brochure_2014-07
(606.60 kB)
Additional Resources
doorking-1520-print-to-pc-guide_2011-06
(107.88 kB)

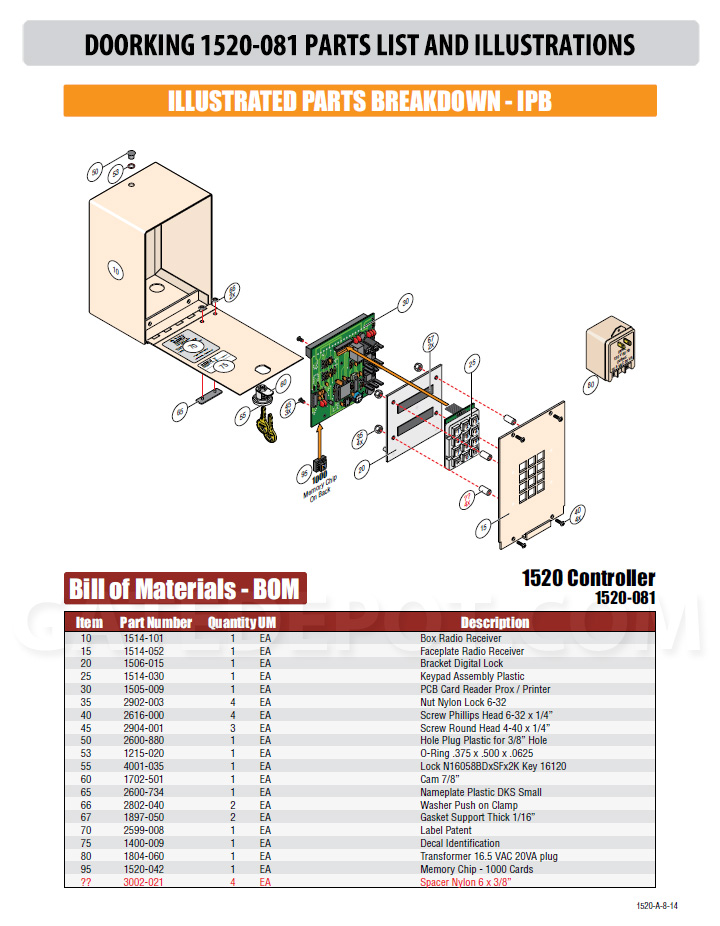

doorking-1520-081-IPB_-2014-08-Rev-A
(269.20 kB)
