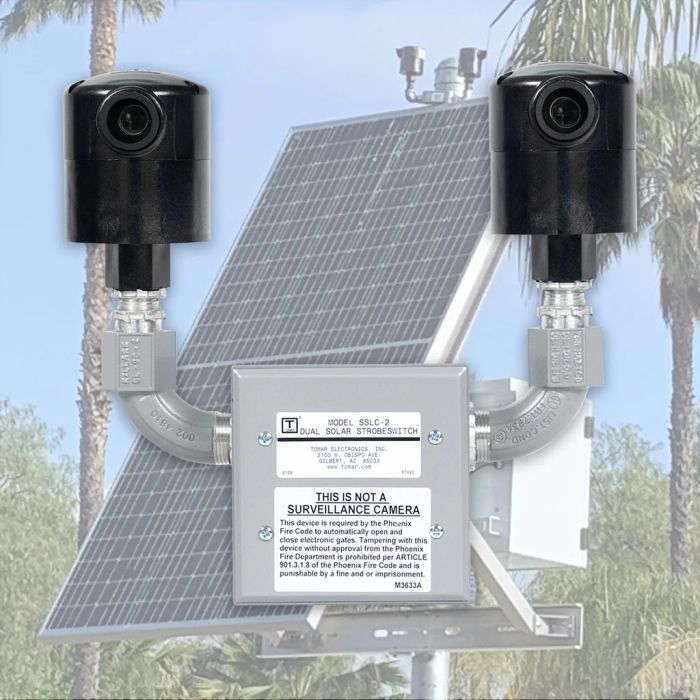

Tomar SSLC-2 Dual Low Current Strobeswitch

PRODUCT OVERVIEW

The model SSLC-2 STROBESWITCH™ is a compact detector which detects a special strobe light signal and opens access gates to allow quick entrance. The detector is activated by the strobe emitters used by most fire department emergency vehicles to control traffic signals en route to a fire.

*Global Traffic Technologies, GTT, Discriminator, and Opticom are trademarks of Miovision Technologies Incorporated and not affiliated with TOMAR Electronics Inc.

How it Works

The emergency vehicle uses a special strobe light to transmit a continuously flashing optical signal. The TOMAR 1790–1014 STROBESWITCH™ receives this signal, and if the signal format is correct, activates a relay.

The relay contacts may be used to control security gates, fire department garage doors, and other devices. Signaling is optical by line of sight, and the 1790 can operate indoors or outdoors, in bright sunlight, or in any weather.

The unit is not susceptible to radio frequency interference, and uses digital frequency discrimination to reject unwanted signals, such as flashlights, emergency vehicle lighting systems, flashing signs, etc. SSLC-2 STROBESWITCH™

SSLC-2 Product Specs

Range: 200 feet typical, but depends on the intensity of strobe emitter

Field of View: 10º vertical, 90º horizontal

Signal Acquisition Time: 0.64 seconds

Function Indicator: The unit has a red LED that illuminates whenever a proper optical signal is received. The LED is visible through the viewport and can be seen for 25 feet or more. This feature can be used with the optional Hand Held Tester to verify the unit’s operation.

Frequency:

F14 = 14.035 Hz ± .25 Hz (high priority)

F10 = 10.000 Hz ± .25 Hz (low priority)

1790M–2 Power Module:

Voltage: 12–24VDC AC/DC

DPDT relay output: 2A @ 30VDC, 0.6A @ 120VAC

Time Delay: 0–30 minutes plus continuous latch mode
