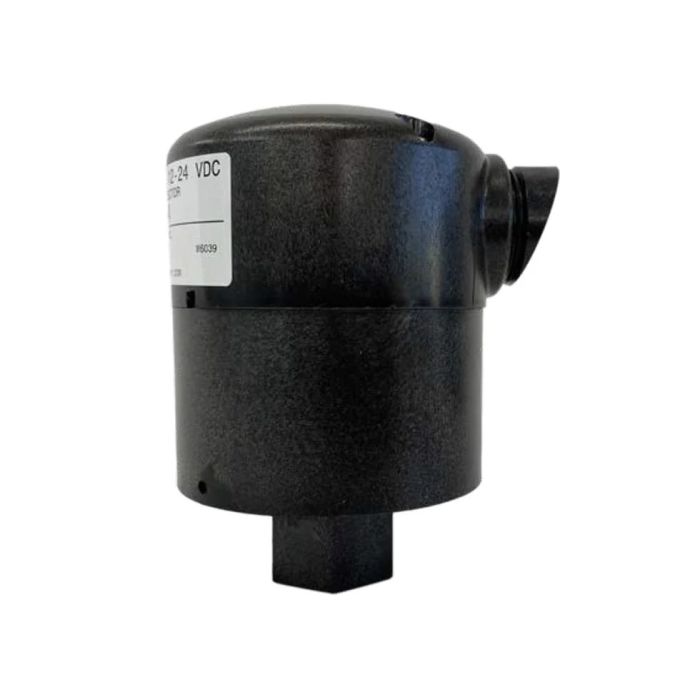

Tomar SSLC-1014 Low Current Strobeswitch

OVERVIEW

The TOMAR model SSLC-1014 Low Current STROBESWITCH™ is a compact, low-current detector for opening access gates automatically for properly equipped emergency vehicles. The SSLC-1014 features a low idle current draw, making it ideal for solar-powered gate openers.

The TOMAR STROBESWITCH™ is activated by the optical emitters used by most fire department emergency vehicles to control traffic signals en route to an incident. The model SSLC-1014 features a 1/2” female pipe hub mounting base.

Like all TOMAR STROBESWITCH™ detectors, the SSLC-1014 is compatible with optical signals from all TOMAR STROBECOM II® and GTT OPTICOM* emitters.

* Registered trademark of the GTT Corporation.

How it works

An emergency vehicle uses a special optical emitter to transmit a signal. The TOMAR STROBESWITCH™ receives this signal, and if the signal format is correct, activates its solid-state output relay. The relay output may be used to control security gates, fire department garage doors, and other devices.

Signaling is optical by line of sight, and the TOMAR STROBESWITCH™ can operate indoors or outdoors, in bright sunlight, or in any weather. The unit is not susceptible to radio frequency interference and uses digital frequency discrimination to reject unwanted signals, such as flashlights, emergency vehicle lighting systems, flashing signs, etc.

SSLC-1014 Specs

Range: 200 feet typical, but depends on the intensity of the optical emitter

Field of View: 60º conical

Signal Acquisition Time: 1.5 seconds

Function Indicator: SSLC has an internal LED function which allows the installer to confirm proper function at the time of installation.

Input Power Output Rating:

12VDC 4mA idle current

24VDC 2mA idle current

24VAC 5mA idle current

SPST solid-state relay output 100mA @ 120VAC

0–30-minute time delay plus test mode

Multiple Directions: Multiple SSLC-1014 detectors can be paralleled to activate gate openers from multiple directions.
