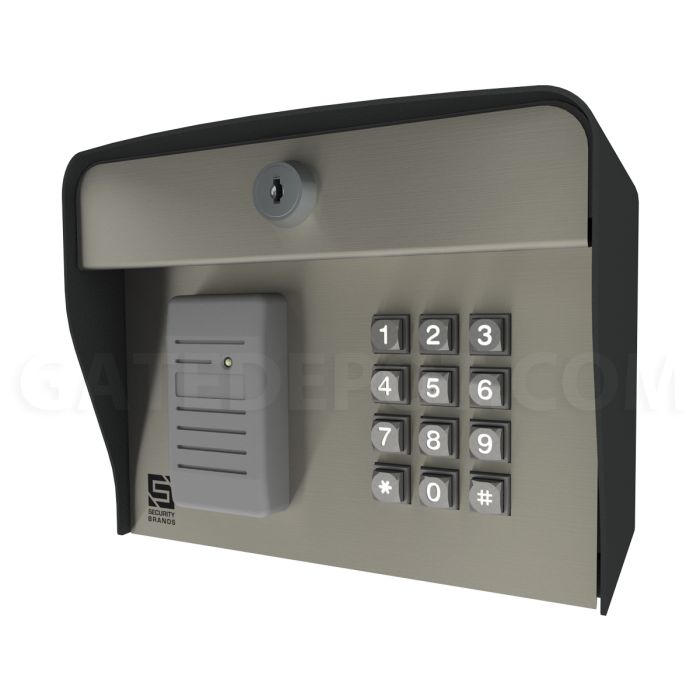

Security Brands Edge E3 27-230HID Smart Keypad / Proximity Reader - HID ProxPoint
Product Details
A smart keypad and card reader with an HID® ProxPoint® Plus proximity reader, 1 Wiegand input, a Bluetooth connection, and a mobile administrator app, Edge offers the simplicity of a stand-alone keypad and card reader but adds the power of app-based programming and management. Program and manage with the mobile administrator app. Connect to the unit via Bluetooth to update, sync data, and export reports.
Powerfully Simple App
All programming and management can be done quickly and securely via the app.
SBI Flex 64-Bit Protocol
Our proprietary Wiegand protocol allows for 4- to 11-digit keypad codes with 3-digit facility code for maximum flexibility.
Dual 365-Day Timers
A separate 365-day timer on each relay gives you the versatility and control you need.
Configurable User Permissions
Set specific user permissions on all keypad codes, transmitters, card readers, and vehicle tag readers independently.
Edge Smart Keypad App available on Apple and Android devices.
Two-Year Limited Warranty
Made in the USA from Global Materials
Features
- HID® ProxPoint® Plus proximity reader
- Bluetooth connectivity
- 1 Wiegand input
- Control of up to 2 gates/doors
- 2 event inputs
- 2 digital inputs
- App-based programming and management
- SBI Flex™ 64-bit and standard 26-bit Wiegand protocols
- Limited-use keypad codes with use, 7-day, and 365-day restrictions
- 7-day and 365-day timers (one for each relay)
- Holiday timers (one for each relay)
- Special-event timers (one for each relay)
- Event reports with CSV export
- Random code generation
- Alarm shunt
- Anti-passback
- Firmware updates via app
- Stainless-steel faceplate
- Powder-coated steel enclosure
- LED-backlit keypad
| Manufacturer Part Number | 27-230HID |
|---|---|
| Brand | Security Brands |
