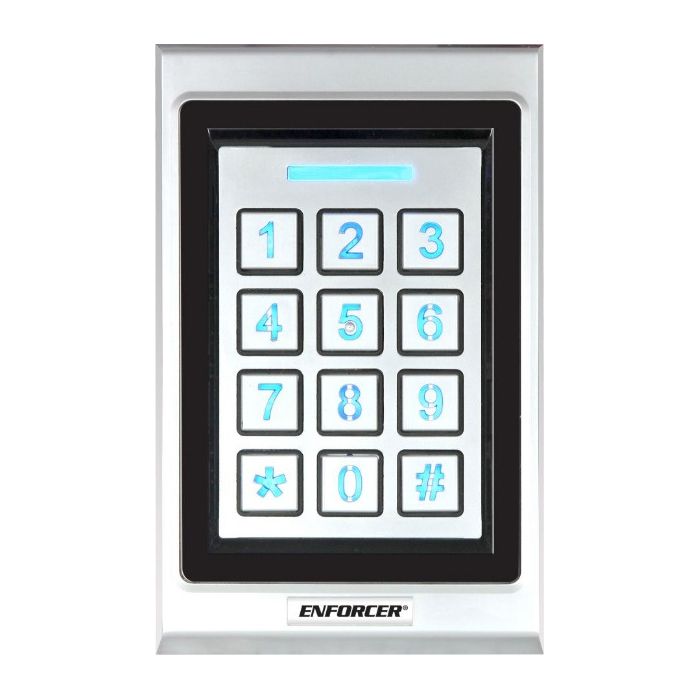

Seco-Larm SK-B141-PQ Keypad & Proximity Reader - Bluetooth Access / Single-Gang

Rethinking Access Control ? Streamlined, fully app-based setup using integrated Bluetooth? wireless technology. No codes to remember, intuitive app design for easy, visual programming. Provides convenience and security to the user and administrator. All data is secured on the device without the risks inherent with an internet connection.

Features

• No Codes to Remember – Intuitive, visual app-based programming and management, 1,000 users, device options, etc.
• No Cloud, No Internet Exposure – All data secured locally on device, set and monitored by the administrator
• App-Based Programming – No complicated software to install, no subscription fees
• More Than Access – Control doors, gates, lighting, machinery, etc.
• Secure, Integrated Bluetooth – Passcode protected, AES 128
• Easy Installation – No control panel necessary
• Output Modes – Timed relock (1~1,800 seconds), continually unlocked or locked, toggle
• Hold Open – Hold door open with code or app (customizable)
• User Customization – Individually customizable output mode / time
• Multiple User Types – Permanent, scheduled, temporary, # of times
• Authorized User Monitor – Displays total number of users to guard against unauthorized additions
• User List Export / Import – for archiving, replicating to other devices, or for off-device editing on a computer
• Three Ways to Unlock or Trigger a Device – Keypad, proximity card, or app
• Unlimited Devices – Access/manage unlimited devices with one app
• Easy Backup/Restore – Off-device storage / restoration / replication
• Wrong-Code Lockout – Customizable # of wrong codes and time
• Tamper Alarm Output – Customizable alarm timing and sensitivity
• Multilingual App Interface – English, Spanish, French, Portuguese, German, Russian, Vietnamese, and Chinese
• Weatherproof (IP65)

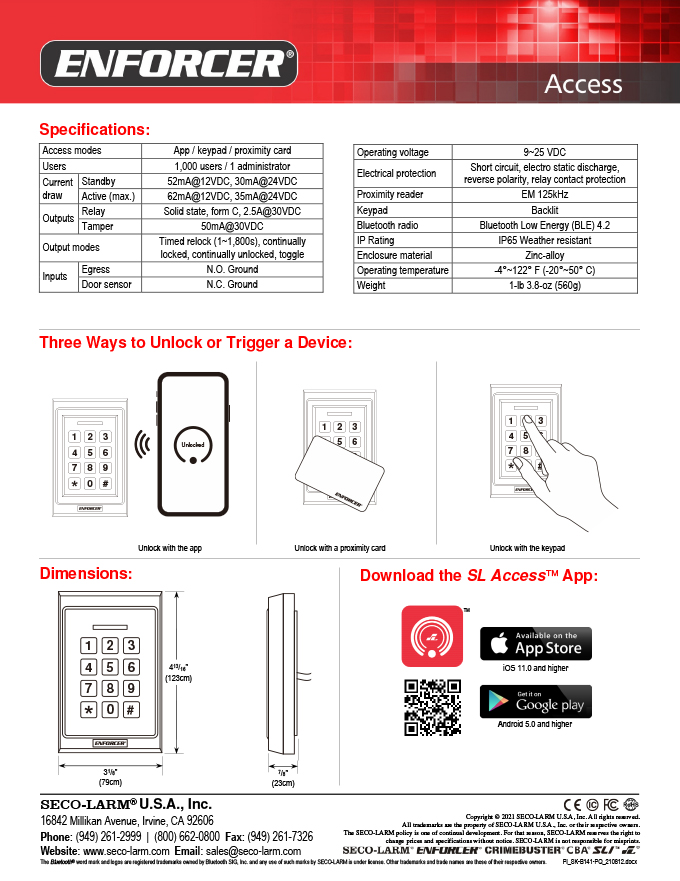

Specifications

• App / keypad / proximity card Access modes
• Bluetooth Low Energy (BLE) 4.2 Bluetooth radio
• 1,000 users / 1 administrator
• 9~25 VDC Operating voltage
• 62mA@12VDC, 35mA@24VDC Current draw (max.)
• Inputs: Egress: N.O. Ground Door sensor: N.C. Ground
• Outputs – Relay: Solid state, form C, 2.5A@30VDC
• Output – Tamper: 50mA@30VDC
• IP65 Weatherproof IP Rating
• -4°~122° F (-20°~50° C) Operating temperature
• 3-1/8"x4-13/16"x7/8" (79x123x23 mm) Dimensions
