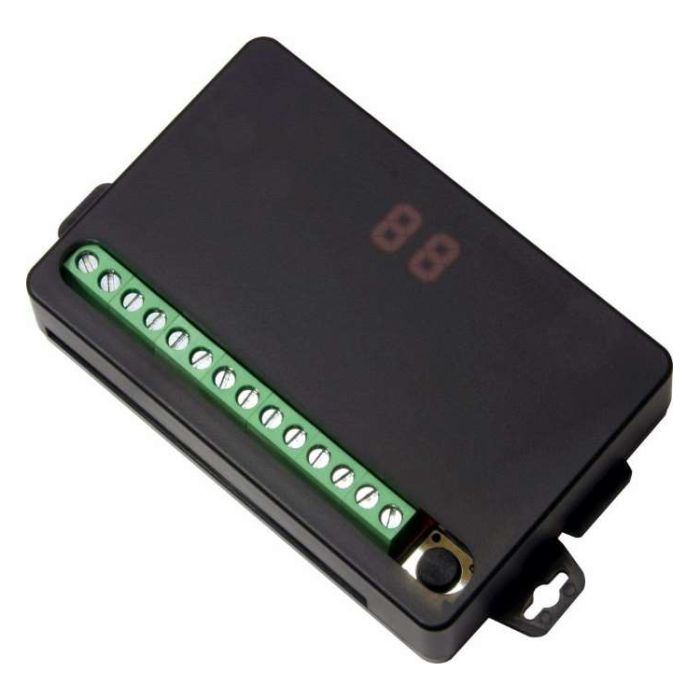

Seco-Larm SK-910RD Receivers

The ENFORCER RF receivers meet the growing demand for multi-channel receivers with multiple independently controlled output modes and can be used to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, or others. Now also dual frequency, they are even more flexible and compatible with all ENFORCER transmitters of the same frequencies, including both fixed and code-hopping CODEBUMP™ variants.

Features

• Five programmable relay output modes – 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validity)
• Dual frequency operation – 315MHz is standard operation. Will also do 433.92MHz with use of optional Extended Range Antenna (SK-93ERSD)
• Range*: Up to 500ft (150m), or up to 1,000ft (300m) with optional Extended Range Antenna (SK-91ERSD)
• Up to 60 transmitter button codes can be learned per channel
• Alphanumeric display indicates learn mode entered, transmitter learned, memory cleared, RF reception, and relay output mode
• Display hidden in semi-transparent case until lit
• Pushbutton programming, no need to cut jumpers
• Compatible with all ENFORCER transmitters of the same frequency

Specifications

• 315MHz* Operating frequency
• 60 per channel Memory capacity
• 10~24 VAC/VDC Operating voltage
• Operating Current
• Standby: 16mA@12VDC, 12mA@24VDC Operating current
• Active: 60mA@12VDC, 50mA@24VDC (both per channel)
• Relay Output
• Type: Independent, sequence, access control
• Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
• Relay Rating: Form C 10A@14VDC
• Screw terminals, +, -, with NO/NC/COM per relay Connectors
• 2-digit, 7-segment LED Digital display
• 5~95%, non-condensing Operating humidity
• 32°~167° F (0°~75° C) Operating temperature
• 4-3/16"x7/8"x2-3/8" (107x23x60 mm) Dimensions

*Can simultaneously receive 433.92MHz signals with optional SK-93ERSD Extended Range Antenna
