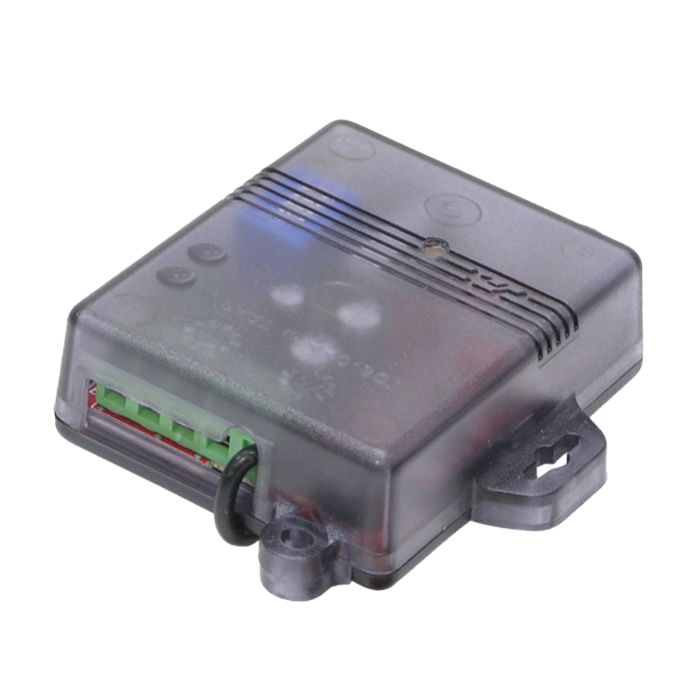

Seco-Larm SK-910RAQ Miniature RF Receiver - 315MHz / 1 Channel
• Small size: 33/16"x29/16"x3/4" (80 x 65 x 19 mm)
• Control garage doors, etc.
• Four programmable relay output modes: 4-Second momentary, 1-second momentary, toggle, and validity outputs
• Flexible operating voltage: 11-24 V AC/DC (16~24 VAC/DC must cut LP4)
• Compatible with all 315MHz ENFORCER transmitters, including both fixed-code and code-hopping (CODEBUMPTM)
• LED Indicates RF reception, learn mode entered, transmitter learned, and memory cleared
• Mode switches for easy transmitter learning
MPN:
SK-910RAQ
$23.45
SKU
SCL-sk-910raq
Product Details
This mini RF receiver is compatible with all 315MHz ENFORCER transmitters, both code hopping and fixed-code (see page 4 of the manual for a list of compatible transmitters). It can be used for a variety of applications, such as allowing the same transmitter to open/close a gate and open/close a garage door. The receiver comes in one- or two-channel versions. Each channel can learn the codes of up to 15 different transmitter buttons.
Specifications
- WIRELESS – 1-Channel Miniature RF Receiver Relay Output
- 11-24 V AC/DC (16~24 VAC/DC must cut LP4) Operating voltage
- 3A Form 'C' relay (NO/NC/C) Output Mode
- 5mA standby, 50mA LED flashing @ 12VDC Current Draw
- Transistor GND x 1, 5A@12VDC Output type
- Compatible with all ENFORCER 315MHz transmitters Transmitter
- 3-3/16" x 2-9/16" x 3/4" (80 x 65 x 19 mm) Dimensions
| Manufacturer Part Number | SK-910RAQ |
|---|---|
| Brand | Seco-Larm |
