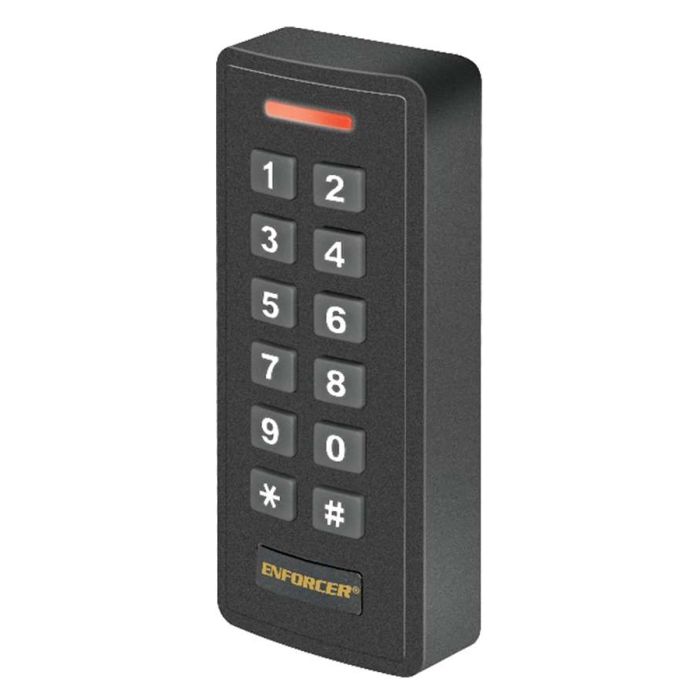

Seco-Larm SK-2612-SPQ Keypad & Proximity Reader - Surface Mount / Weatherproof

The ENFORCER Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader is an advanced security solution that offers both efficiency and convenience. This versatile device can function as a stand-alone controller or a Wiegand reader. The keypad?s unique feature of adding multiple cards in bulk at once significantly streamlines access control management in large organizations.

Features

• 1,000 Users (up to 987 common, 1 super, 2 duress, and 10 visitors)
• 12~18 VDC Operation
• Low current draw – 150mA max.
• Form C relay output – 2A@12VDC
• Adjustable output – 1~99 seconds or toggle
• Built-in tamper alarm and external alarm output
• Door-propped-open / door-forced-open alarm
• Can serve as Wiegand output reader or controller, output and input – 26~44 bits
• EM 125kHz Proximity card reader
• Easy duplication of users to additional devices
• Bulk adding of multiple cards at a time
• Backlit keypad programmable to ON, OFF, or standby OFF automatically ON with keypress
• 2-Door interlock
• Outdoor rated – IP66 weatherproof

Specifications

• 12~18 VDC Operating Voltage
• Current Draw
• Standby: 60mA@12VDC
• Active: 150mA@12VDC (max.)
• Outputs
• Form C: 2A@12VDC
• Alarm: Transistor ground, 2A@12VDC
• Wiegand: 26~44 bits
• Inputs
• Wiegand: 26~44 bits, PIN input – 4, 8, or 10 bits
• Egress: N.O. Ground
• Door Sensor: N.C. Ground
• EM 125kHz Card type
• Black ABS plastic Enclosure material
• -40°~140° F (-40°~60° C) Operating temperature
• 0~98% non-condensing Operating humidity
• 1-15/16"x4-3/4"x15/16" (49x120x24 mm) Dimensions
