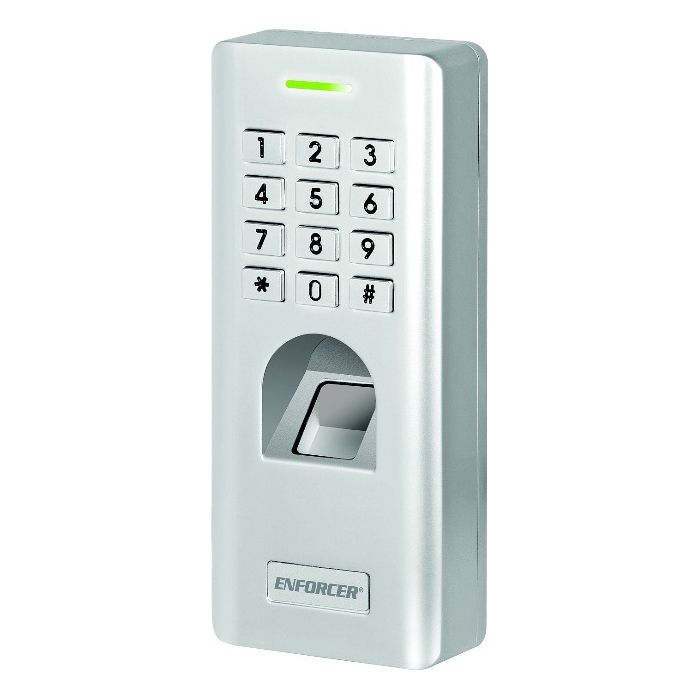

Seco-Larm SK-2612-SFSQ Keypad & Fingerprint Reader

Features

• 500DPI Optical fingerprint reader
• Up to 3,000 users (up to 1,000 fingerprint users, up to 2,000 PIN users)
• User code length 4~6 digits
• Fingerprint identification time – ≤1 second
• Fingerprint false acceptance rate – ≤0.01%
• Fingerprint false rejection rate – ≤0.1%
• 12VDC Operation
• Form C relay output – 2A@12VDC
• Tamper alarm output – 2.5A@12VDC
• Adjustable relay output time – 100ms~99s, or toggle
• Weatherproof – IP66
• Illuminated fingerprint reader window
• 26~44 bit Wiegand output
• 2-Door interlock

Specifications

• 12VDC Operating Voltage
• 45mA@12VDC Current Draw – Standby
• 200mA@12VDC (max.) Current Draw – Active
• 26~44 bit Output- Wiegand
• 2A@12VDC Output – Form C
• 2.5A@12VDC Output- Tamper
• Weatherproof IP66 IP Rating
• N.O. Ground Egress Inputs
• N.C. Ground Door Sensor Input
• Zinc alloy Enclosure material
• -22°~140° F (-30°~60° C) Operating Temperature
• 20~90% Operating Humidity
• 2-1/4"x5-3/8"x1" (58x137x26 mm) Dimensions
