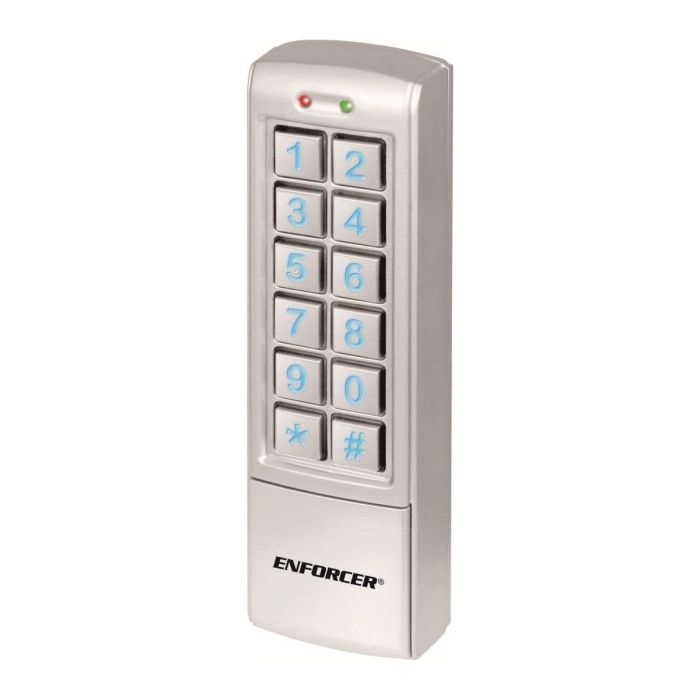

Seco-Larm SK-2323-SDQ Keypad - Mullion Mount / Weatherproof

Features

• 12~24 VAC/VDC operation
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell

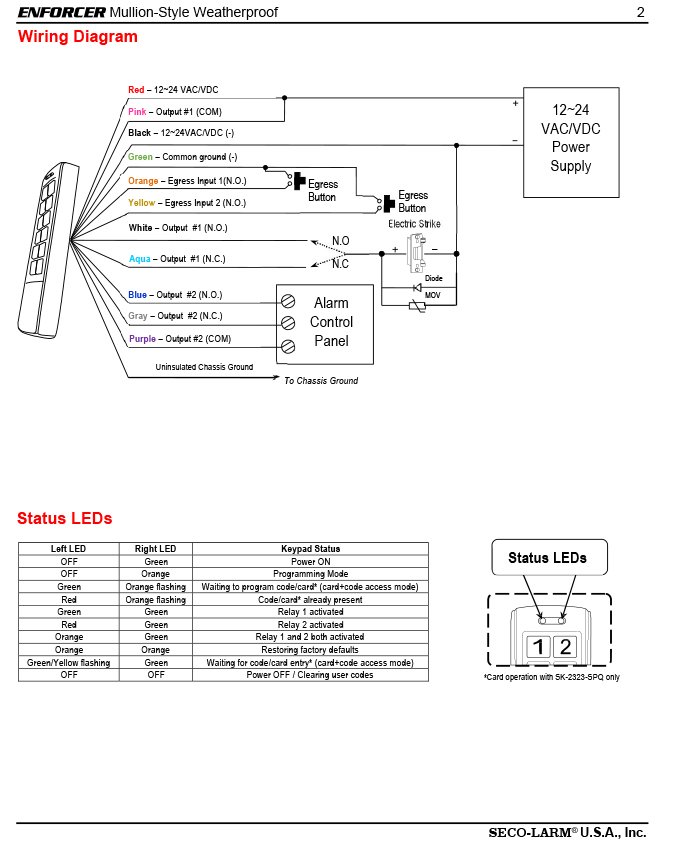

• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• 2 Multi-colored status LEDs
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper sensor for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction

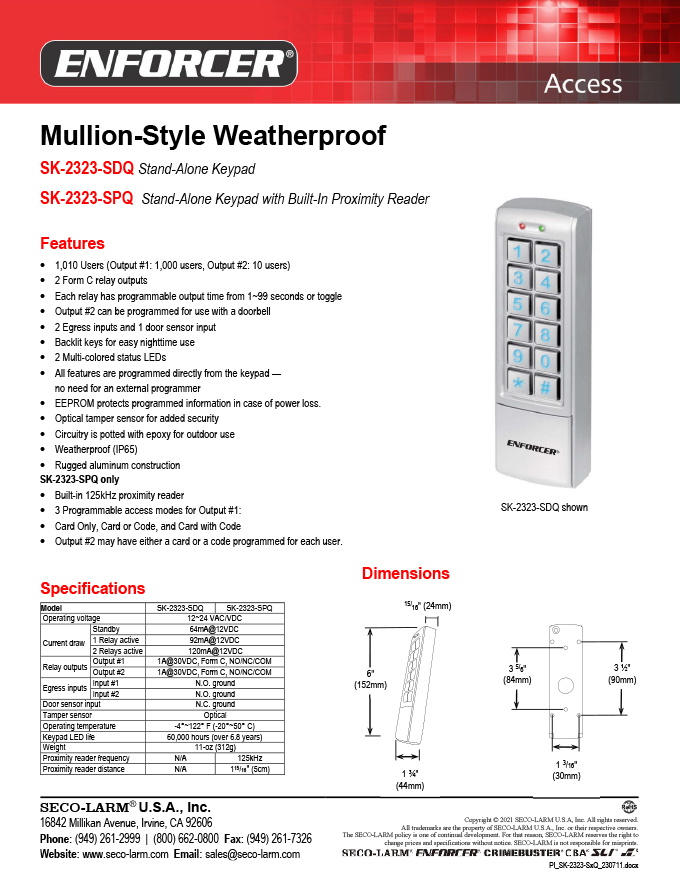

Specifications

• Mullion-Style Weatherproof Digital Access Keypads
• Up to 1,010 Number of User Codes
• 12~24 VAC/VDC Operating Voltage
• 64mA@12VDC Current Draw – Standby
• 1 Relay active: 92mA@12VDC 2 Relays active: 120mA@12VDC Current Draw- Active
• 1A@30VDC, Form C, NO/COM/NC Relay Outputs (2)
• Weatherproof IP65 IP Rating
• 2, N.O. Ground Egress Inputs
• N.C. Ground Door Sensor Input
• Optical Tamper Sensor
• 60,000 hours (over 6.8 years) Keypad LED Life
• -4°~122° F (-20°~50° C) Operating Temperature
• 6" x 1-3/4" x 15/16" (152 x 44 x 24 mm) Dimensions
