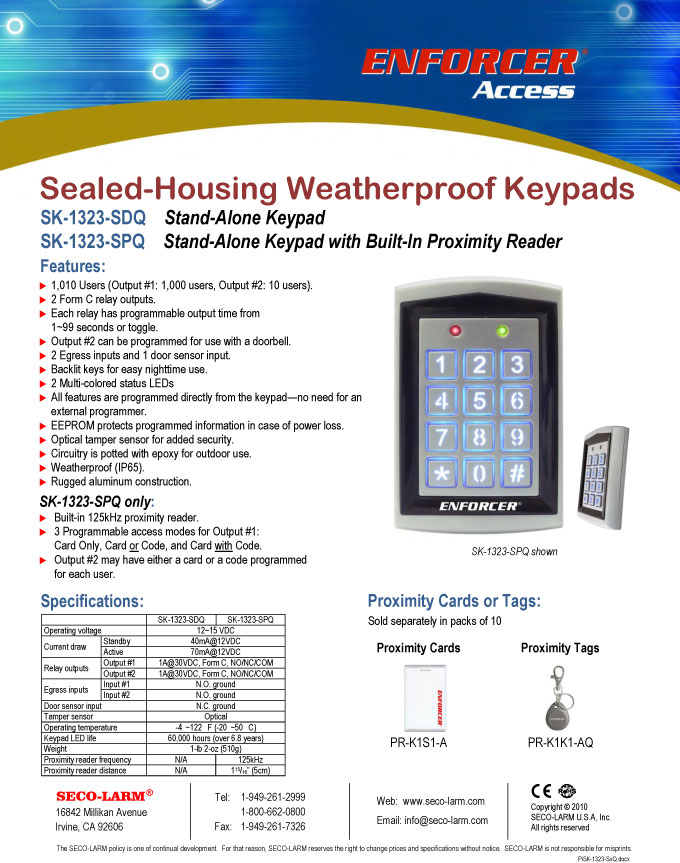

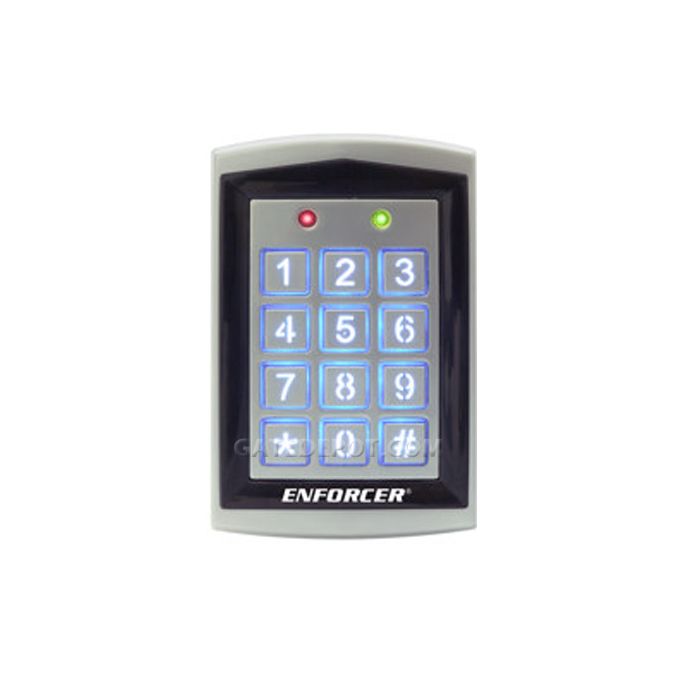

Seco-Larm SK-1323-SPQ Stand-Alone RFID Proximity Reader w/ Keypad

Features

• 12~24 VAC/VDC operation
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• Two multi-colored status LEDs
• Able to mount to a single-gang back box
• All features are programmed directly from the keypad ? no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction
• Built-in proximity card reader
• 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
• Output #2 may have either a card or a code programmed for each user

Specifications

• Sealed Housing Weatherproof Outdoor Digital Access Keypad
• Up to 1,010 User Codes
• 12~24 VAC/VDC Operating Voltage
• Current Draw – Standby: 64mA@12VDC
• Current Draw – Active: 92-120 mA@12VDC
• 1A@30VDC, Form C, NO/COM/NC Relay Outputs (2)
• 2, N.O. Ground Egress Inputs
• N.C. Ground Door Sensor Input
• Optical Tamper Sensor
• 125kHz Proximity Reader Frequency
• 60,000 hours (over 6.8 years) Keypad LED Life
• 1-15/16" (50mm) Proximity Reader Sensing Distance
• -4°~122° F (-20°~50° C) Operating Temperature
• Dimensions: 4-3/4"x3"x7/8" (120x76x22 mm)
• Weatherproof IP65 IP Rating
