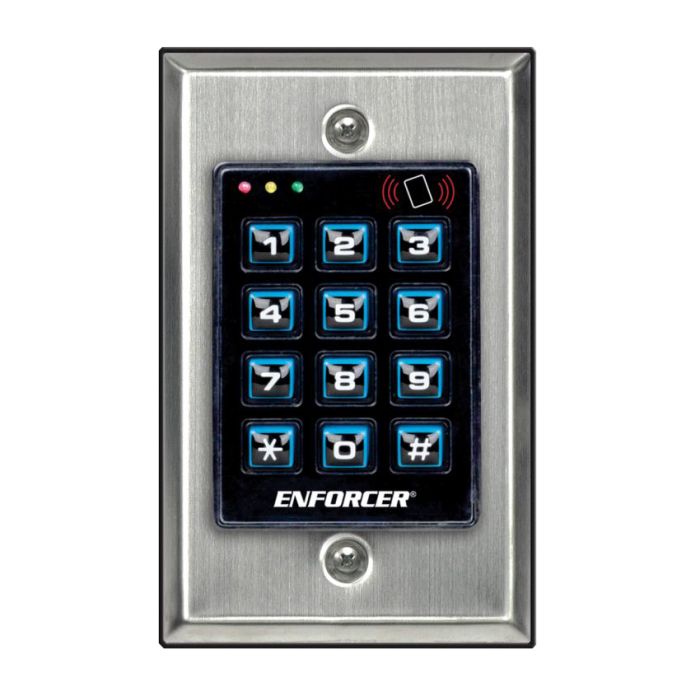

Seco-Larm SK-1131-SPQ Keypad & Proximity Reader - Surface Mount

Features

• Built-in proximity card reader
• 12~24 VAC/VDC Auto-adjusting operation
• Up to 1,000 possible user codes/cards for output 1, 100 for output 2, and 100 for output 3
• Up to 50 possible visitor codes for one-time or limited-time use (1~99 hours)
• Up to 50 duress codes for output 1, 10 for output 2, and 10 for output 3
• Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max. / output 3: transistor ground, 100mA@24VDC
• Outputs 1, 2, and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output N.C. Dry contact, 50mA@24VDC max.
• All features are programmed directly from the keypad; no need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Duress code triggers a silent alarm if a user is forced to open the door under duress
• Egress input lets users exit the premises without keying in the code
• Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
• Mounts to a standard single-gang back box (surface-mount back box included)
• Keypad active or alarm output selectable via jumper
• Interlocking input for connecting to a second keypad
• Door sensor input for anti-tailgating
• Data I/O terminal for split-series setup providing added security
• Expansion port for future optional features

Specifications

• 12~24 VAC/VDC Operating Voltage
• Current Draw
• Standby: 66mA@12VDC
• Keypress: 93mA@12VDC
• Output 1 active: 99mA@12VDC
• Output 1 & 2 active: 126mA@12VDC
• Output 1, 2 & 3 active: 127mA@12VDC
• Total max. current draw: 160mA@12VDC
• Outputs
• #1 Form C: 1A@30VDC
• #2 Form C: 1A@30VDC
• #3 Transistor ground: 100mA@24VDC
• K or A: 100mA@24VDC
• Duress: 100mA@24VDC
• Interlock: 100ma@24VDC
• Tamper:50mA@24VDC
• Inputs
• Egress: N.O. Ground
• Door sensor: N.C. Ground
• Door inhibit: N.O. Ground
• 125kHz (EM125) Proximity Reader Frequency
• 1-1/2" (38mm) Proximity Reader Sensing Distance
• 5~95% Non-condensing Operating Humidity
• -4°~158° F (-20°~70° C) Operating Temperature
• 4-5/8"x2-7/8"x1-15/16" (117x73x49 mm) Dimensions (including back box)
