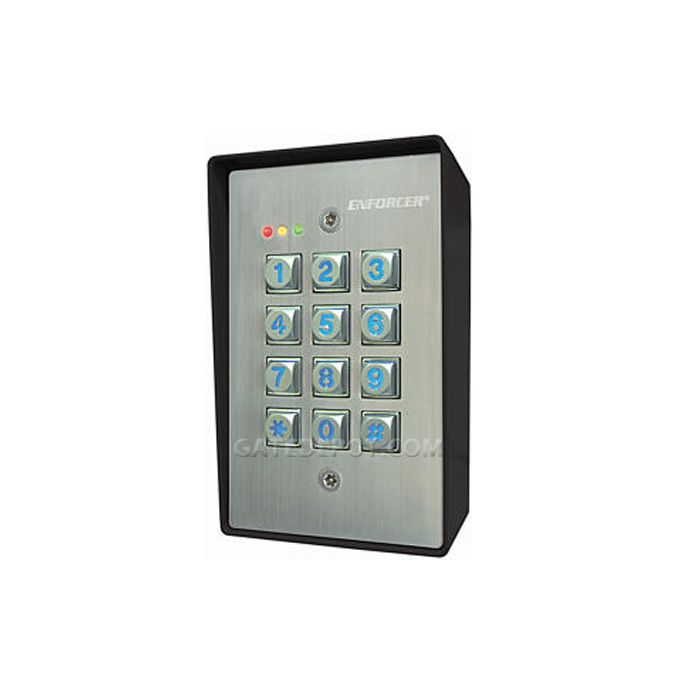

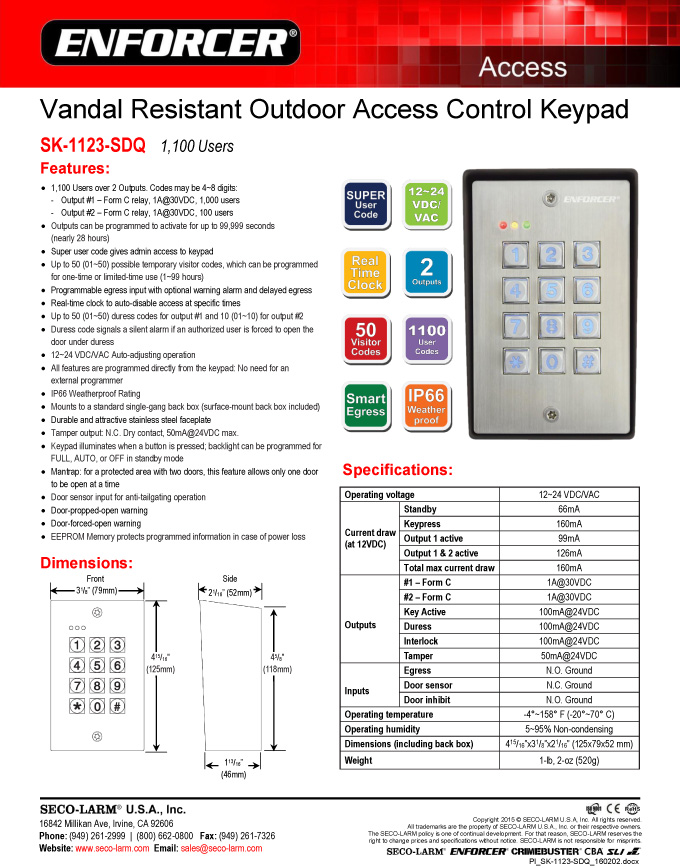

Seco-Larm SK-1123-SDQ Vandal Resistant Keypad - 1,100 Codes

Features

• 12~24 VDC/VAC Auto-adjusting operation
• Up to 1,000 possible user codes (000~999) for output 1 and 100 (001~100) for output 2
• Up to 50 (01~50) possible visitor codes, for one-time or limited-time use (1~99 hours)
• Up to 50 (01~50) duress codes for output 1, 10 (01~10) for output 2
• Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max.
• Outputs 1 and 2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output N.C. Dry contact, 50mA@24VDC max.
• All features are programmed directly from the keypad No need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Egress input lets users exit the premises without keying in the code
• Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
• Data I/O terminal for split-series setup providing added security
• Expansion port for future optional features
• Door sensor input for anti-tailgating
• Interlocking input for connecting to a second keypad
• IP66 Weatherproof
• Surface-mount back box included

Specifications

• Vandal-Resistant Outdoor Digital Access Keypad
• 12~24 VDC/VAC Operating Voltage
• Current Draw – Standby: 66mA@12VDC
• Current Draw – Keypress: 93mA@12VDC
• Current Draw- 1 Relay Active: 99mA@12VDC
• Current Draw – Total Max: 160mA@12VDC
• Current Draw - 1 & 2 Relays Active: 126mA@12VDC
• Relay Output - #1: 1A@30VDC, Form C
• Relay Output - #2: 1A@30VDC, Form C
• Relay Output - Key Active: 100mA@24VDC
• Relay Output - Duress: 100mA@24VDC
• Relay Output - Interlock: 100mA@24VDC
• Relay Output - Tamper: 50mA@24VDC
• N.O. Ground Egress Inputs
• N.O. Ground Door Inhibit Input
• N.C. Ground Door Sensor Input
• -4°~158° F (-20°~70° C) Operating Temperature
• 5~95% Non-condensing Operating Humidity
• Dimensions: 4-15/16"x3-1/8"x2-1/16" (125x79x52 mm)
• Weatherproof IP66 IP Rating
