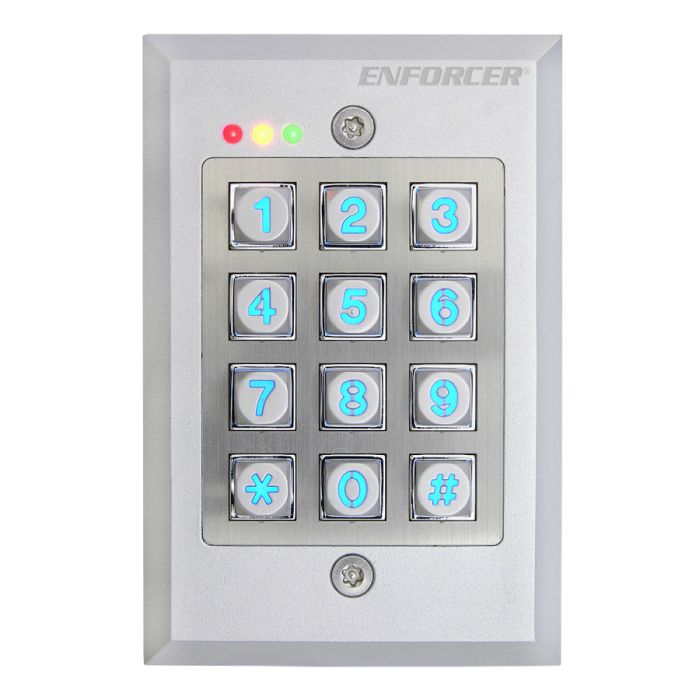

Seco-Larm SK-1123-FDQ Keypad - Flush Mount / Vandal Resistant

Features

• 12~24 VAC/VDC auto-adjusting operation
• Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
• Output #1: Form C relay, 1A@30VDC max.
• Output #2: Transistor ground, 100mA@24VDC
• Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output: N.C. Dry contact, 50mA@24VDC max
• Mounts to standard single-gang back box
• IP66 Weatherproof rating
• Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
• All features are programmed directly from the keypad: No need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
• Duress code signals a silent alarm if an authorized user is forced to open the door under duress
• Egress input lets users exit the premises without keying in the code
• Door sensor input for anti-tailgating operation
• Interlocking input for connecting to a second keypad

Specifications

• 12~24 VDC/VAC Operating Voltage
• 15mA@12VDC Current Draw – Standby
• 40mA@12VDC Current Draw – Keypress
• 65mA@12VDC Current Draw – Output 1 Active
• 66mA@12VDC Current Draw – Output 1 & 2 Active
• 100mA@12VDC Current Draw – Total Max
• 100mA@24VDC Output- #2 Transistor Ground
• 1A@30VDC Output 1
• 100mA@24VDC Output – Duress
• 100mA@24VDC Output – Interlock
• 50mA@24VDC Output- Tamper
• Weatherproof IP66 IP Rating
• N.O. Ground Input – Egress
• N.C. Ground Input – Door Sensor
• N.O. Ground Input – Door Inhibit
• -4°~158° F (-20°~70° C) Operating Temperature
• 5~95% Non-condensing Operating Humidity
• 4-3/4"x3-1/8"x1-13/16" (120x80x46mm) Dimensions
