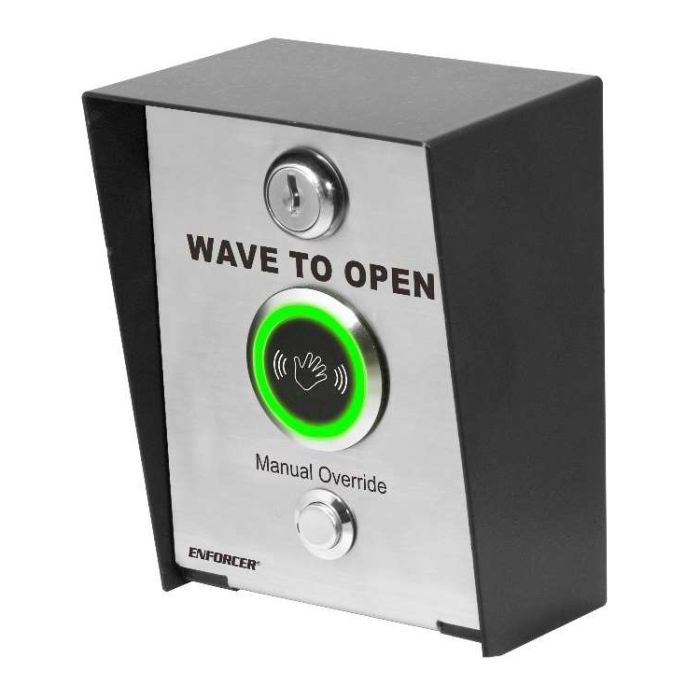

Seco-Larm SD-9963-KSGQ Wave to Open Sensor

The ENFORCER Post-Mount Wave-to-Open Sensor with Access Box and Manual Override Button is a full-featured exit plate which uses IR technology to open a gate or activate a device with the simple wave of a hand reducing the risk of the spread of disease. It is suitable for areas were no special clearance is required for exit and a longer-range sensor may cause unwanted activation. It also includes a manual override button.

Features

• ETL, Conforms to UL Std. 294
• Adjustable sensor range up to 7" (18cm)
• Weatherproof (IP65) for outdoor use
• Stainless steel plate
• Hinged plate easily removes from box for easy wiring
• 1A Relay, adjustable trigger duration 0.8~30 seconds or toggle
• Gooseneck- or wall-mountable
• Manual override button
• LED-illuminated sensor area for easy identification
• Selectable LED colors (turns from red to green or green to red) on sensor activation
• Includes heavy-duty steel box

Specifications

• 12~24 VDC Operating voltage
• Current draw (max. ±10%)
• Standby Red: 18mA@12VDC / 23mA@24VDC
• Triggered Green: 23mA@12VDC / 29mA@24VDC
• Standby Green: 14mA@12VDC/18mA@24VDC
• Triggered Red: 28mA@12VDC/35mA@24VDC
• Form C dry contact (SPDT), 1.2A@24VDC Relay
• 10ms Response time
• LEDs
• Standby: Red*
• Triggered: Green*
• 0.5~30 s or toggle Output duration
• 2"~7" (5~18 cm) Range
• Level I Destructive attack level
• Level I Line security
• Level IV Endurance level
• Level I Standby power
• Weatherproof IP65&10013; IP Rating
• -4°~131° F (-20°~55° C) Operating Temperature
• 4" x 5-1/2" x 3" (102 x 134 x 77 mm) Dimensions

*Color function reversible
‡Front panel only
