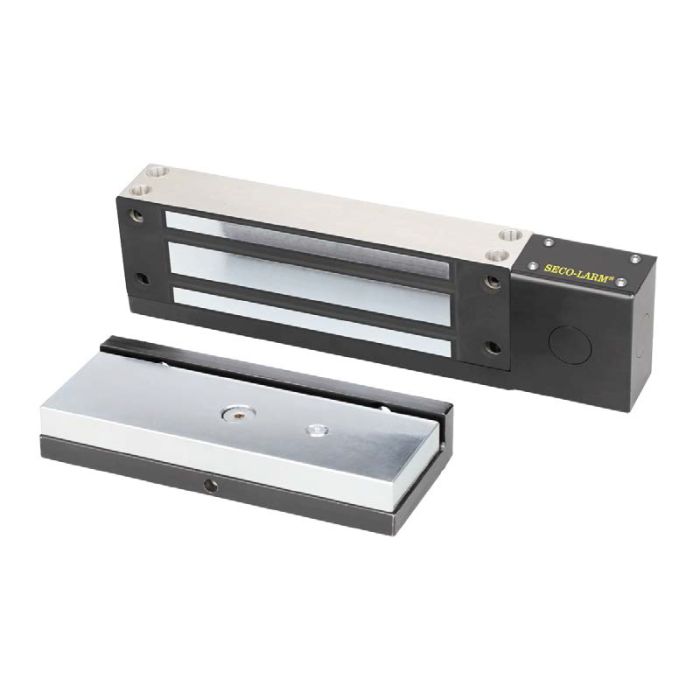

Seco-Larm E-946FC-1K2SQ Electromagnetic Gate Lock - Weldable Surface Mount / 1,200 Lbs
• 1,200-lb (544kg) Holding Force
• 12/24 VDC
• Can be welded or bolted directly to gate and mounted horizontally or vertically
• Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
• Zinc-plated brackets for corrosion resistance
• Maintenance-free, factory-sealed design, IP67 Waterproof
• Water- and vandal-resistant stainless-steel with black finish to match most gates
• Fail-safe operation (releases if power is removed)
MPN:
E-946FC-1K2SQ
$267.85
SKU
SCL-e-946fc-1k2sq
Product Details
The SECO-LARM Electromagnetic Gate Lock with Weldable Bracket combines a strong and durable gate lock with a weldable bracket for ease of installation and greater security. Can be installed horizontally as well as vertically.
Features
- 12/24 VDC
- For use with nearly all types of outdoor sliding and swinging electric gates
- Low current draw of 500mA@12VDC, 250mA@24VDC
- Can be welded or bolted directly to gate and mounted horizontally or vertically
- Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
- Zinc-plated brackets for corrosion resistance
- Maintenance-free, factory-sealed design, IP67 Waterproof
- Water- and vandal-resistant stainless-steel with black finish to match most gates
- Fail-safe operation (releases if power is removed)
- Four knockouts on junction box
- Lifetime limited warranty*
*Warranty applies in the USA and Canada only. Contact SECO?LARM for details.
Specifications
- 12/24VDC Operating Voltage
- 1,200-lb (544kg) Holding Force
- 500mA@12VDC, 250mA@24VDC Current Draw
- IP67 Waterproof IP Rating
- 14°~131° F (-10°~55° C) Operating Temperature
| Manufacturer Part Number | E-946FC-1K2SQ |
|---|---|
| Brand | Seco-Larm |
