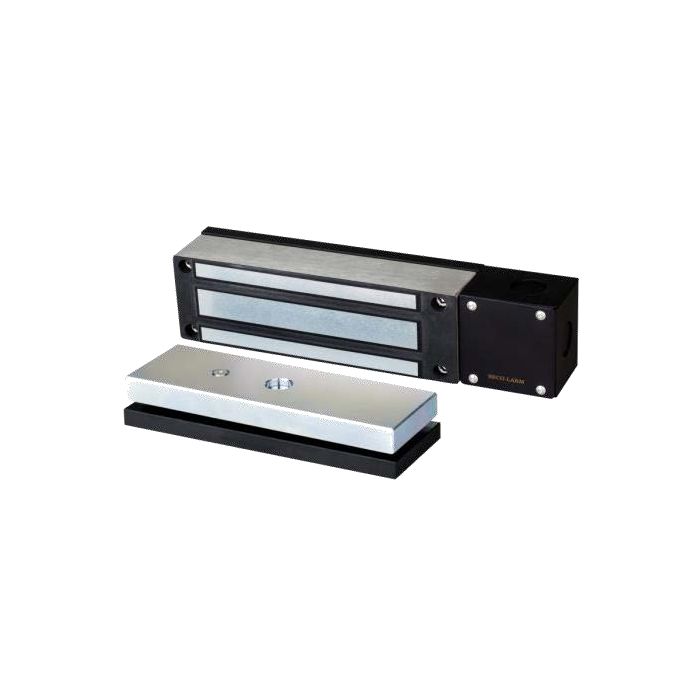

Seco-Larm E-942FC-1K3SQ Electromagnetic Gate Lock - Weldable Face Mount / 1,200 Lbs

Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-1K3SQ is primarily designed for swinging gates.

Features

• 1,200-lb (545 kg) Holding force
• No residual magnetism
• MOV Surge protection
• Face mounting
• For sliding or swinging gates
• Weld or bolt brackets directly to the gate
• Brackets are zinc-plated for corrosion resistance
• Water- and vandal-resistant attractive stainless-steel black finish to match most gates
• Maintenance-free, factory-sealed design
• Fail-safe operation (releases if power is removed)
• Waterproof (IP67) and vandal resistant for indoor and outdoor applications
• Dual-threaded conduit fitting
• Attractive stainless steel housing
• Junction box with 4 knockouts
• Complete mounting hardware for typical installations
• Additional brackets available for easy mounting or atypical situations
• 12/24VDC Selectable
• Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO?LARM for details.

Specifications

• 1,200-lb (544kg) Holding Force
• 12VDC or 24VDC Operating Voltage
• 500mA@12VDC, 250mA@24VDC Current Draw
• IP67 Waterproof IP Rating
• 14°~131° F (-10°~55° C) Operating Temperature
• cUL, UL, CE, RoHS (magnetic lock only) Certification
