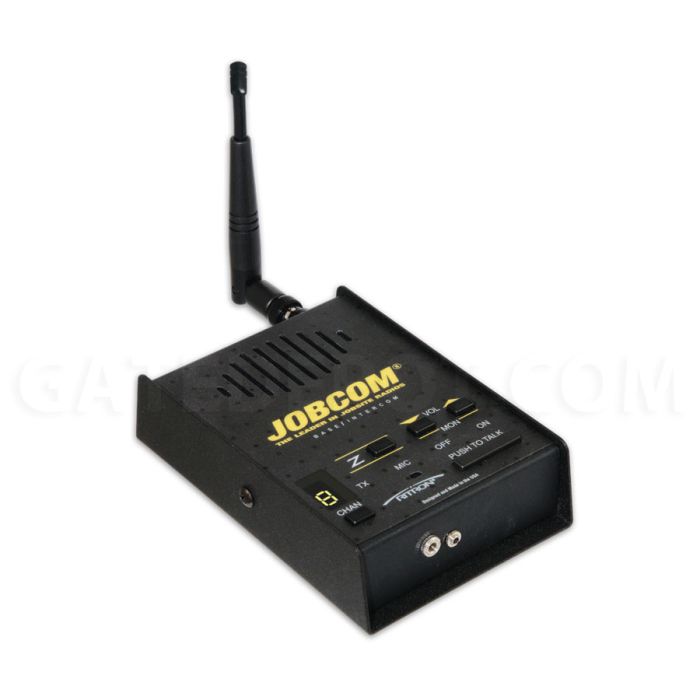

Ritron JBS-147M-GG JBS Series Desktop Base Station

The JBS Series JobCom Wireless Intercom/Base Station is a cost-effective, AC powered, fixed location 2-way radio or wireless intercom. Ideal for use with portable radios, the Ritron wireless PA system, radio callboxes and in systems using portable 2-way radios, it can even be programmed to work through radio repeaters. The desk-top base station works with and is fully compatible with any other business band radio operating in the VHF or UHF frequency band.

Because the radio operates on AC power, there are never any batteries to keep charged or replace. This radio has been specifically designed for commercial and industrial-grade business applications. The all-metal enclosure provides a small, rugged, self-contained, fixed or location radio. The radio can also be operated on 12VDC if needed.

Features

• LED Display - Bright, easy-to-read, LED channel display
• Field-Programmable, Selectable Table Frequencies
• License-Free VHF MURS Model
• Interference Eliminator (Quiet Call) Codes and Digital Quiet Call Codes
• Up to 10 Channel Capability
• Channel Scan Feature - Monitor multiple channels automatically without having to manually switch channels
• DTMF ANI Encode - Can be used to control gates, doors or other devices remotely / programmable on a per channel basis
• 2-Tone Paging Encode- Allows base station to selectively page portables or control gates, doors, sirens, or other devices remotely
• 2-Tone Paging Decode - Allows base station to function as a wireless alerting receiver
• 2 Watt Transmitter
• 10 Channel Capability
• Rugged All-Metal Steel Enclosure
• Small, Compact Size: 1.4" X 3.8" X 5.6"
• Large 1 Watt Output Speaker — Loud, Easy-To-Hear Audio
• NOAA Weather Scan & Alert (VHF models only)
• Narrowband (12.5 kHz)
• 110VAC or 12VDC operation
• One Year Warranty

Specifications

• FCC and Industry Canada (IC) Approved
• Frequency Band Models: VHF MURS, Part 95, License-Free, VHF and UHF, Part 90, License-Required
• RF Channels: Up to 10 Channels, Independent TX/RX frequencies
• Tone/Code Signaling: CTCSS (Quiet Call), Digital Coded Squelch (Digital Quiet Call), 2-Tone Paging Decode, DTMF ANI Encode
• Dimensions: 1.5" H x 3.75" W x 6.0" D
• Weight: 1 lb. 5 oz. with antenna
• Enclosure Material: Steel with e-coat finish
• Earphone Jack: 3.5 mm, disconnects the internal speaker for use with speaker microphone, or headset; field programmable and PC programmable with software and cable
• Microphone/PTT: 2.5 mm, disconnects the internal microphone for external hand microphone or headset
• Antenna Fitting: BNC
