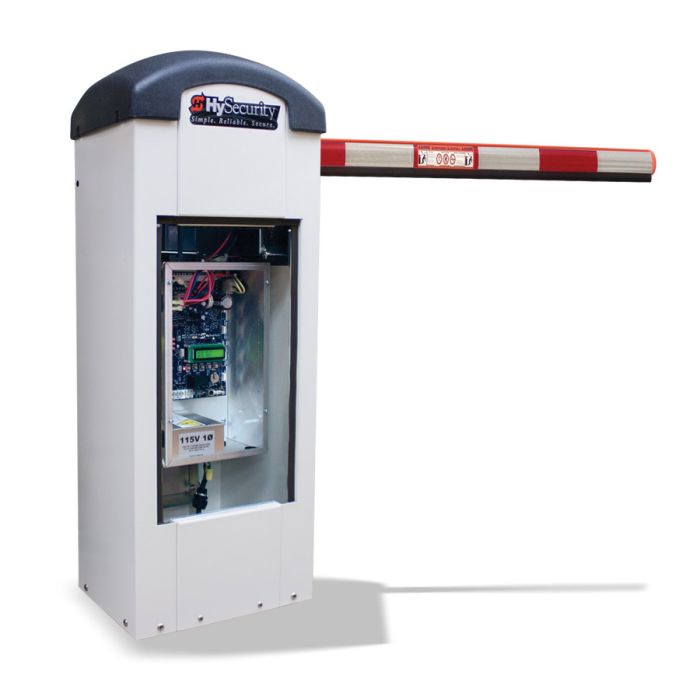

Nice Hysecurity StrongArmPark-DC-14 Barrier Gate Operator
Choose 115VAC, 208-230VAC, or Solar
• Up to 14 ft Arm Length
• 115/208/230VAC or 24VDC Solar Power Source
• 24VDC Operating Voltage
• Open/Closes in 2.5 / 3 / 3.5 Seconds Field Adjustable
• Continuous Duty
• Battery Backup
• 2-Year Limited Manufacturer Warranty
• Entrapment Prevention Devices REQUIRED
• 3-4 Week Lead Time
• MADE IN USA
• No Additional Tariff Fees
From $3,130.00
To $11,718.25
SKU
HYS-strongarmpark-dc-dcs-14-bundle
Product Details
HySecurity's advanced HyProtect™ breakaway barrier arms provide reliable and uninterrupted traffic control in highcapacity corporate parking lots, low clearance garages, gated communities and rental car facilities. StrongArmPark DC easily partners with large and small scale revenue control systems.
Specifications
- Arm Length Maximum: 14'
- Full Open Angle: Adjustable 90° ± 10°
- Duty Cycle: Continuous
- Drive: Electromechanical
- Open/Close Time: Field Adjustable 2.5 / 3 / 3.5 Seconds
- Handing: Left Handing Standard, Right Handing Available
- UPS Battery Backup Cycles: Two 12V, 8Ah batteries. Operators for thousand plus cycles after AC power loss
- Temperature Rating: -13° to 158° F (-25° to 70° C)
- Operating Voltage: 24VDC
- Input Voltage: 115VAC 3A | 208-230VAC 1.5A
- Accessory Power: 12VDC and 24VDC 1A Each
- Communication: RS-232, RS-485
- User Controls: Smart DC Controller with 70+ configurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software
- Relays: One configurable user relay: 250VAC, 10A electromechanical. Optional Hy8Relay™ for 8 additional relay outputs
- Finish: Zinc plated with powder coating
- ETL Listed (UL 325): Usage Class I, II, III, IV
- Cycle Tested: 2 million cycles
- Warranty: 2 years w/product registration
| Brand | Nice HySecurity |
|---|
-
46====
-
Nice HySecurity MX000999 Photo Eye Kit - Reflective / 40'HYS-mx000999 MX000999• Reflective Photo EyeSee More Details
• 24VAC/VDC
• 40' Range
• Includes reflector, mounting bracket and hardware
• 3-4 Week Lead Time
• No Additional Tariff Fees$342.25
46==== -
Nice HySecurity MX001036 Piezo BuzzerHYS-mx001036 MX001036• Alarm, Piezo Buzzer, "warn before operate"See More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$66.00
46==== -
Nice HySecurity MX001404 Pulley - Drive Belt / 36THYS-mx001404 MX001404• 36T Drive Belt Pulley Mounts to Gearbox Input ShaftSee More Details
• Includes Set Screws
• For SlideSmart DC 10F, SwingSmart DC, StrongArmPark DC and WedgeSmart DC models
• 3-4 Week Lead Time
• No Additional Tariff Fees$104.50
46==== -
Nice HySecurity MX001760 Circuit Breaker - 15 AmpHYS-mx001760 MX001760• 15 Amp Circuit Breaker for Solar Powered OperatorSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$17.50
46==== -
Nice HySecurity MX001761 Switch - On/OffHYS-mx001761 MX001761• On/Off SwitchSee More Details
• Double Pole, Single Throw
• 3-4 Week Lead Time
• No Additional Tariff Fees$17.50
46==== -
Nice HySecurity MX001766 Switchable Power Supply Board - 115/230VACHYS-mx001766 MX001766• 115/230 VAC Switchable Power Supply BoardSee More Details
• Toggle Switch to Choose Voltage
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$92.75
46==== -

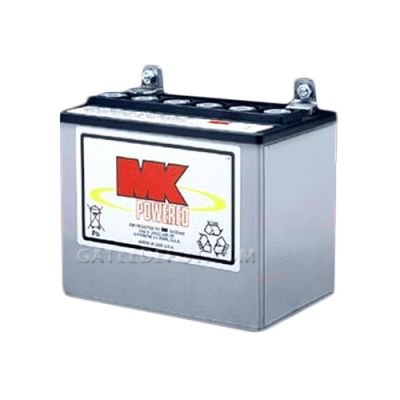

Nice HySecurity MX002008 Battery Kit - 8AhHYS-mx002008 MX002008• Two 12V, 8Ah batteriesSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$125.75
46==== -
Nice HySecurity MX002124 Switch - Internal ResetHYS-mx002124 MX002124• Red Internal Reset SwitchSee More Details
• Mounts to Electrical Enclosure
• Includes two Washers
• 3-4 Week Lead Time
• No Additional Tariff Fees$38.75
46==== -
Nice HySecurity MX002136 KeysHYS-mx002136 MX002136• SlideSmart Spare KeysSee More Details
• Spare set of 2 keys for SlideSmart or StrongArmPark Dc Cover Locks
• 3-4 Week Lead Time
• No Additional Tariff Fees$13.00
46==== -
Nice HySecurity MX002367 Cover - Arm BracketHYS-mx002367 MX002367• Arm bracket cover for HyProtect™ breakaway arm bracket w/Kill SwitchSee More Details
• For StrongArmPark DC, WedgeSmart DC, StrongArm 14F
• 3-4 Week Lead Time
• No Additional Tariff Fees$111.50
46==== -
Nice HySecurity MX002390 Spring AssemblyHYS-mx002390 MX002390• Spring Assembly with rod ends, StrongArmPark DC 14 onlySee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$246.25
46==== -
Nice HySecurity MX002652 Bracket for Wood ArmsHYS-mx002652 MX002652• Bracket attaches to 1" x 4" wood arm typically used in the parking industrySee More Details
• Note: Nice HySecurity does not sell wood arms
• 3-4 Week Lead Time
• No Additional Tariff Fees$134.25
46==== -
Nice HySecurity MX002653 KnobHYS-mx002653 MX002653• Knob for HyProtect™ breakaway bracket arm coverSee More Details
• 1.25 inch diam x 1/4 - 20 stud
• For StrongArmPark DC | StrongArm 14F
• 3-4 Week Lead Time
• No Additional Tariff Fees$7.85
46==== -
Nice HySecurity MX3011 Switch - Hold Open/Hold CloseHYS-mx3011 MX3011• Hold Open/Hold Close SwitchSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$19.75
46==== -
Nice HySecurity MX3037-0 Control BoardHYS-mx3037-0 MX3037-0• Smart DC Controller Board, universal programmingSee More Details
• Note: Must program operator type when installing in operator
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$485.00
46==== -
Nice HySecurity MX3037R-0 Control Board - ReconditionedHYS-mx3037r-0 MX3037R-0• Reconditioned Smart DC Controller Board, universal programmingSee More Details
• Note: Must program operator type and input power type when installing in operator
• Reconditioned parts carry the same Manufacturer Warranty as new replacement parts
• Call for availability
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$403.25
46==== -
Nice HySecurity MX3103 Bumper KitHYS-mx3103 MX3103• Bumper Replacement KitSee More Details
• Includes two physical stop bumpers and adjustment screws
• 3-4 Week Lead Time
• No Additional Tariff Fees$127.00
46==== -
Nice HySecurity MX3104 Hardware KitHYS-mx3104 MX3104• Hardware kit for HyProtectâ„¢ breakaway arm bracketSee More Details
• Includes nylon and steel bolts, lock washers and nylon nuts
• Breakaway bracket sold separately
• 3-4 Week Lead Time
• No Additional Tariff Fees$23.25
46==== -
Nice HySecurity MX3114-01 Articulating Arm - 8' ClearanceHYS-mx3114-01 MX3114-01• Articulating arm assembly with bumper and bracketSee More Details
• Vehicle clearance from base of operator to bottom bumper side of arm is 8 ft.
• Overhead height (total) is 8.5 ft.
• Overall arm (lane) length is 10 ft.
• Note: Contains StrongArmPark DC specific chassis bracket
• 3-4 Week Lead Time
• No Additional Tariff Fees$660.00
46==== -
Nice HySecurity MX3114-02 Articulating Arm - 9' ClearanceHYS-mx3114-02 MX3114-02• Articulating arm assembly with bumper and bracketSee More Details
• Vehicle clearance from base of operator to bottom bumper side of arm is 9 ft.
• Overhead height (total) is 9.5 ft.
• Overall arm (lane) length is 10 ft.
• Note: Contains StrongArmPark DC specific chassis bracket
• 3-4 Week Lead Time
• No Additional Tariff Fees$720.00
46==== -
Nice HySecurity MX3125 Cover KitHYS-mx3125 MX3125• StrongArmPark top cover kitSee More Details
• Includes rotomolded top cap and mounting screws
• 3-4 Week Lead Time
• No Additional Tariff Fees$136.75
46==== -
Nice HySecurity MX3126 Cover Kit - Breakaway BracketHYS-mx3126 MX3126• HyProtect™ breakaway bracket cover kitSee More Details
• Includes rotomolded arm cover and attachment knob
• For StrongArm 14
• 3-4 Week Lead Time
• No Additional Tariff Fees$104.50
46==== -
Nice HySecurity MX3219 Arm Target SensorHYS-mx3219 MX3219• Target proximity sensor for arm home position monitoringSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$36.00
46==== -
Nice HySecurity MX3270 Gearbox w/ OilHYS-mx3270 MX3270• StrongArmPark gearbox with oilSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$549.00
46==== -
Nice HySecurity MX3292 Panel - Front AccessHYS-mx3292 MX3292• Replacement front access panelSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$114.50
46==== -
Nice HySecurity MX3299 AssemblyHYS-mx3299 MX3299• Assembly includes physical stop lever with target magnet and LH/RH labelsSee More Details
• StrongArmPark DC and WedgeSmart DC
• 3-4 Week Lead Time
• No Additional Tariff Fees$293.00
46==== -
Nice HySecurity MX3431 Remote Power Supply KitHYS-mx3431 MX3431• Remote Power Supply Kit for Smart DC solar models onlySee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$230.50
46==== -
Nice HySecurity MX3543 Pulley - Drive BeltHYS-mx3543 MX3543• 24T drive belt pulley mounts to motor input shaftSee More Details
• 15 mm wide pulley
• Includes set screws
• Note: 15 mm wide pulley replaces early production 9 mm version on StrongArmPark DC
• 3-4 Week Lead Time
• No Additional Tariff Fees$101.00
46==== -
Nice HySecurity MX3544 Belt - DriveHYS-mx3544 MX3544• Gearmotor to gearbox drive belt, 82T, 15 mmSee More Details
• Note: 15 mm wide belt replaces early production 9 mm version
• 3-4 Week Lead Time
• No Additional Tariff Fees$73.00
46==== -
Nice HySecurity MX3555 Cap - Arm EndHYS-mx3555 MX3555• Plastic cap for ends of all Smart DC aluminum barrier arms with flat LED strip and LED coverSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$33.75
46==== -
Nice HySecurity MX3585 Gearbox Motor w/ EncoderHYS-mx3585 MX3585• 24VDC gearbox motor with encoder for StrongArmPark DCSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$489.75
46==== -
Nice HySecurity MX3621 Timing Belt & Motor Shaft Pulley KitHYS-mx3621 MX3621• Timing Belt and Motor Shaft Pulley KitSee More Details
• 15 mm
• Note: Replacement for narrow 8 mm belt and motor shaft pulley on 2014 and older models
• 3-4 Week Lead Time
• No Additional Tariff Fees$153.50
46==== -
Nice HySecurity MX3680 Bracket - Breakaway ArmHYS-mx3680 MX3680• HyProtect™ breakaway arm bracket and mount (MX3557)See More Details
• StrongArmPark DC and WedgeSmart DC
• 3-4 Week Lead Time
• No Additional Tariff Fees$307.25
46==== -
Nice HySecurity MX3796 Circuit Breaker - 5AHYS-mx3796 MX3796• Circuit Breaker, 5ASee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$18.50
46==== -
Nice HySecurity MX3990 Through-Beam Photo Eye Kit - 65'HYS-mx3990 MX3990• Wired through beam photo eye kit with 65 ft rangeSee More Details
• Wired, 6-35VDC, 12-24VAC
• Mounting bracket and hardware included
• 3-4 Week Lead Time
• No Additional Tariff Fees$210.00
46==== -
Nice HySecurity MX4050 Bracket - Breakaway ArmHYS-mx4050 MX4050• HyProtect™ breakaway arm bracket with kill switch and harnessSee More Details
• Kill switch prevents barrier arm operation after arm strike
• StrongArmPark DC and WedgeSmartDC
• 3-4 Week Lead Time
• No Additional Tariff Fees$434.50
46==== -
Nice HySecurity MX4104 Latch Lock w/ KeyHYS-mx4104 MX4104• Latch lock with key for StrongArmPark DCSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$58.00
46==== -
Nice HySecurity MX4122 Harness - LED Arm Lights & Kill SwitchHYS-mx4122 MX4122• Flexible wire harness connects to the LED arm lights and kill switchSee More Details
• For use on StrongArmPark DC operators with kill switch, built after 4/15/17
• 3-4 Week Lead Time
• No Additional Tariff Fees$149.50
46==== -
Nice HySecurity MX4124-12 Flexible Lights - 12'HYS-mx4124-12 MX4124-12• Red LED light strand for 12 ft aluminum oval barrier armSee More Details
• For StrongArmPark DC | StrongArm 14F
• 3-4 Week Lead Time
• No Additional Tariff Fees$150.25
46==== -
Nice HySecurity MX4124-14 Flexible Lights - 14'HYS-mx4124-14 MX4124-14• Red LED light strand for 14 ft aluminum oval barrier armSee More Details
• For StrongArmPark DC | StrongArm 14F
• 3-4 Week Lead Time
• No Additional Tariff Fees$182.75
46==== -
Nice HySecurity MX4182-09 Oval Aluminum Arm - 9'HYS-mx4182-09 MX4182-09• Arm Assembly, Aluminum, Oval, 9 ftSee More Details
• For operators with kill switch built after June 2017
• Includes LED light strip with UV stabilized cover and bumper
• Note: Mounting bracket and harness not included
• 3-4 Week Lead Time
• No Additional Tariff Fees$401.25
46==== -
Nice HySecurity MX4182-10 Oval Aluminum Arm - 10'HYS-mx4182-10 MX4182-10• Arm Assembly, Aluminum, Oval, 10 ftSee More Details
• For operators with kill switch built after June 2017
• Includes LED light strip with UV stabilized cover and bumper
• For StrongArmPark DC | StrongArm 14F | Wedgesmart
• Note: Mounting bracket and harness not included
• 3-4 Week Lead Time
• No Additional Tariff Fees$420.75
46==== -
Nice HySecurity MX4182-12 Oval Aluminum Arm - 12'HYS-mx4182-12 MX4182-12• Arm Assembly, Aluminum, Oval, 12 ftSee More Details
• For operators with kill switch built after June 2017
• Includes LED light strip with UV stabilized cover and bumper
• For StrongArmPark DC | StrongArm 14F
• Note: Mounting bracket and harness not included
• 3-4 Week Lead Time
• No Additional Tariff Fees$476.50
46==== -
Nice HySecurity MX4182-14 Oval Aluminum Arm - 14'HYS-mx4182-14 MX4182-14• Arm Assembly, Aluminum, Oval, 14 ftSee More Details
• For operators with kill switch built after June 2017
• Includes LED light strip with UV stabilized cover and bumper
• For StrongArmPark DC | StrongArm 14F
• Note: Mounting bracket and harness not included
• 3-4 Week Lead Time
• No Additional Tariff Fees$508.00
46==== -
Nice HySecurity MX4402 Kill Switch KitHYS-mx4402 MX4402• Kill switch sensorSee More Details
• For StrongArmPark DC | StrongArm 14F
• 3-4 Week Lead Time
• No Additional Tariff Fees$32.00
46==== -
Nice HySecurity MX4621 Hy5B™ 2.0 Loop DetectorHYS-mx4621 MX4621• Improved loop detector module with digital interface to SmartCNX and all other HySecurity controllersSee More Details
• Automatically sets sensitivity
• Automatically compensates for gate movement
• Advanced loop diagnostics
• Note: CNX operators not compatible with MX4125 vehicle detector
• 3-4 Week Lead Time
• No Additional Tariff Fees$232.00
