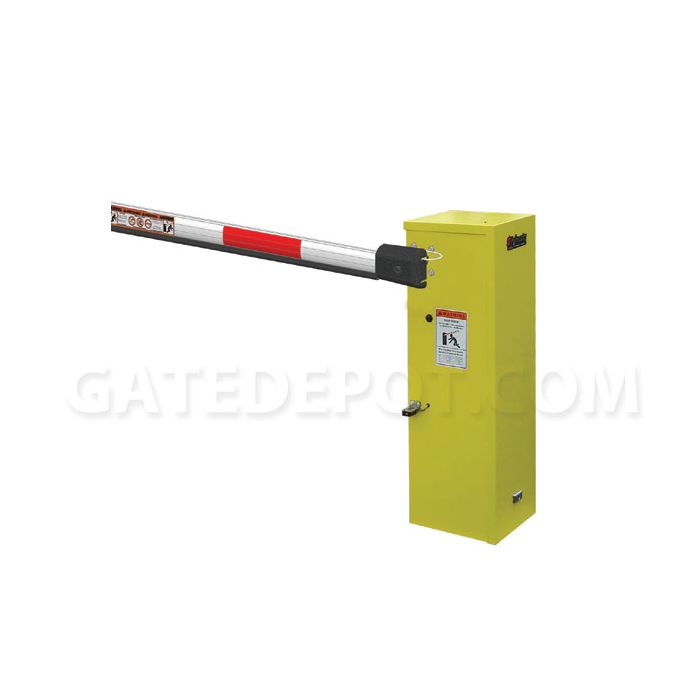

Nice Hysecurity STRONGARM-14F Barrier Gate Operator - 14'

StrongArm 14F, 20, 28, 36 feature strong uni-body 10 gauge welded and zinc plated steel chassis with keyed T-lock protecting all electrical controls and parts. Arm will remain vertical when held open.

Fast model – StrongArm 14F speeds a 10 to 14 ft arm open to a full 90° in just 2 seconds. Operator comes standard with lightweight, oval, aluminum arm with lights and bumper and HyProtect™ breakaway arm bracket, plus a kill switch, which stops arm motion after vehicle strike.

DC Power Supply (UPS models only) The Uninterruptible DC Power Supply provides up to 300 cycles UPS backup after an AC power loss. Retain full functionality during an AC power outage using HySecurity's advanced DC Power Supply with HyCharger DC™, a powerful 50A three stage charger, custom built for continuous duty and long battery life. The DC Power Supply is a separate insulated and ventilated enclosure containing two sealed maintenance free AGM 110Ah, 12VDC batteries. Available in single phase only: Low voltage: 115V 50/60Hz (requires 30A branch circuit) or High voltage: 208-230V 50/60Hz (requires 15A branch circuit). Be certain to order the correct DC Power Supply voltage model as chargers are not field convertible.

Optional AC Power Supply with HyInverter™ AC provides UPS battery backup for 208-230VAC single-phase barrier arms, providing up to 300 cycles after an AC power loss.

The operator's normal duty cycle and the actual number of gate cycles available from battery depends upon gate resistance to travel, cycle length, battery size, state of charge, and health, ambient temperature, accessory power draw and frequency of gate cycles during power outage.

Wood arms up to 14 ft (4.3 m) maximum.

Specifications

• Arm Length: Up to 14'
• Full Open Angle: 90°
• Duty Cycle: 2,000 cycles/day
• Horsepower: 3/4hp
• Drive: Hydraulic
• Open/Close Time: 2s open/3s close
• Left or right
• Temperature Rating: -40° to 158° F
• 1 Phase Power: 115/208/230V 60Hz, 110/220 50Hz - 50Hz voltages are Special Order
• 3 Phase Power: 220/380V 50Hz, 208/230/460V 60Hz - 50Hz voltages are Special Order
• UPS 1 Phase Power Only: 115V 60/50Hz, 23A or 208/230V 60/50Hz, 11.5A - 50Hz voltages are Special Order
• Communication: RS-232, RS-485
• User Controls: Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and display or a PC using S.T.A.R.T. software
• Relays: Three configurable user relays: one 30VDC, 3A solid state and two 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs
• Finish: Zinc plated with yellow powder coating
• Listed to UL: Usage Class I, II, III, IV
• Warranty: 5 year

See Installed Options Brochure at the top of the Manuals & Brochure section for Installed Option Descriptions
