Miller Edge SM-101 Signature Module - T3 Monitored Plugs

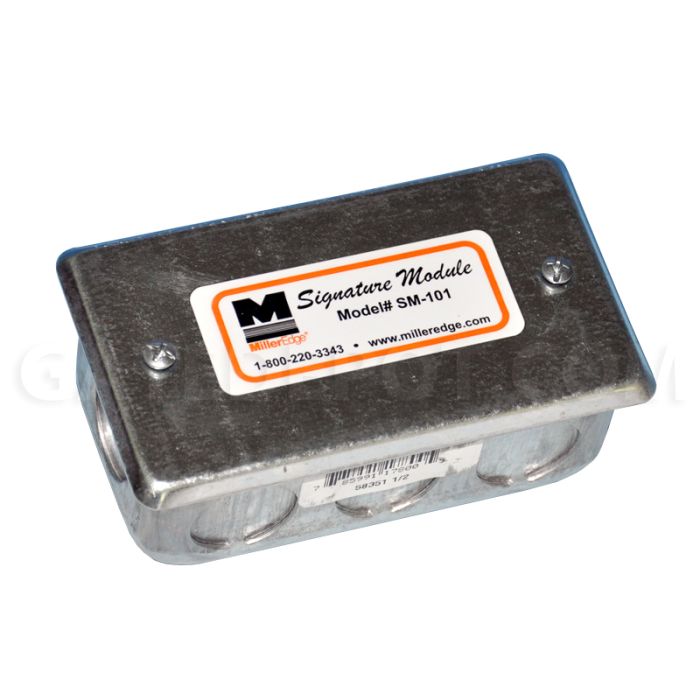

• Signature Module for T3 Monitored Plugs
• Includes JB-03
MPN:
SM-101
$93.00
SKU
MLE-sm-101
Product Details

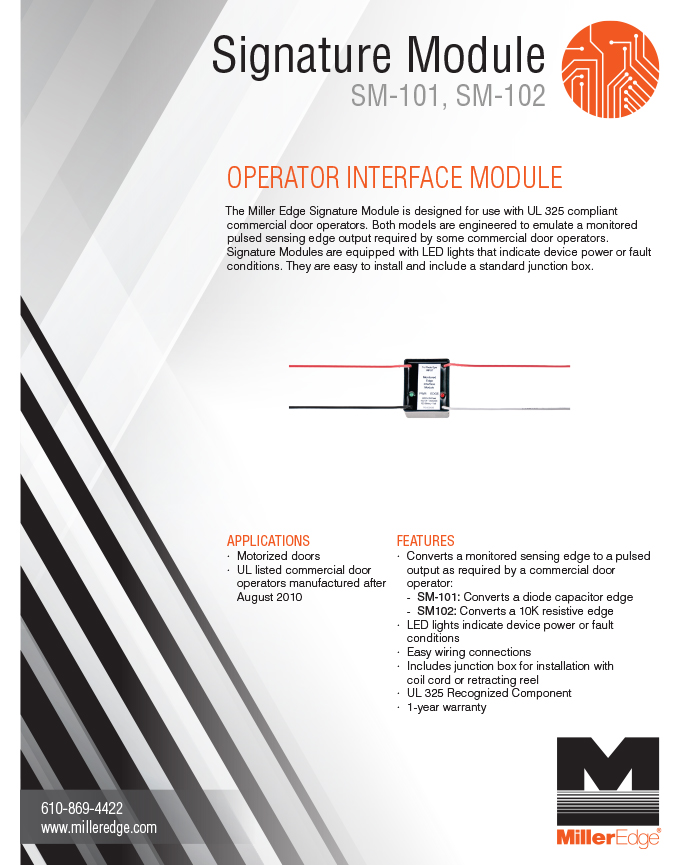

The Miller Edge Signature Module is designed for use with UL 325 compliant commercial door operators. Both models are engineered to emulate a monitored pulsed sensing edge output required by some commercial door operators. Signature Modules are equipped with LED lights that indicate device power or fault conditions. They are easy to install and include a standard junction box.
APPLICATIONS
- Motorized doors
- UL listed commercial door operators manufactured after August 2010
FEATURES
- Converts a monitored sensing edge to a pulsed output as required by a commercial door operator:
- SM-101: Converts a diode capacitor edge
- SM102: Converts a 10K resistive edge
- LED lights indicate device power or fault conditions
- Easy wiring connections
- Includes junction box for installation with coil cord or retracting reel
- UL 325 Recognized Component
- 1-year warranty
PERFORMANCE:
- Operating Temperature: -35°C to +70°C (-31°F to +158°F)
RB-G-RX10 Receiver
ELECTRICAL:
- Power Source: Photo eye input
- Current Consumption: 30 mA
- Input: Diode capacitor (monitored) sensing edge
- Output: Pulsed (monitored)
- Relay Rating: Class 2 device
PHYSICAL:
- Dimensions:
- Module: 1.8"H x 1.25"W x 0.8"D (46 x 32 x 20 mm)
- Junction box: 1.5"H x 4"W x 2"D (38 x 102 x 51 mm)
- Enclosure Material:
- Module: ABS plastic with epoxy
- Junction box: Galvanized steel
- LED Indicators: Power, fault
- Degree of Protection:
- Module: NEMA 4
- Junction box: UL Listed
