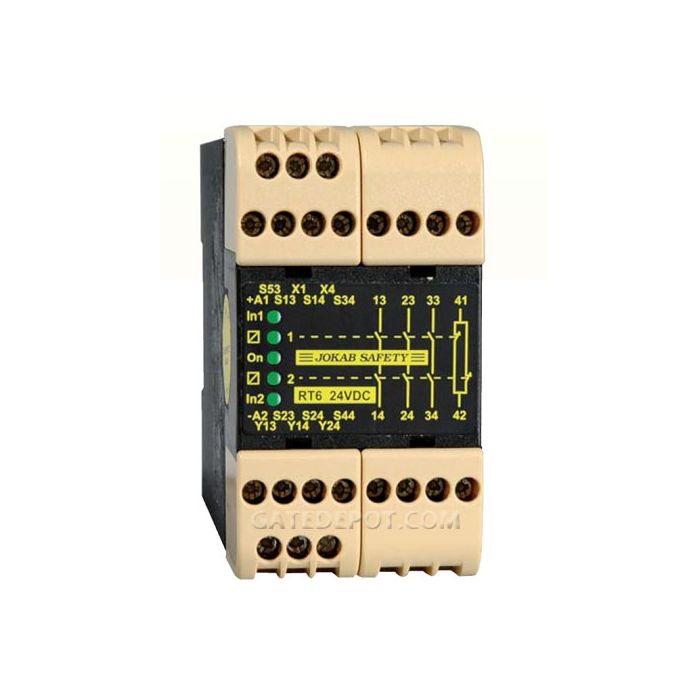

Miller Edge RT6 Universal Relay Controller - 4-Wire

Then choose the RT6 universal relay to supervise both your safety devices and the internal safety of your machinery. In addition you can select the safety level required for each installation. All this is possible because the RT6 has the most versatile input option arrangement available on the market. Many other relays can therefore be replaced by the RT6.

The relay also comes with other options such as manual or automatic reset. Manual supervised reset can be used for gates and other safety devices that can be passed through. Automatic reset can be used for small hatches, if deemed acceptable from risk assessment.

The RT6 also has information outputs that follow the inputs and outputs of the relay. These outputs will for example indicate if a gate is open or closed and if the safety relay needs to be reset. The RT6 is designed with a minimum amount of components thus keeping both production costs and component acquisitions to a minimum. Choose the RT6 to simplify your safety circuits and reduce your costs.

Applications:

• Emergency Stops
• Light Curtains
• Three Position Devices
• Interlocked Gates/Hatches
• Magnetic Switches
• Light Beams
• Safety Mats
• Contact Strips
• Foot-Operated Switches

Features:

• Five input options
• Single or dual channel input
• Manual supervised or automatic reset
• Test input for supervision of external contactors
• Width 45 mm
• LED indication of supply, inputs, outputs, short-circuit and low voltage level
• 3 NO/1 NC relay outputs
• Two voltage free transistor information outputs
• 24 VDC
• 24, 48, 115 or 230 VAC
• Quick release connector blocks
