Miller Edge MWRT12B Transmitter & Receiver Kit

Avoid visible cords and reels with this non-monitored wireless system. Designed to provide a wireless signal transmission from the sensing edge to motor controls, this three-channel edge system has on-board diagnostics for easy setup and troubleshooting. The transmitter comes standard with a NEMA 4 weather-proof enclosure and both the receiver and transmitter have a compact design that allow for easy troubleshooting via the transparent cases. The transmitter is available with an optional audible alarm that activates when the battery has 25% of its life remaining.

APPLICATIONS

• Motorized doors
• Automated gates

FEATURES

• Easy to configure
• Non-monitored system ideal for operators manufactured prior to:
• Doors: August 2010
• Gates: January 2016
• Transmitter built to endure rugged environments
• 2-year warranty

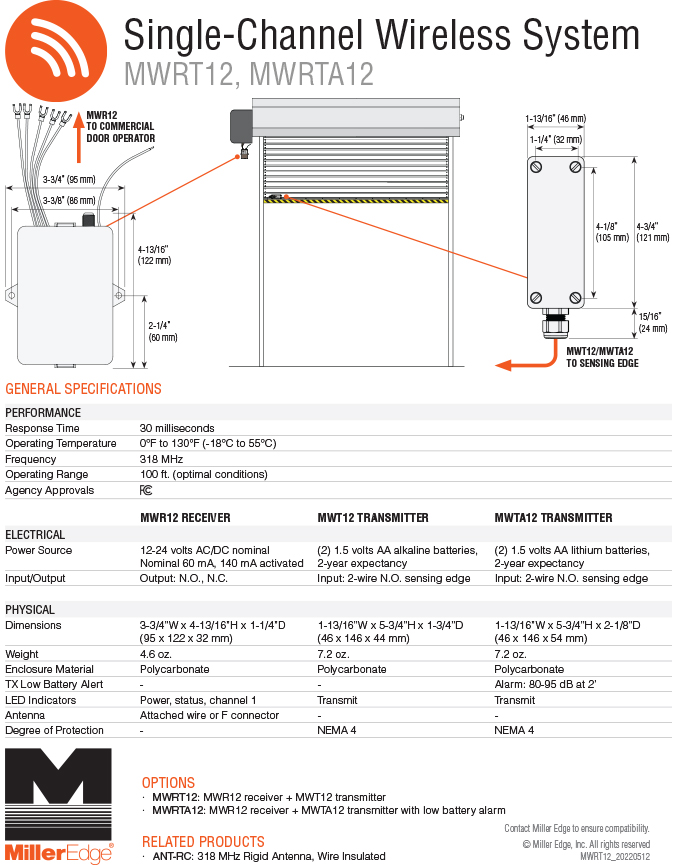

PERFORMANCE:

• Response Time 30 milliseconds
• Operating Temperature 0°F to 130°F (-18°C to 55°C)
• Frequency 318 MHz
• Operating Range 100 ft. (optimal conditions)

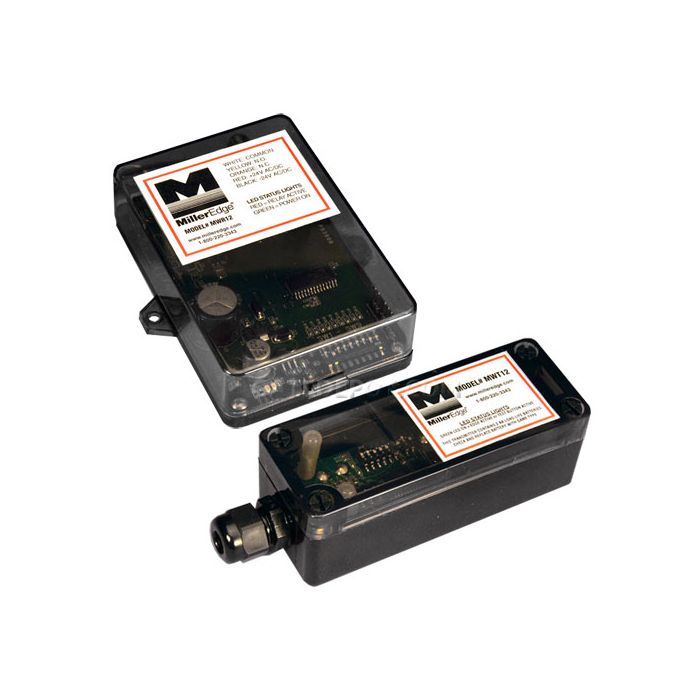

MWR12 Receiver

ELECTRICAL:

• Power Source: 12-24 volts AC/DC nominal, Nominal 60 mA, 140 mA activated
• Input/Output Output: N.O., N.C.

PHYSICAL:

• Dimensions: 3-3/4"W x 4-13/16"H x 1-1/4"D (95 x 122 x 32 mm)
• Enclosure Material: Polycarbonate
• LED Indicators: LED Indicators Power, status, channel 1
• Antenna: Attached wire or F connector

MWT12 Transmitter

ELECTRICAL:

• Power Source: (2) 1.5 volts AA alkaline batteries, 2-year expectancy
• Input/Output Output: Input: 2-wire N.O. sensing edge

PHYSICAL:

• Dimensions: 1-13/16"W x 5-3/4"H x 1-3/4"D (46 x 146 x 44 mm)
• Enclosure Material: Polycarbonate
• LED Indicators: Transmit
• Degree of Protection: NEMA4
