Miller Edge MT21 Sensing Edge - Solid Cover

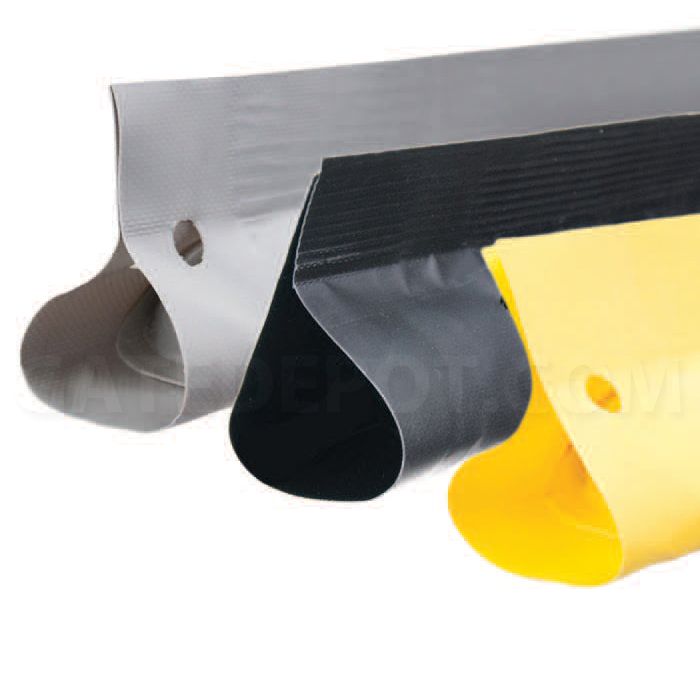

The MT sensing edge product line consists of three standard models: MT21 (2"W x 1"H), MT22 (2"W x 2"H), and MT33 (3"W x 3"H). When touched lightly, the sensing edge will send an immediate signal to operator controls to stop and/or reverse door operation. The MT edge switch is covered in a durable vinyl jacket. The top tab inserts between the double-L angle bottoms bars on a rolling door. These sensing edges are flexible and can conform to irregularities in the floor.

APPLICATIONS

• Rolling fire doors
• Rolling steel doors
• Material handling systems

FEATURES

• Optimum size for 2+ inch thick surfaces
• Custom manufactured to user specifications for color, length, and outlet location
• Three standard models: MT21 (2"W x 1"H), MT22 (2"W x 2"H), MT33 (3"W x 3"H)
• 5-6 inch end flaps create a complete seal and can be trimmed for custom fit
• Extended color options including yellow chemical resistant XR5 jacket
• Flexible and will conform to floor irregularities
• Sealed assembly impervious to dust and debris
• Patented Alumaglas™ for superior performance (electric option)
• UL 325 Recognized Component
• 1-year warranty
• Made in USA

• Color: Gray, Black, Yellow, Y/B Stripe, or XR5 (yellow)
• Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
• Max. Length: Electric - 150 ft., Air-Wave - 60 ft., Pneumatic - 18 ft.
• Sensitivity: Nominal 4-8 lbf
• Lead Wire: SJTO, 18 gauge, 2ft. length
• Wire Outlet Location: Universal, left or right
• Electrical Maximum: 24 volt AC or DC, 1/2 amp
• Electrical Configuration: Normally open
• Operating Temperature: Meets or exceeds UL requirement
• Exterior Materials: Heavy duty reinforced PVC
• Contact Element: Alumaglas®
• Agency Approvals: UL 325 Recognized Component
