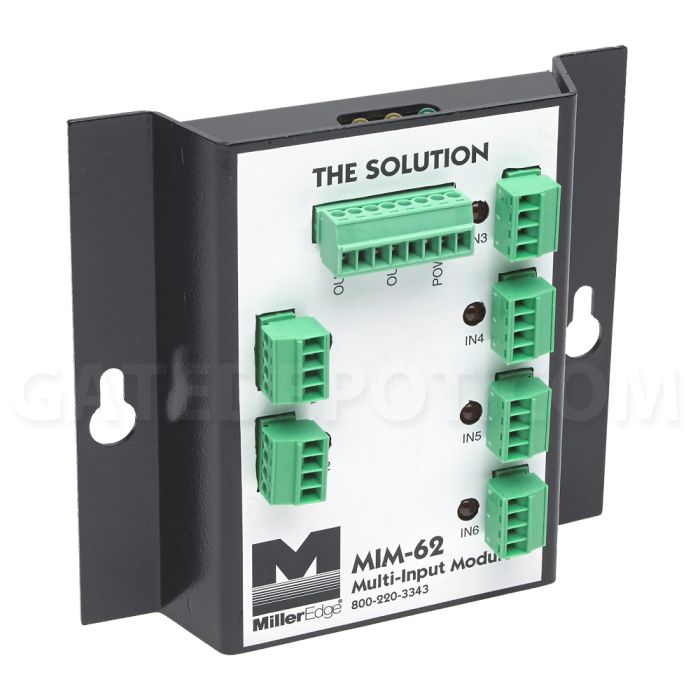

Miller Edge MIM-62 Multi-Input Module

The Solution: Multi-Input Module (MIM) is used to provide a means of connection for multiple monitored external entrapment devices. MIM expands the gate operator board's capacity to accept an additional six monitored safety devices and provides two outputs. Designed for versatility, MIM auto detects normally closed, pulsed, and resistive device interfaces to allow for use with most operator brands. The compact profile simplifies installation by fitting easily within the gate operator cover.

APPLICATIONS

• Automated gates

FEATURES

• Compatible with all common interfaces: 10K, N.C., 2-wire pulsed, and 4-wire pulsed
• Expands gate operator interface six additional inputs for entrapment devices
• Entrapment devices can be assigned to either two outputs for open and close directions
• Meets the 2016 UL 325 requirements for additional entrapment devices
• UL 325 Recognized Component
• 1-year warranty

PERFORMANCE:

• Response Time: 100 ms
• Wake Up Time: <500 ms
• Operating Temperature: -40°C to +60°C (-40°F to 135°F)
• Agency Approvals: UL 325 Recognized Component

ELECTRICAL:

• Power Source: 10-24 volts AC/DC
• Current Consumption: 100 mA maximum
• Relay Rating: 1 A @ 24 volts DC
• External Device Power: Pass-through incoming
• Inputs: 6 - 2-wire pulsed, 4-wire pulsed, 10K, normally closed (monitored)
• Outputs: 2 - 2-wire pulsed, 4-wire pulsed, 10K, normally open (monitored)

PHYSICAL:

• Dimensions 4"W x 4.75"H x 1"D (10.16 x 12 x 2.54 cm)
• Housing Material: Steel
• LED Indicators: Input status (6), power (1), output A/B active (2)
• Degree of Protection: Class 2 device
