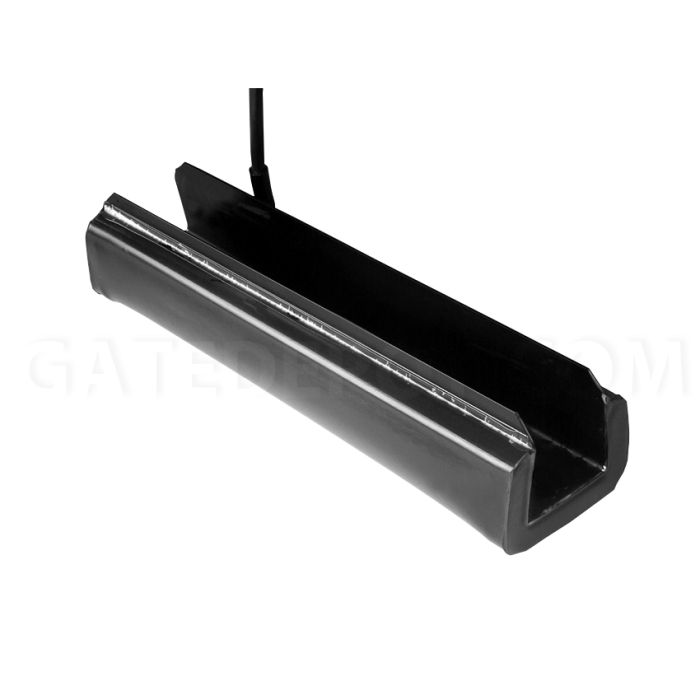

Miller Edge MGS20 Sensing Edge

The MGR20 and MGS20 sensing edges offer three-sided activation for an added measure of protection. They directly mount to a 2 inch post by wrapping around the leading edge of a gate; no mounting channel required. MGR20 is designed for round applications and MGS20 is designed for square applications. Both models are custom manufactured to user specifications for color, length, and outlet location.

APPLICATIONS

• Motorized gates - Slide and swing

FEATURES

• 3-sided activation
• Easy to install
• Optimum size for 2 inch gate posts
• No mounting channel needed
• Standard and custom lengths available
• Mounts vertically or horizontally
• Sealed assembly impervious to dust and debris
• Custom manufactured to user specifications for color, length, and outlet location
• Patented Alumaglas™ for superior performance (electric option)
• UL 325 Recognized Component
• 1-year warranty
• Made in USA

• Color: Black or Yellow
• Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
• Max. Length: 10 ft. (additional shipping charges apply to lengths over 8 ft.)
• Sensitivity: Nominal 4-7 lbf
• Lead Wire: SJTO, 18 gauge, 2ft. length
• Wire Outlet Location: Universal, left or right
• Electrical Maximum: 24 volt AC or DC, 1/2 amp
• Electrical Configuration: Normally open
• Operating Temperature: -30 °F to 155 °F (-34 °C to 68 °C)
• Exterior Materials: Flexible PVC
• Contact Element: Alumaglas®
• Agency Approvals: UL 325 Recognized Component
