Miller Edge ME123 Sensing Edge
Choose 2 or 4 Wire
Choose Left, Right, or Universal Outlet Locations
• For Doors From 1-1/2" - 2" Thick
• Priced per foot
• Call for Air-wave, Pneumatic, and Dummy configurations
• Minimum order 4 Feet
MPN:
ME123
$30.15
SKU
MLE-me123
Product Details
The ME123 sensing edge is the industry's go-to, two inch extruded edge designed to fit a variety of door applications. It is custom manufactured to specified color and length. When touched lightly, ME123 will send an immediate electrical signal to operator controls to stop and/or reverse gate operation. This slide-in style edge features a double-T mounting design which provides superior stability.
APPLICATIONS
- Sectional doors
- Horizontal sliding doors
- Scissor lifts
- Conveyor systems
- Presses
FEATURES
- Easy to install
- Optimum size for 2 inch thick surfaces
- Double-T design for added stability
- Mounts vertically or horizontally
- Sealed assembly impervious to dust and debris
- Various mounting channel options
- Custom manufactured to user specifications for color, length, and outlet location
- Patented Alumaglas™ for superior performance (electric option)
- UL 325 Recognized Component
- 1-year warranty
- Made in USA

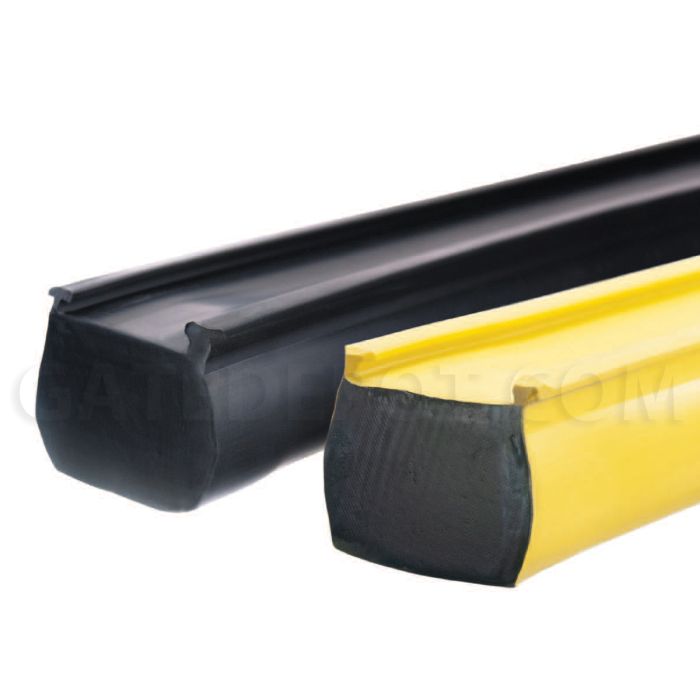

- Color: Black or Yellow
- Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
- Max. Length: Electric - 100 ft., Air-Wave - 60 ft., Pneumatic - 18 ft.
- Sensitivity: Nominal 6-11 lbf
- Lead Wire: SJTO, 18 gauge, 2ft. length, or 22 gauge universal, 2 ft. length
- Wire Outlet Location: Left, right, end, or top or universal end plug
- Electrical Maximum: 24 volt AC or DC, 1/2 amp
- Electrical Configuration: Normally open
- Operating Temperature: Meets or exceeds UL requirement
- Exterior Materials: Flexible PVC
- Contact Element: Alumaglas®
- Agency Approvals: UL 325 Recognized Component
| Manufacturer Part Number | ME123 |
|---|---|
| Brand | Miller Edge |
