Miller Edge ME120 Sensing Edge

ME120 is ideal for a wide variety of applications, from motorized doors and gates to industrial safeguarding on manufacturing equipment. Applications include: along conveyor systems to detect operator reach in, below lifts to protect from pinch points, and on a wide variety of plant equipment where touch-sensitive detection is desired.

Tech Tip: The ME120 sensing edge paired with the ME120-C5 mounting channel creates a "sweep edge" that safeguards the entrapment zone on driveways and curbs along the path of travel below a swinging gate, as defined by UL 325 and ASTM F2200.

APPLICATIONS

• Slide gates
• Swing gate sweep edge
• Rolling shutters
• Commercial motorized doors
• Conveyor systems
• Lift & machinery pinch points
• Machine guarding
• Elevator doors

FEATURES

• Optimum size for 1-1/2 inch gate surfaces
• Standard and custom lengths available
• Easy to install
• Mounts vertically or horizontally
• Sealed assembly impervious to dust and debris
• Various mounting channel options
• Custom manufactured to user specifications for color, length, and outlet location
• Patented Alumaglas™ for superior performance (electric option)
• UL 325 Recognized Component
• 1-year warranty
• Made in USA

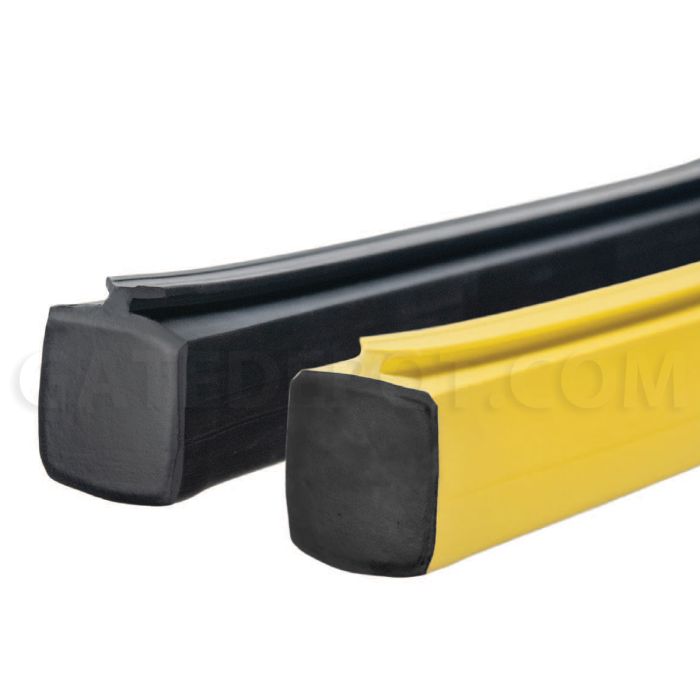

• Color: Black or Yellow
• Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
• Max. Length: Electric - 100 ft., Air-Wave - 60 ft., Pneumatic - 18 ft.
• Sensitivity: Nominal 6-10 lbf
• Lead Wire: SJTO, 18 gauge, 2ft. length
• Wire Outlet Location: Left, right, end, or top
• Electrical Maximum: 24 volt AC or DC, 1/2 amp
• Electrical Configuration: Normally open
• Operating Temperature: Meets or exceeds UL requirement
• Exterior Materials: Flexible PVC
• Contact Element: Alumaglas®
• Agency Approvals: UL 325 Recognized Component
